Siemens 6AV6642-0BA01-1AX1

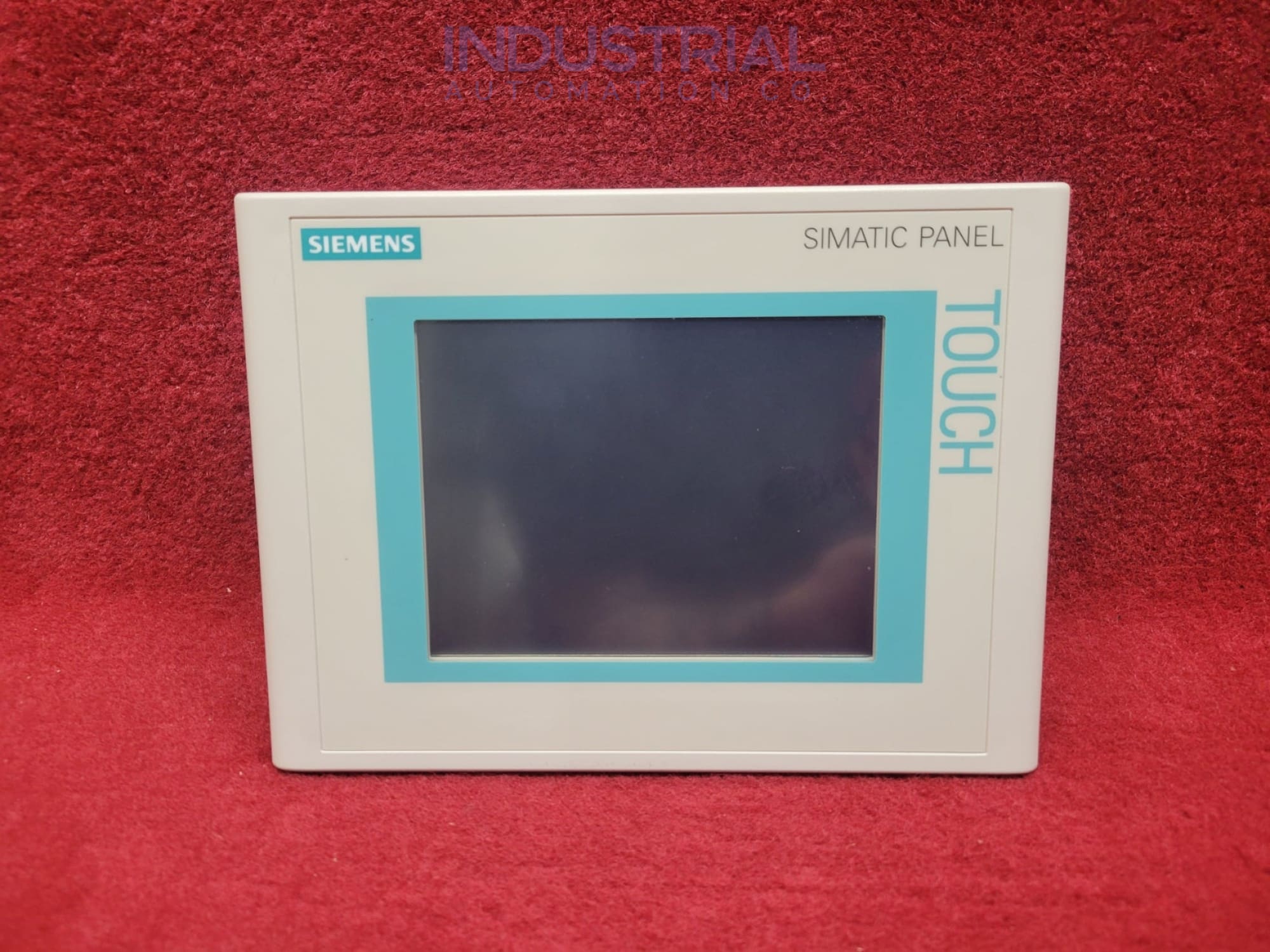

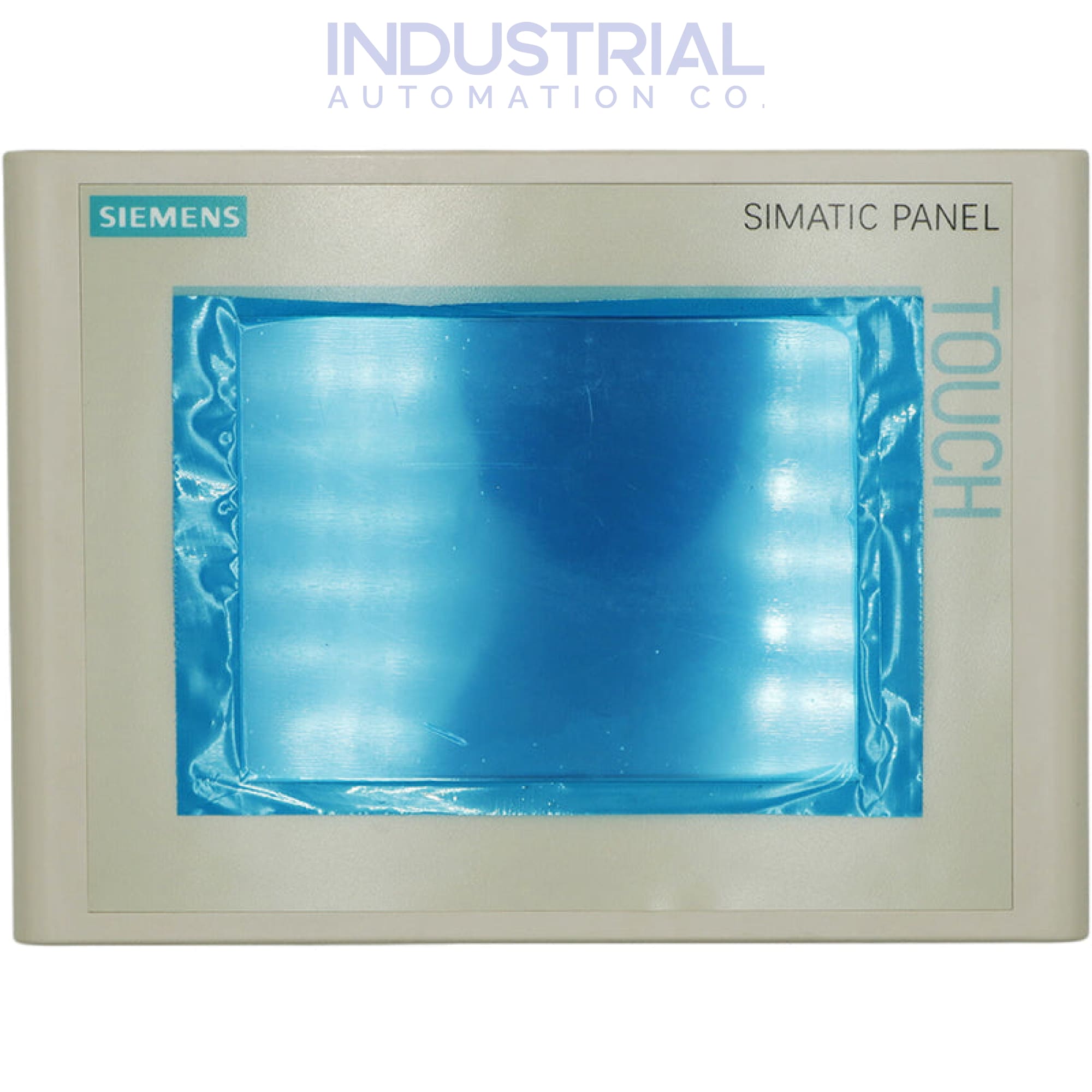

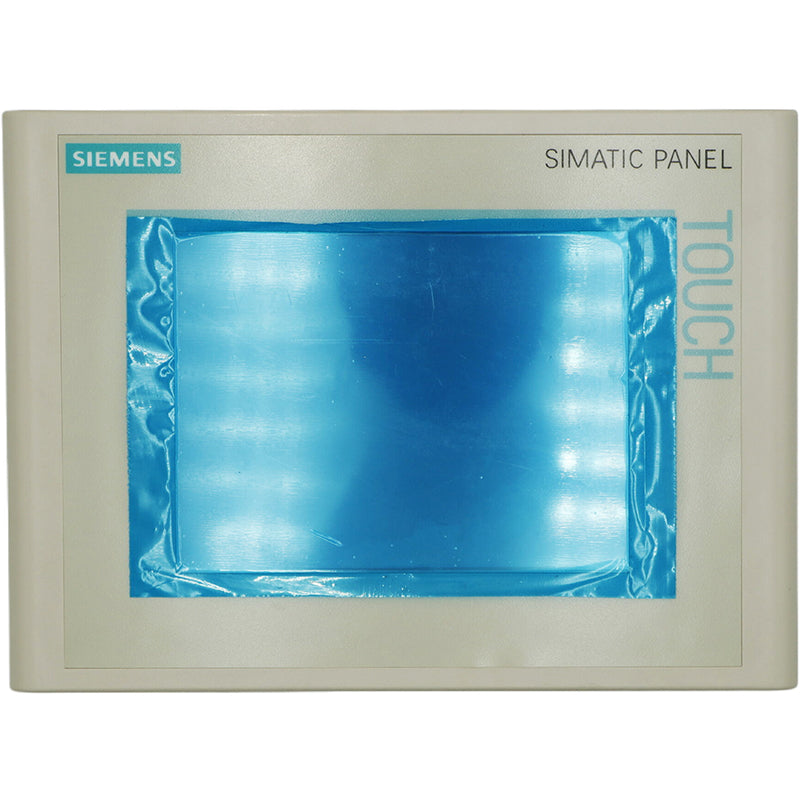

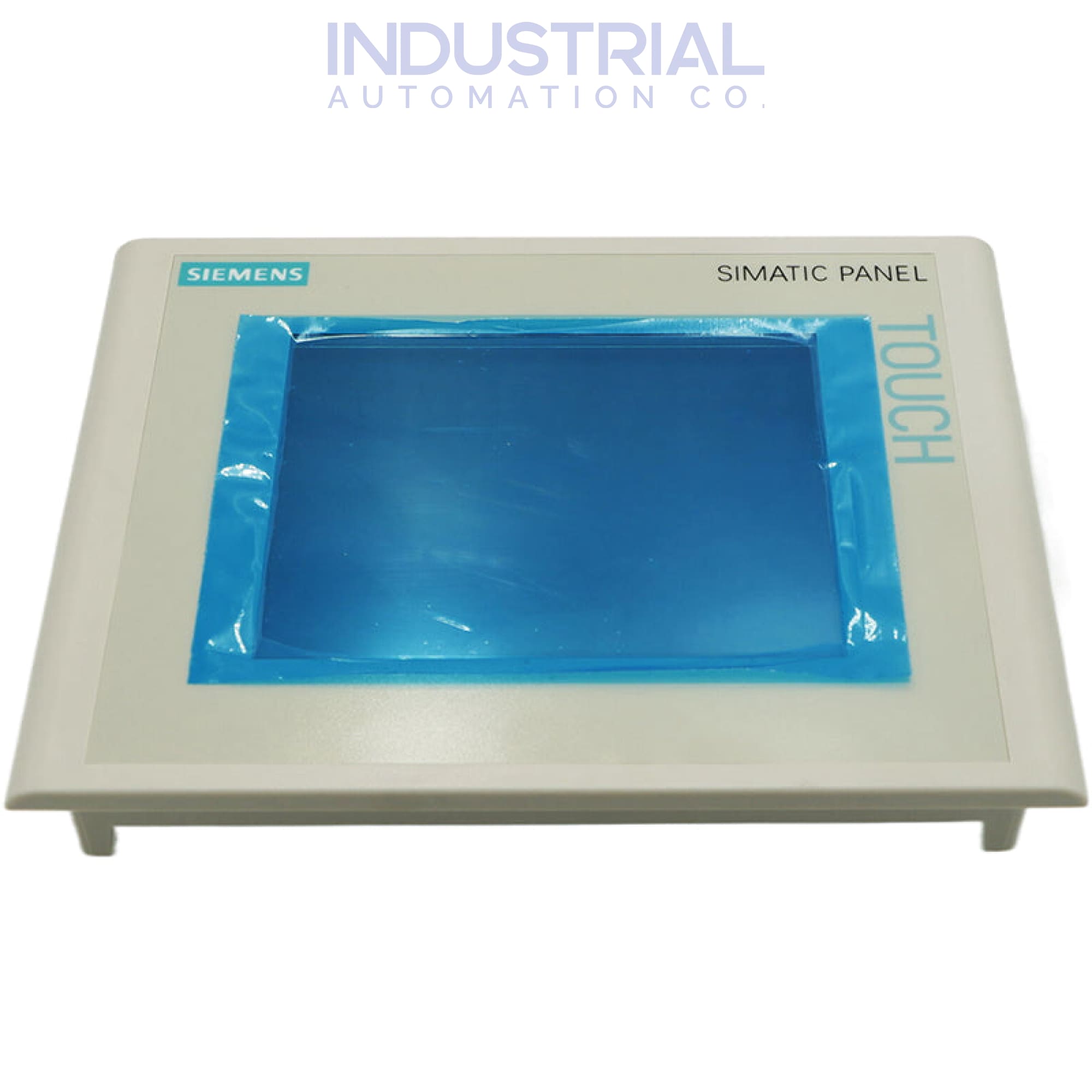

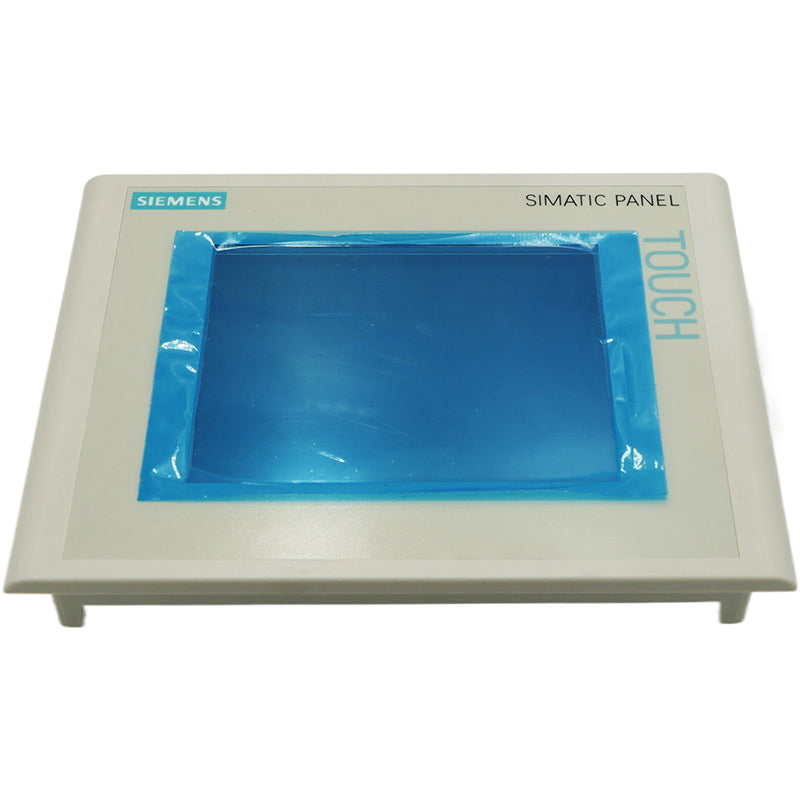

Siemens 6AV6642-0BA01-1AX1 is a SIMATIC TP177B 6-inch HMI touch panel designed for operator control and visualization in industrial automation systems. It features a pixel-graphics STN display with 256 colors and an analog resistive touchscreen for reliable machine interaction.

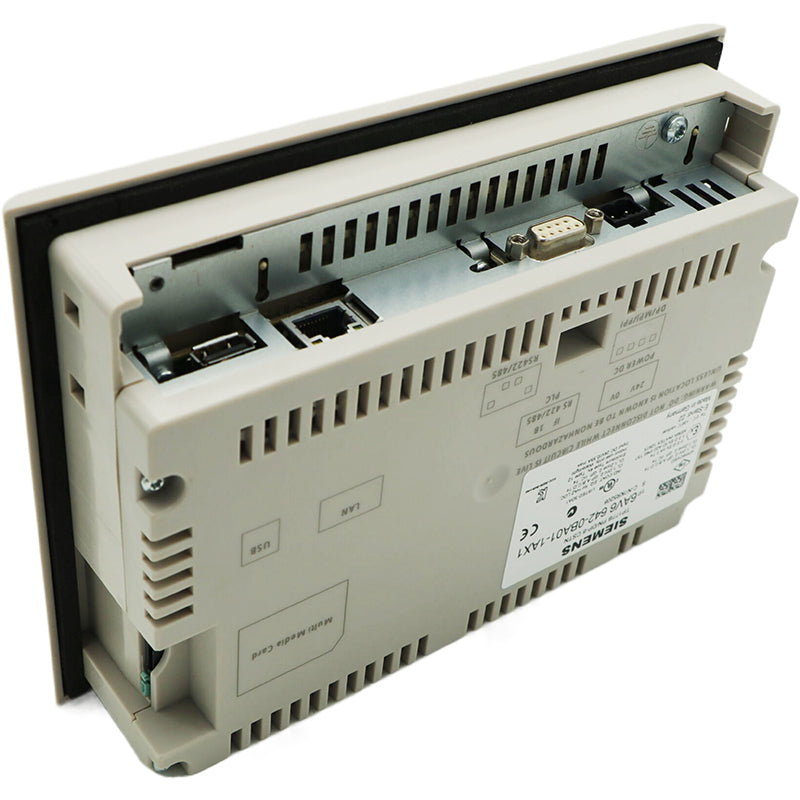

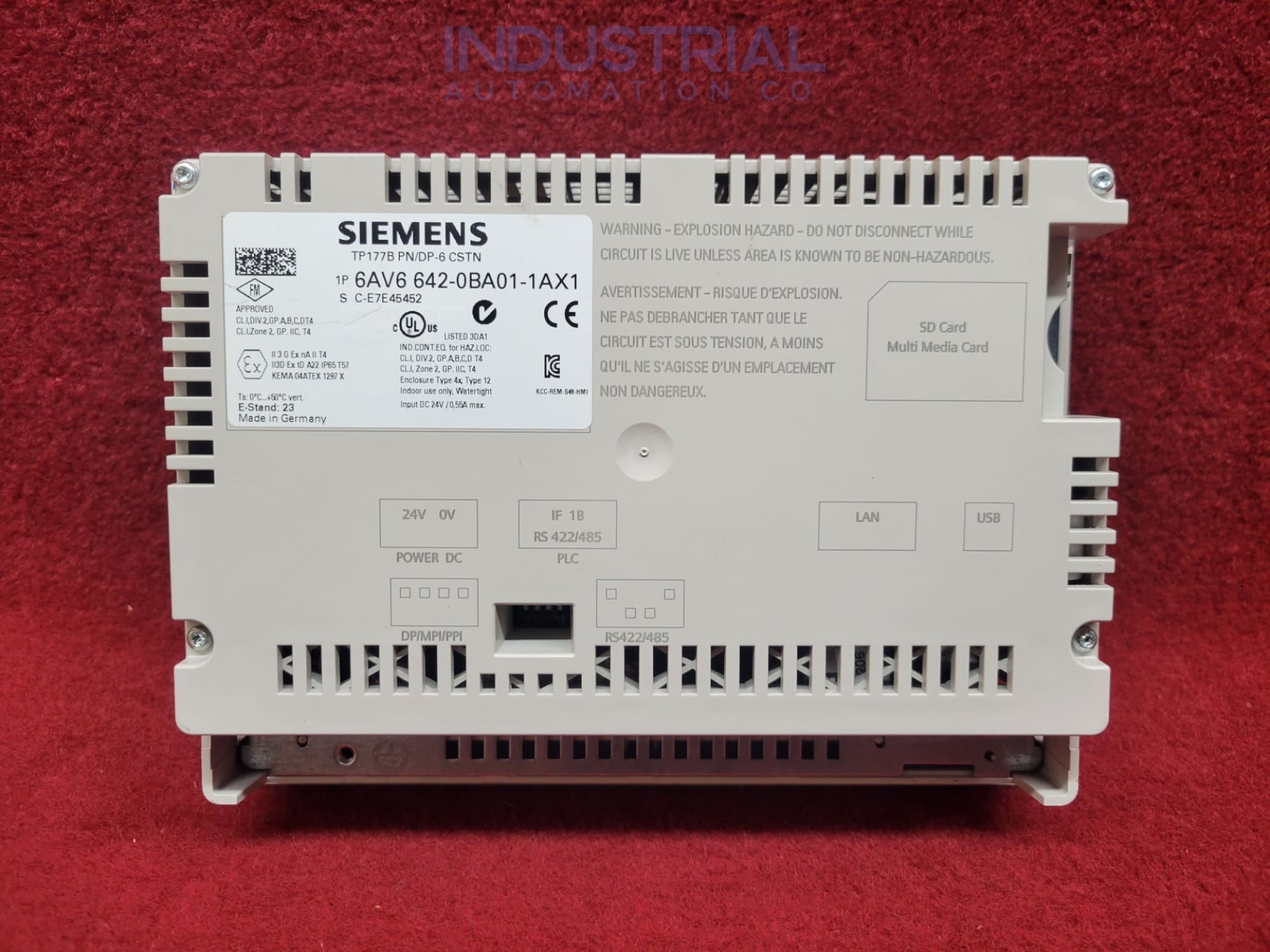

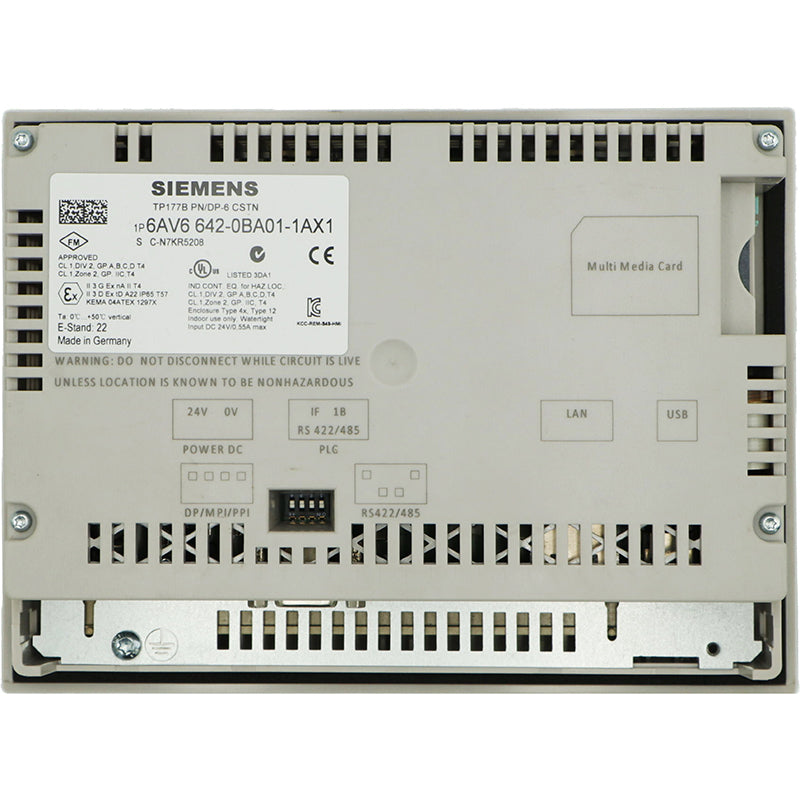

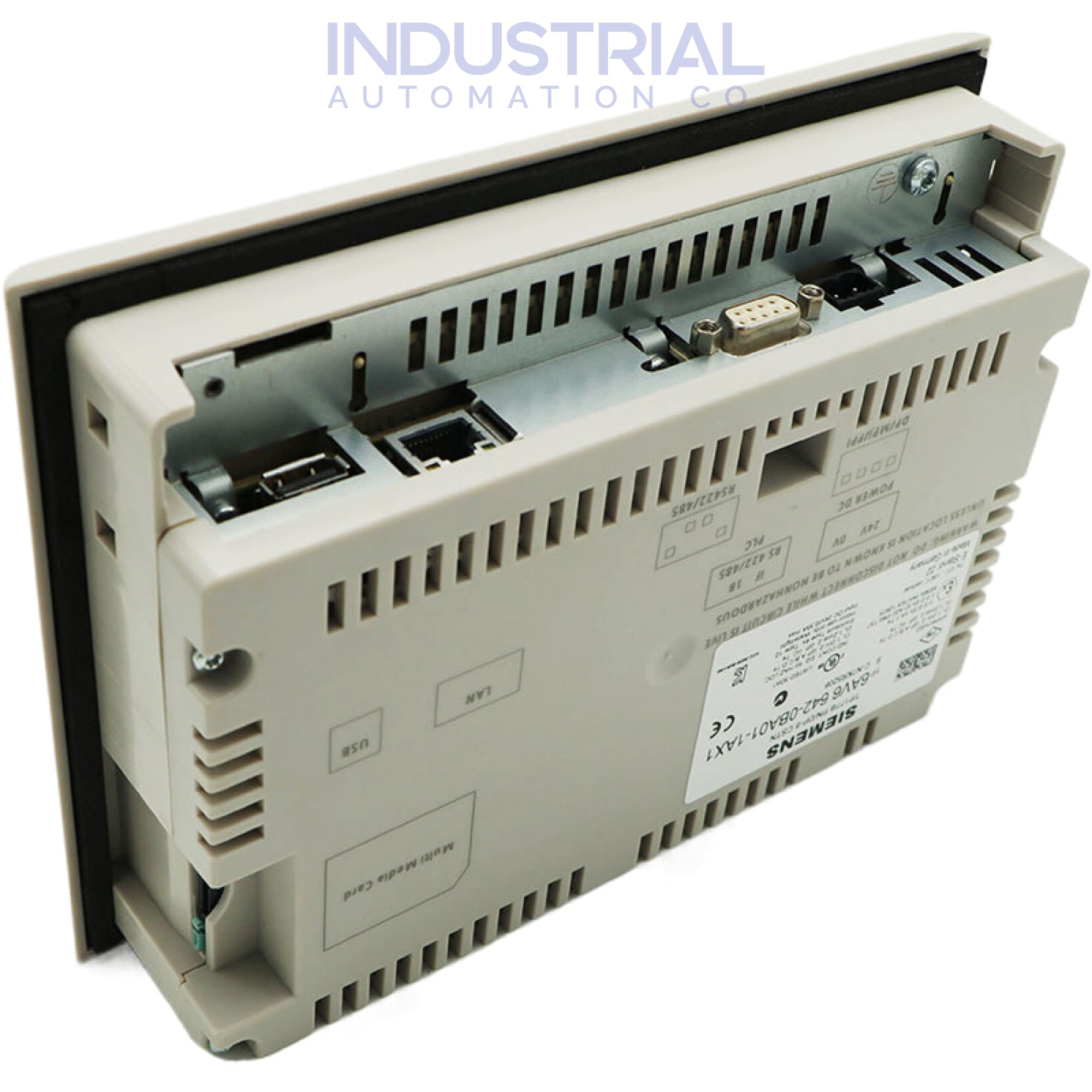

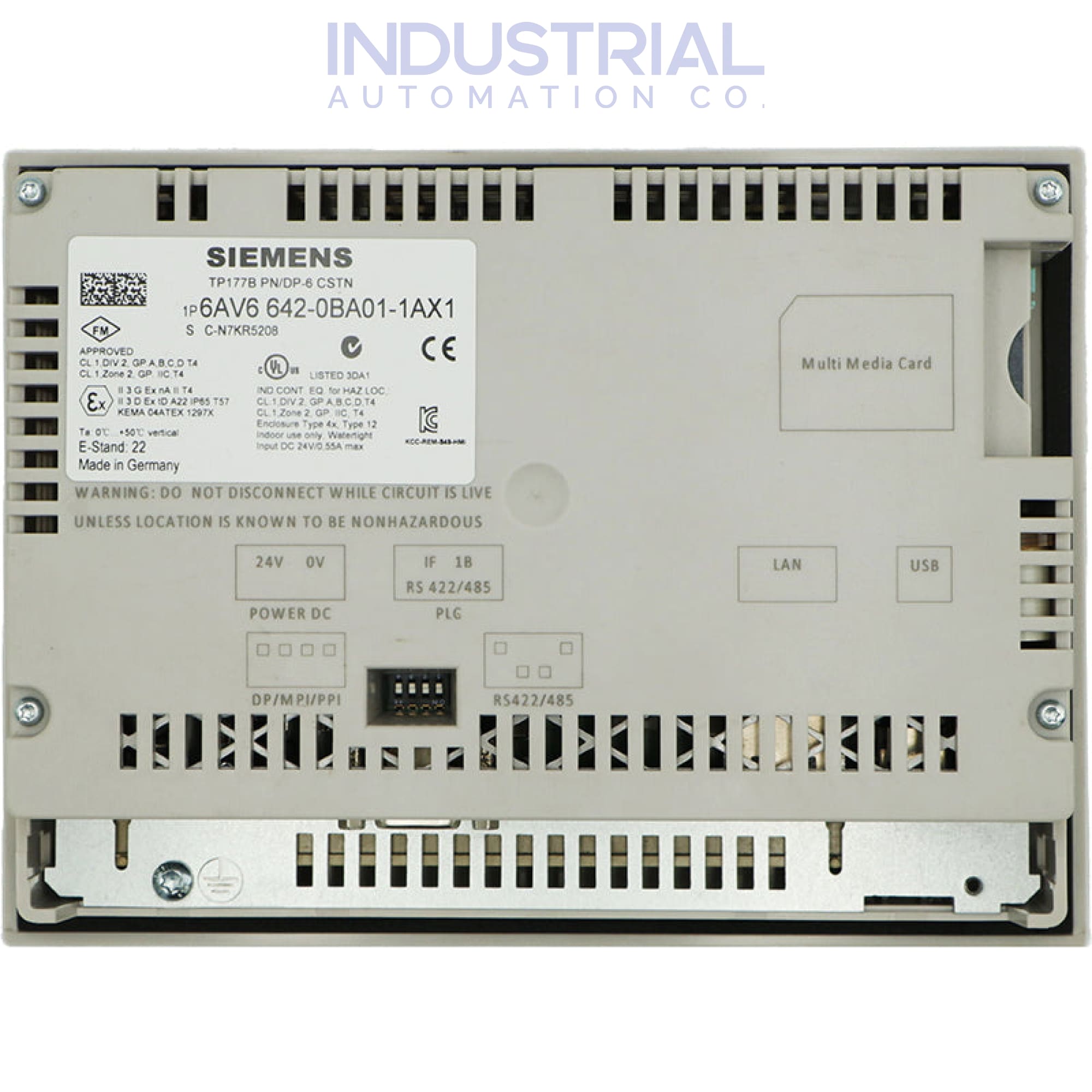

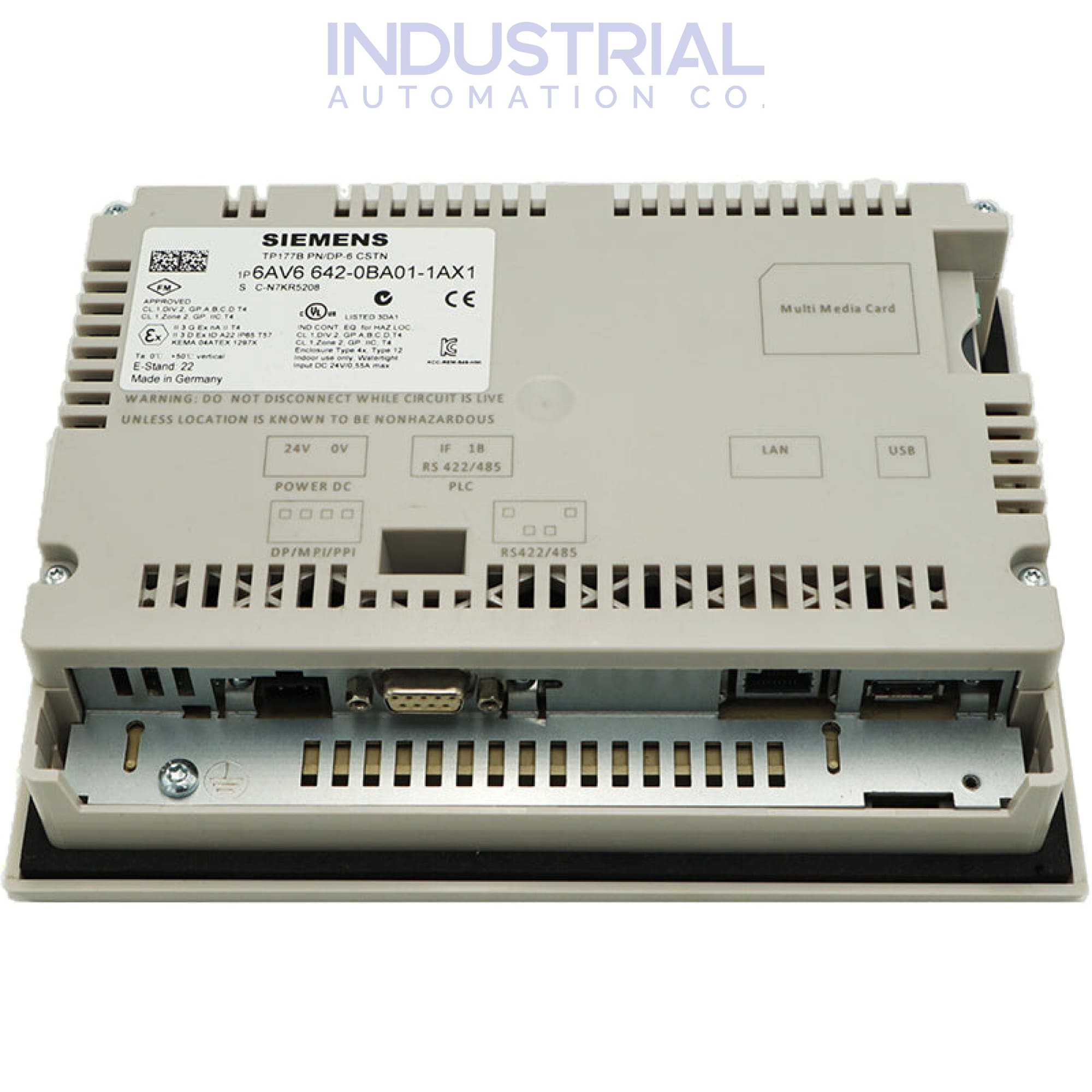

The panel supports MPI and PROFIBUS DP communication and includes RS485, RS422, USB, and Ethernet 10/100 interfaces for flexible system integration. Additional features include a printer interface and an MMC slot for configuration and data storage. The unit is configurable in WinCC flexible 2005 and is commonly used in legacy SIMATIC installations requiring dependable HMI replacement or expansion.

FAQs

What is the Siemens 6AV6642-0BA01-1AX1 used for?
It is a SIMATIC TP177B operator touch panel used for machine and process visualization, allowing operators to monitor status, input commands, and interact with automation systems.

What communication interfaces does it support?
The panel supports MPI and PROFIBUS DP communication and includes RS485, RS422, USB, Ethernet 10/100, and a printer interface for flexible system integration.

Is this product still available?
The model was blocked for new delivery starting January 1, 2015. While no longer manufactured, it remains widely used in existing systems, with spare parts and refurbished units supporting continued operation.

What are the physical dimensions?
Approximate packaging dimensions are 25.3 cm long, 20.2 cm wide, and 8.9 cm high.

What type of display does it use?
It uses a 6-inch STN display capable of 256 colors, optimized for clear operator monitoring and control.
