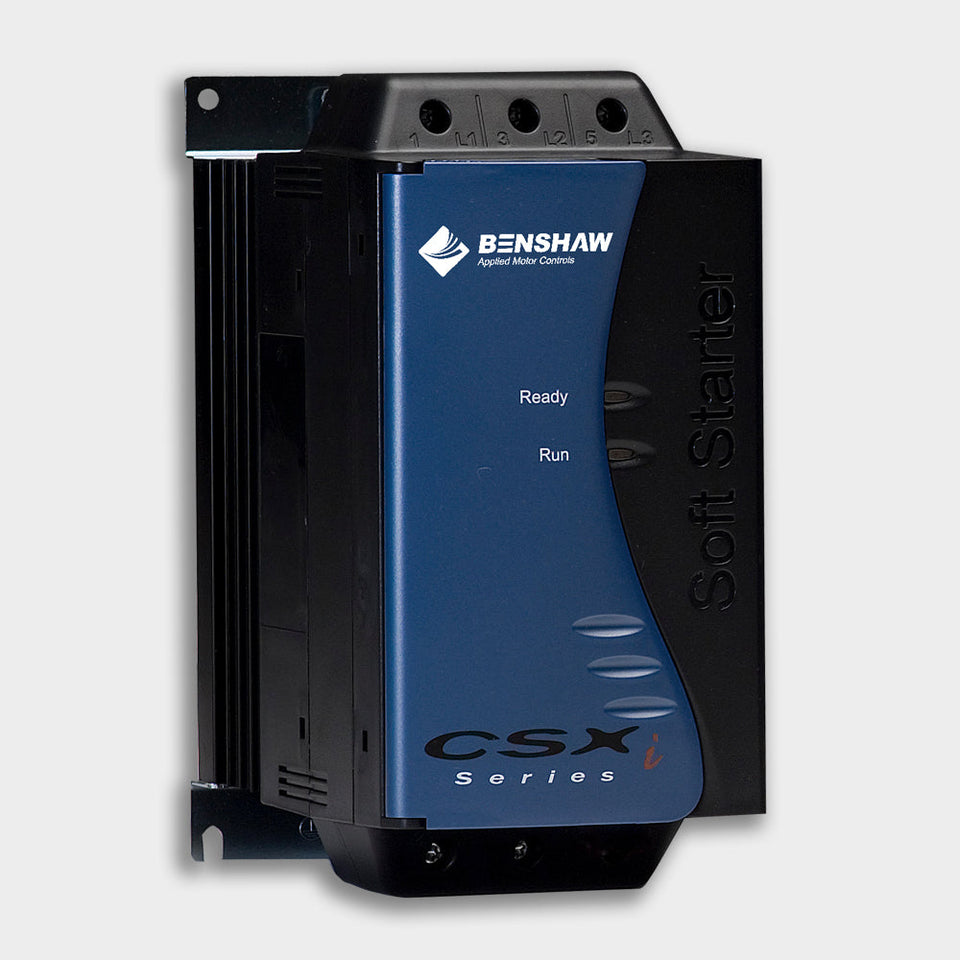

Benshaw CSXi-007-V6-C1
SKU: CSXi-007-V6-C1
21 in stock
Articolo di marca autorizzata: spedizione secondo i tempi del produttore.
- Prezzo di listino
- €494,95
- Prezzo scontato
- €494,95
New
€494,95
In Stock
Description
The Benshaw CSXi-007-V6-C1 is a CSXi series compact soft starter in a protected chassis (open) format, rated 5 HP at 230 V / 10 HP at 460 V / 15 HP at 575 V. The CSXi combines the starter power section and an integral bypass contactor in one compact unit, so no external bypass is required and panel space is minimized.
It provides controlled acceleration and deceleration of three-phase motors, reducing inrush current and mechanical shock, and is ideal for pump and fan applications. The protected chassis design is intended for mounting inside a customer enclosure or motor control center.
Technical Specifications
| Manufacturer | Benshaw |
| Series | CSXi compact soft starters |
| Type | Protected chassis (open) soft starter |
| Ratings | 5 HP at 230 V / 10 HP at 460 V / 15 HP at 575 V |
| Bypass | Built-in internal bypass |
| Typical applications | Pumps, fans, low voltage motor starting |
| Model number | CSXi-007-V6-C1 |
-
Buying Options
-
Description
The Benshaw CSXi-007-V6-C1 is a CSXi series compact soft starter in a protected chassis (open) format, rated 5 HP at 230 V / 10 HP at 460 V / 15 HP at 575 V. The CSXi combines the starter power section and an integral bypass contactor in one compact unit, so no external bypass is required and panel space is minimized.
It provides controlled acceleration and deceleration of three-phase motors, reducing inrush current and mechanical shock, and is ideal for pump and fan applications. The protected chassis design is intended for mounting inside a customer enclosure or motor control center.
Technical Specifications
Manufacturer Benshaw Series CSXi compact soft starters Type Protected chassis (open) soft starter Ratings 5 HP at 230 V / 10 HP at 460 V / 15 HP at 575 V Bypass Built-in internal bypass Typical applications Pumps, fans, low voltage motor starting Model number CSXi-007-V6-C1 -
Specifications
Technical Specifications
Benshaw CSXi Series Low Voltage Soft Starters are compact, easy-to-use standard duty soft starters with built-in motor protection. CSXi soft starters provide greater control for starting and stopping of three phase motors, and, at only 6.5 inches (165mm) deep, are easy to mount in shallow enclosures. Ideal for applications like fans and pumps where you want simple set up and commissioning.
The CSXi soft starter includes built-in bypass in a protected chassis and is standard duty rated for 400% current for 6 seconds, line voltages from 200-575VAC and accepts 120V control voltage.
CSXi soft starters are available for immediate shipment and include Benshaw’s exclusive three-year warranty.
-
