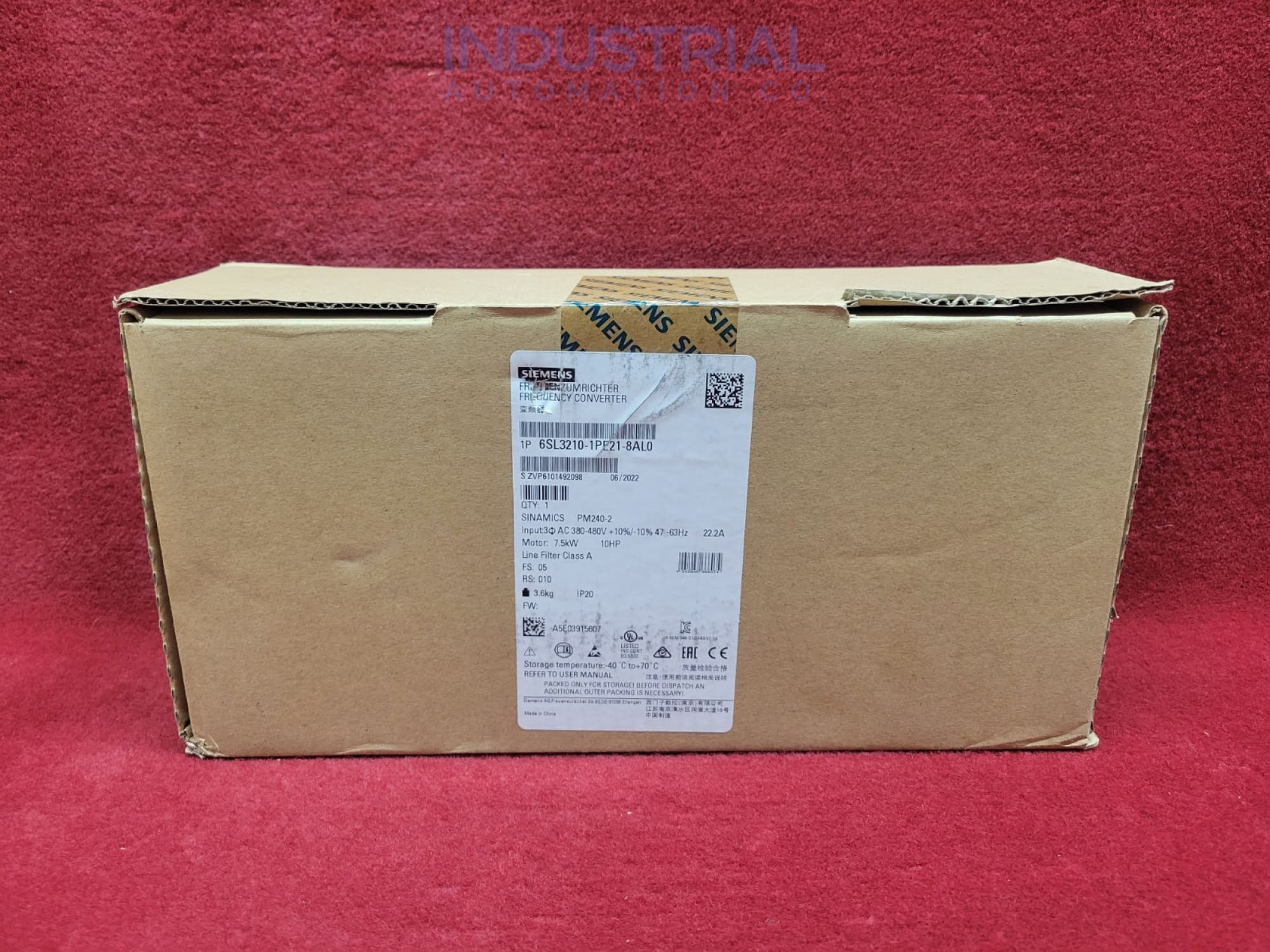

Siemens 6SL3210-1PE21-8AL0
SKU: 6SL3210-1PE21-8AL0-FS
We have 1 in stock
Estimated delivery: September 22nd - September 24th
Order for next-day shipment.
- Regular price
-
$1,374.00
- Sale price
- $1,374.00
New
$1,374
1 in stock
Ships today
Description
The Siemens 6SL3210-1PE21-8AL0 is a SINAMICS PM240-2 power module rated 7.5 kW at low overload (5.5 kW at high overload) for three-phase 380-480 V AC supplies. PM240-2 power modules form the power section of the modular SINAMICS G120 drive system; a separate CU230P-2, CU240 or CU250S control unit mounts on the front to complete a working frequency converter.
The module includes an integrated braking chopper for connection of an external braking resistor and has an integrated Class A line filter. It is used in pump, fan, compressor, conveyor, mixer, and general machine drive applications. Released for use with control unit firmware V4.6 and later.
Technical Specifications
| Product family | SINAMICS G120 / PM240-2 power module |
| Supply voltage | 3 AC 380-480 V +10%/-10%, 47-63 Hz |
| Rated power (low overload) | 7.5 kW (110% for 57 s, 150% for 3 s) |
| Rated power (high overload) | 5.5 kW (150% for 57 s, 200% for 3 s) |
| Braking chopper | Integrated |
| Line filter | Integrated Class A filter |
| Frame size | FSB |
| Dimensions (H x W x D) | 291 x 100 x 165 mm |
| Degree of protection | IP20 |
| Control unit | Not included (requires SINAMICS G120 control unit, firmware V4.6 or later) |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $206/yr+3 yrs → 5 total $183/yr+5 yrs → 7 total $137/yrBEST VALUE+8 yrs → 10 total $103/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SL3210-1PE21-8AL0 is a SINAMICS PM240-2 power module rated 7.5 kW at low overload (5.5 kW at high overload) for three-phase 380-480 V AC supplies. PM240-2 power modules form the power section of the modular SINAMICS G120 drive system; a separate CU230P-2, CU240 or CU250S control unit mounts on the front to complete a working frequency converter.
The module includes an integrated braking chopper for connection of an external braking resistor and has an integrated Class A line filter. It is used in pump, fan, compressor, conveyor, mixer, and general machine drive applications. Released for use with control unit firmware V4.6 and later.
Technical Specifications
Product family SINAMICS G120 / PM240-2 power module Supply voltage 3 AC 380-480 V +10%/-10%, 47-63 Hz Rated power (low overload) 7.5 kW (110% for 57 s, 150% for 3 s) Rated power (high overload) 5.5 kW (150% for 57 s, 200% for 3 s) Braking chopper Integrated Line filter Integrated Class A filter Frame size FSB Dimensions (H x W x D) 291 x 100 x 165 mm Degree of protection IP20 Control unit Not included (requires SINAMICS G120 control unit, firmware V4.6 or later) -
Part Number Breakdown
Part number reference — 6SL3210-1PE21-8AL0
Sinamics POWER Module PM240-2 with BUILT IN CL. A FILTER with BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 5,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 7,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB Protection IP20 WITHOUT Control Unit and Panel APPROVED FOR CU FIRMWARE- Versi
Official Siemens catalog description.
Product family SINAMICS G120C Power Converter Series SINAMICS G120C Type drive converter Fault codes (603)
Troubleshooting reference for the SINAMICS G120 Converter (CU250S-2):
- Fault A01006 — Firmware update for DRIVE-CLiQ component required
- Fault A01007 — POWER ON for DRIVE-CLiQ component required
- Fault A01009 — CU: Control module overtemperature
- Fault A01016 — Firmware changed
- Fault A01017 — Component lists changed
- Fault A01019 — Writing to the removable data medium unsuccessful
- Fault A01020 — Writing to RAM disk unsuccessful
- Fault A01021 — Removable data medium as USB data storage medium from the PC used
- Fault A01028 — Configuration error
- Fault A01035 — ACX: Parameter back-up file corrupted
- Fault A01045 — Configuring data invalid
- Fault A01049 — It is not possible to write to file
See all 603 fault codes for this series →
