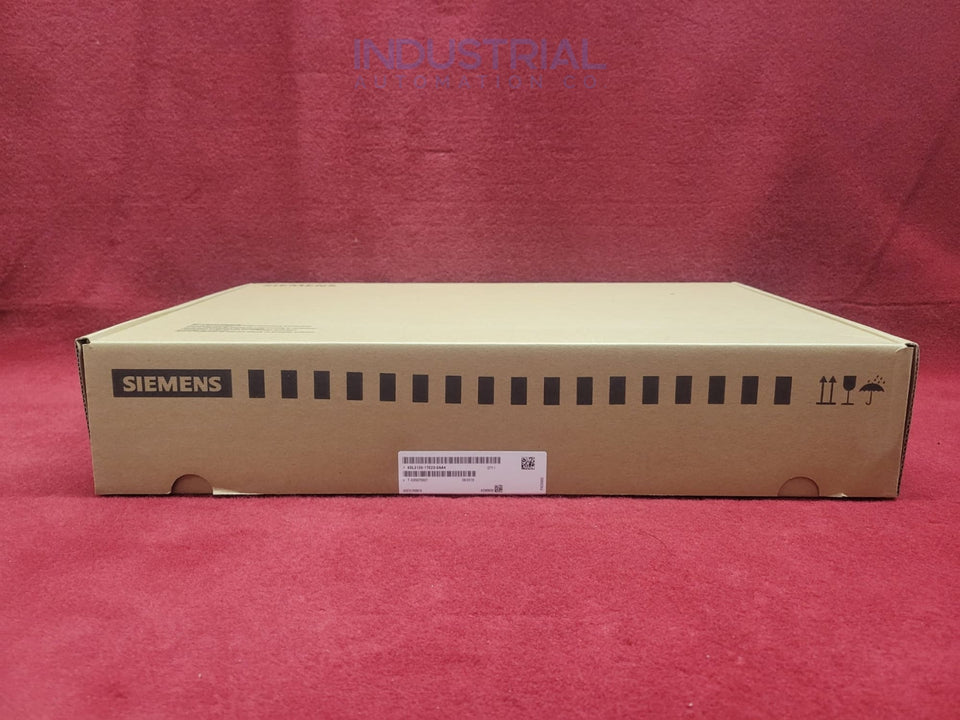

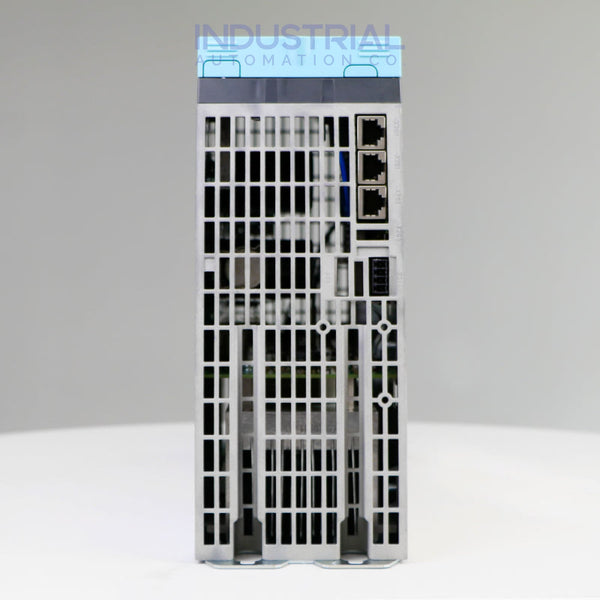

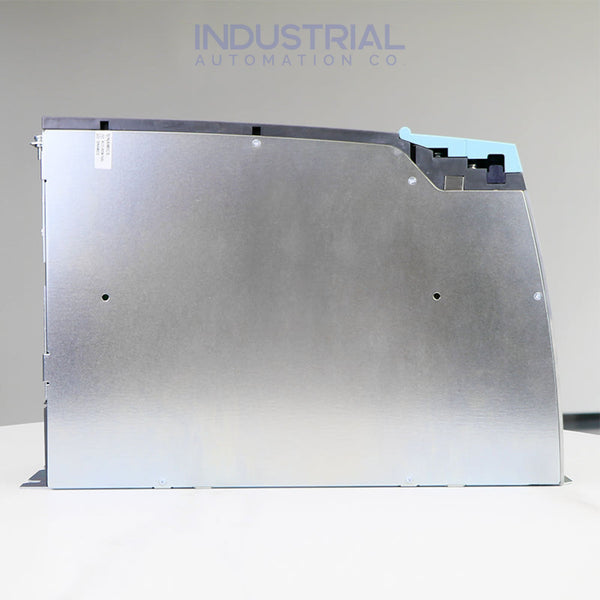

Siemens 6SL3120-1TE23-0AA4
SKU: 6SL3120-1TE23-0AA4-FS
We have 2 in stock
Estimated delivery: June 25th - June 27th
Order for next-day shipment.
- Regular price
-
$1,590.00
- Sale price
- $1,590.00
New
$1,590
2 in stock
Ships today
New Open Box
Available
Request a quote
IAC Certified Refurbished
$1,390
2 in stock
Ships today
Description

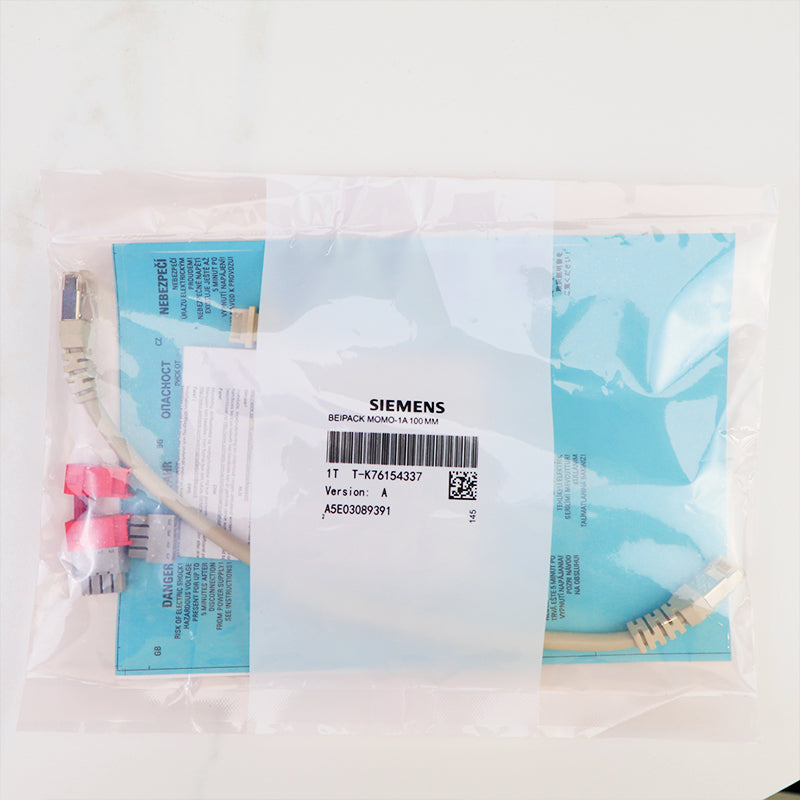

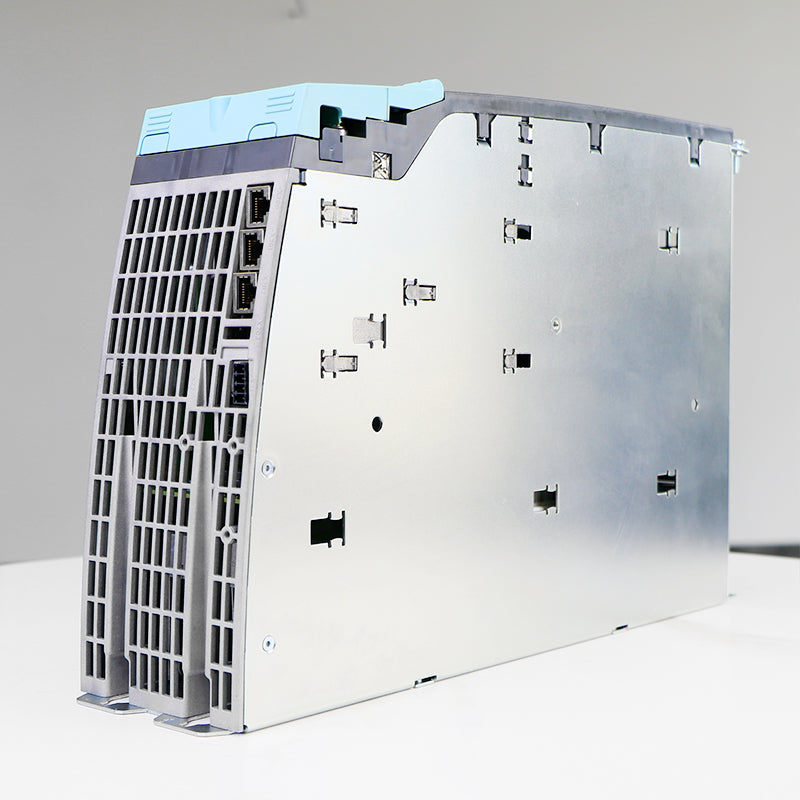

SINAMICS S120 Single Motor Module input: 600 V DC output: 400 V 3 AC, 30 A type of construction: booksize internal air cooling optimized pulse patterns and support of the extended Safety Integrated functions incl. DRIVE-CLiQ cable
What role does this module play in a SINAMICS drive system?
This module functions as a line or power module within a SINAMICS S120 multi axis drive system, supplying controlled power to connected motor modules.
Is this module intended for single axis or multi axis applications?
It is designed primarily for multi axis servo systems where centralized power distribution is required.
Does this module support regenerative energy handling?
Yes, SINAMICS line modules manage power flow and regenerative braking energy within the system.
Is this module compatible with other SINAMICS S120 components?
It is designed specifically for SINAMICS S120 systems and must be matched correctly with compatible motor and control modules.
Can this module operate as a standalone unit?
No, it must be installed as part of a complete SINAMICS S120 drive configuration.
-
Buying Options
-
Description
SINAMICS S120 Single Motor Module input: 600 V DC output: 400 V 3 AC, 30 A type of construction: booksize internal air cooling optimized pulse patterns and support of the extended Safety Integrated functions incl. DRIVE-CLiQ cable
What role does this module play in a SINAMICS drive system?
This module functions as a line or power module within a SINAMICS S120 multi axis drive system, supplying controlled power to connected motor modules.Is this module intended for single axis or multi axis applications?
It is designed primarily for multi axis servo systems where centralized power distribution is required.Does this module support regenerative energy handling?
Yes, SINAMICS line modules manage power flow and regenerative braking energy within the system.Is this module compatible with other SINAMICS S120 components?
It is designed specifically for SINAMICS S120 systems and must be matched correctly with compatible motor and control modules.Can this module operate as a standalone unit?
No, it must be installed as part of a complete SINAMICS S120 drive configuration. -
Specifications
Introduction
The Siemens 6SL3120-1TE23-0AA4 SINAMICS S120 Single Motor Module is a powerful and reliable power control solution for single motor applications. With its advanced features and optimized pulse patterns, this module is the perfect choice for a wide range of industrial applications.
Key Features
- • 6SL31201TE230AA4
- • DISCONTINUED BY MANUFACTURER
- • POWER CONTROLLER
- • SINAMICS S120 SERIES
- • 400 VAC
- • 600 VDC
- • 30 AMP
- • REPLACED BY 6SL3120-1TE23-0AC0
Product Information

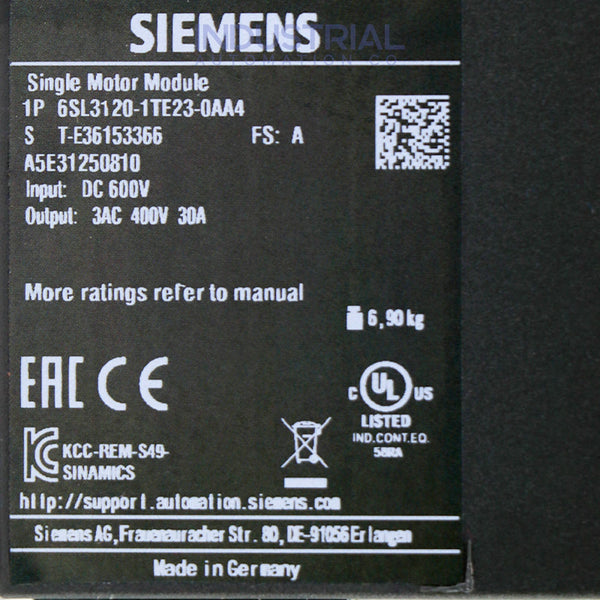

The Siemens 6SL3120-1TE23-0AA4 SINAMICS S120 Single Motor Module is designed for use with an input power of 600V DC and an output of 400V AC 3-PH 30A. This module is optimized for single-motor applications and is equipped with advanced features for optimal performance and efficiency.
Optimized Pulse Patterns
The 6SL3120-1TE23-0AA4 is equipped with optimized pulse patterns that help to ensure precise and consistent control over the motor. This feature makes the module ideal for applications that require precise and accurate control over the motor's operation.

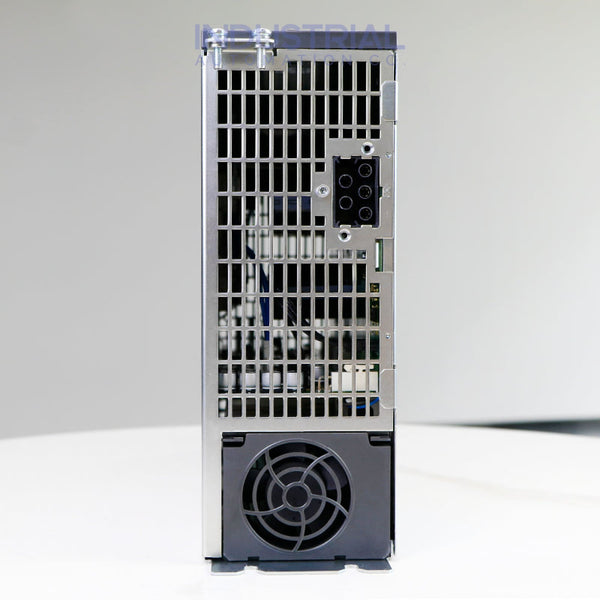

Internal Air Cooling
This module also includes an internal air-cooling design that helps to dissipate heat and maintain optimal performance. The internal air cooling ensures smooth and consistent operation even in high-temperature environments, which prevents damage to the module due to overheating.
Support for Extended Safety Integrated Functions
The 6SL3120-1TE23-0AA4 is equipped with support for extended safety integrated functions. This ensures the system's safe and reliable operation and helps minimize the risk of accidents or malfunctions.
Shipping Information
The estimated shipping size of the 6SL3120-1TE23-0AA4 is as follows:
- • Dimensions: 22.0" x 4.0" x 14.0" (55.9 cm x 10.2 cm x 35.6 cm)
- • Weight: 13 lbs 16.0 oz (6.4kg)
It is classified under Tariff code 8504907500 and made in Germany
Conclusion
In conclusion, the Siemens 6SL3120-1TE23-0AA4 SINAMICS S120 Single Motor Module is a powerful and reliable power control solution for single motor applications. With its optimized pulse patterns, internal air cooling, and support for extended safety integrated functions, this module is an ideal choice for industrial applications that require precise and accurate motor control. While it has been discontinued by the manufacturer and replaced by 6SL3120-1TE23-0AC0, it is still a valid option for those who have it in stock or still have an existing system that uses it. Its compact design and high-performance features make it an ideal choice for industrial applications where power control is critical. If you need a high-performance single-motor module for your application, consider the Siemens 6SL3120-1TE23-0AA4 SINAMICS S120 Single Motor Module as a powerful and reliable solution.

-
