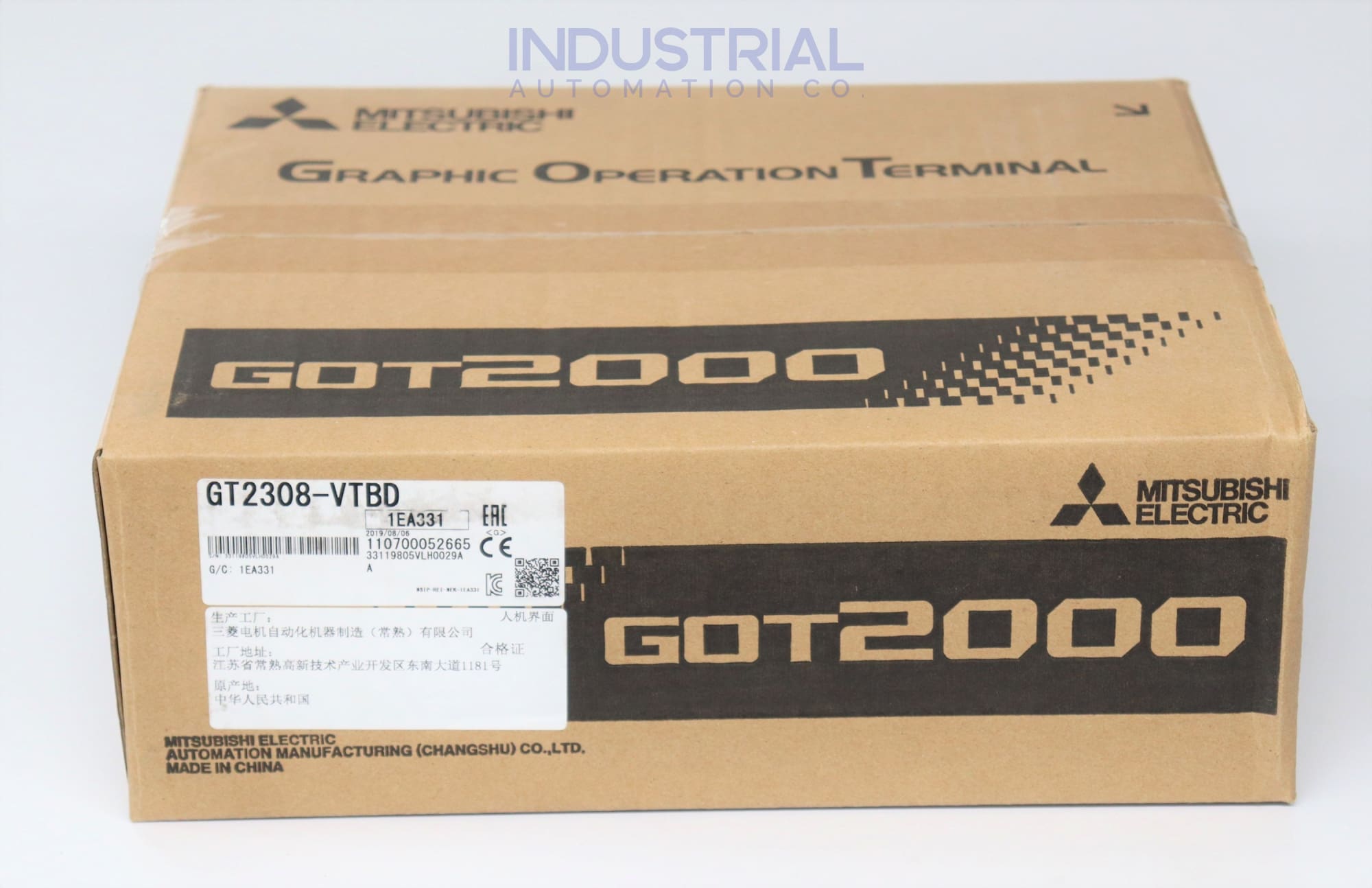

Mitsubishi GT2308-VTBD

Mitsubishi GT2308-VTBD

The Mitsubishi GT2308-VTBD, from the GOT2000 series, delivers unrivalled performance at an affordable price. This 8.4-inch TFT colour display's outstanding clarity and usability guarantee high productivity in industrial settings. The modern black frame design is compatible with a wide range of control systems, making it an affordable and dependable option for all your automation requirements.

Technical Specifications:

The Mitsubishi GT2308-VTBD consumes 9W of power and operates on a 24VDC power supply. Thanks to its 8.4-inch display with VGA resolution, it offers clear and detailed visuals. This model employs a TFT colour display, which provides precise and vibrant image quality.

A black frame is incorporated into the GT2308-VTDB, which provides a contemporary and professional appearance to control panels. The model operates from 0 to 55 °C and stores from -20 to 60 °C. Operating and storage ambient humidity is maintained at 10 to 90%RH without condensation, ensuring the product's vital functioning under varied environmental circumstances.

IMitsubishi GT2308-VTBD 50,000-hour backlight expectancy reduces maintenance. The analogue resistive touch panel provides precise, responsive contact control. Communication interfaces include Ethernet, RS-232, and RS-422/485 for numerous connectivity possibilities. It also supports USB host and device operations, improving its industrial use

The IP65 front panel protects against low-pressure water jets and dust, making it suitable for harsh industrial environments. A memory card interface supports SD/SDHC cards for data retention and program storage, making the GT2308-VTDB versatile and valuable in many applications.

Operating Conditions:

To protect against external elements, put the Mitsubishi GT2308-VTBD in a control panel. It works without greasy odours, acidic gas, flammable gas, high-conductive dust, or direct sunlight. Up to 2000 meters of working height ensures reliability in varied installation circumstances.

This unit fulfils industry safety and durability standards with an overvoltage category II or less and a pollution degree 2. Self-cooling minimises the demand for cooling devices and boosts efficiency.

The GT2308-VTDB fulfils JIS B 3502 and IEC 61131-2 impact resistance standards, withstanding 147 m/s ² (15G) impacts in three directions (X, Y, Z). With a noise resistance of 500Vp-p, a noise width of 1?s, and a frequency range of 25-60Hz, it provides consistent performance in loud environments.

Grounding:

Mitsubishi GT2308-VTBD needs correct grounding. The grounding should have a resistance of 100? or less. If this resistance threshold is not reached, connect the ground line to the control panel. Adequate grounding reduces electrical interference and enhances performance and safety.

Industrial control systems benefit from the Mitsubishi GT2308-VTBD's reliable performance and solid technological characteristics. Due to its efficient design and compliance with industry standards, it is a cost-effective and high-performance option for many applications.

Adjustable brightness ensures display visibility in varied lighting conditions. The unit has advanced screen generation features for intuitive, personalised interface designs. Multi-touch gestures make control easier. The model works with GT Designer3, simplifying configuration and programming.

Frequently Asked Questions:

What temperature ranges does the Mitsubishi GT2308-VTBD work in?

There is a -20 to 60 °C storage ambient temperature range and a 0 to 55 °C working ambient temperature range. This enables dependable operation in a wide range of environmental settings.

What kinds of connection ports does the Mitsubishi GT2308-VTBD have?

The Mitsubishi GT2308-VTBD offers multiple interfaces, including Ethernet, RS-232, and RS-422/485, which provide flexible connection choices for various industrial configurations.

How does the Mitsubishi GT2308-VTBD stack up regarding impact resistance?

Withstanding impacts of 147 m/s ² (15G) in three directions, the GT2308-VTDB complies with JIS B 3502 and IEC 61131-2 requirements. This makes it reliable and long-lasting, even in the most extreme conditions.
