Fuji Electric FRN1039G2W-4GU
SKU: FRN1039G2W-4GU
48 in stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $55,061.64
- Sale price
- $55,061.64
Default Title
$55,061.64
In Stock
Description

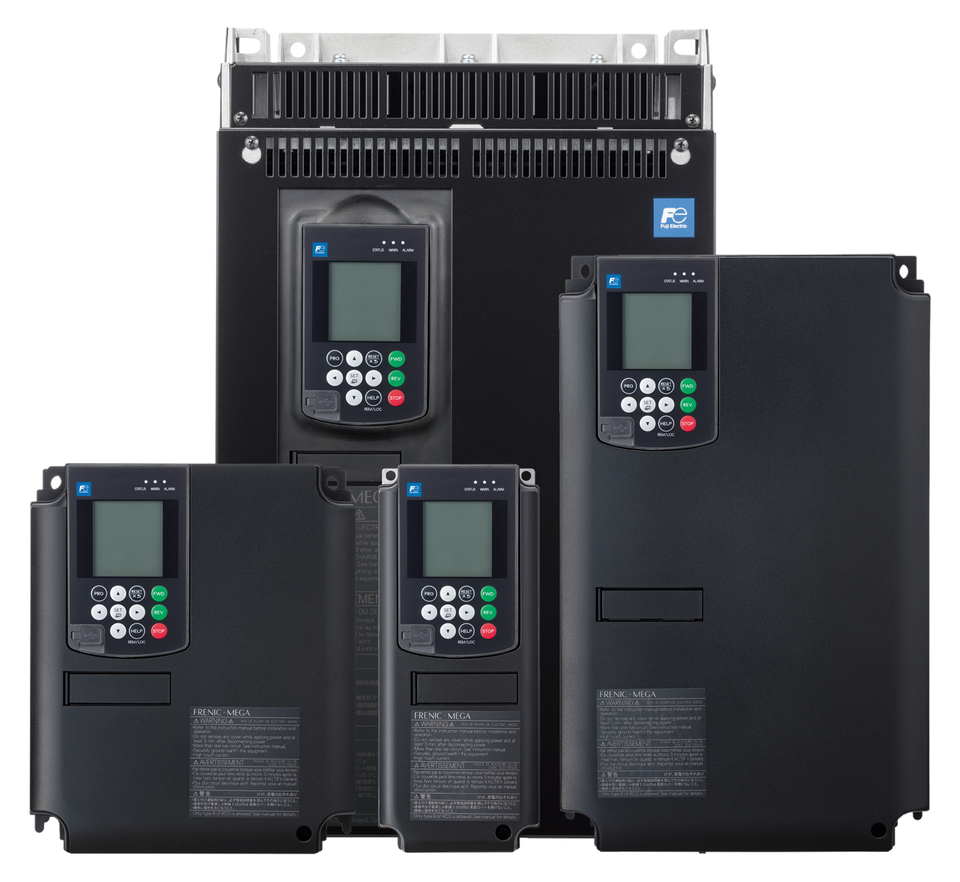

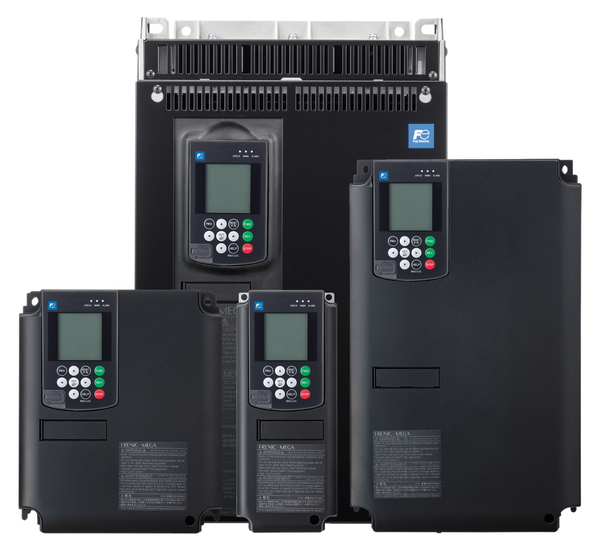

The Fuji Electric FRN1039G2W-4GU is a FRENIC-MEGA (G2) series high-performance variable frequency drive for 460 VAC three-phase applications, rated 800 HP / 960 A (Normal Duty), 500 HP / 650 A (Heavy Duty). The FRENIC-MEGA platform serves demanding industrial drive applications such as machine tools, cranes and hoists, extruders, conveyors, and process equipment.
The G2 generation adds native control of permanent magnet (PM) motors, both interior PM and surface PM, for high-efficiency motor pairings, and integrates Safe Torque Off (STO) certified to SIL2 / PL d per IEC 62061 and ISO 13849, eliminating external safety contactors in many machine safety architectures. High-response current vector control provides high starting torque and precise speed regulation.
Technical Specifications
| Manufacturer | Fuji Electric |
| Series | FRENIC-MEGA (G2) |
| Product Type | Variable Frequency Drive (VFD) |
| Input Voltage | 460 VAC, 3-phase |
| Normal Duty Rating | 800 HP / 960 A |
| Heavy Duty Rating | 500 HP / 650 A |
| Motor Types Supported | Induction motors; interior and surface permanent magnet (IPM/SPM) motors |
| Functional Safety | Safe Torque Off (STO), SIL2 / PL d certified |
| Control Methods | V/f, dynamic torque vector, sensorless vector, PM motor control |
| Communication | RS-485 Modbus RTU built-in; fieldbus option cards available |
-
Buying Options
-
Description
The Fuji Electric FRN1039G2W-4GU is a FRENIC-MEGA (G2) series high-performance variable frequency drive for 460 VAC three-phase applications, rated 800 HP / 960 A (Normal Duty), 500 HP / 650 A (Heavy Duty). The FRENIC-MEGA platform serves demanding industrial drive applications such as machine tools, cranes and hoists, extruders, conveyors, and process equipment.
The G2 generation adds native control of permanent magnet (PM) motors, both interior PM and surface PM, for high-efficiency motor pairings, and integrates Safe Torque Off (STO) certified to SIL2 / PL d per IEC 62061 and ISO 13849, eliminating external safety contactors in many machine safety architectures. High-response current vector control provides high starting torque and precise speed regulation.
Technical Specifications
Manufacturer Fuji Electric Series FRENIC-MEGA (G2) Product Type Variable Frequency Drive (VFD) Input Voltage 460 VAC, 3-phase Normal Duty Rating 800 HP / 960 A Heavy Duty Rating 500 HP / 650 A Motor Types Supported Induction motors; interior and surface permanent magnet (IPM/SPM) motors Functional Safety Safe Torque Off (STO), SIL2 / PL d certified Control Methods V/f, dynamic torque vector, sensorless vector, PM motor control Communication RS-485 Modbus RTU built-in; fieldbus option cards available -
