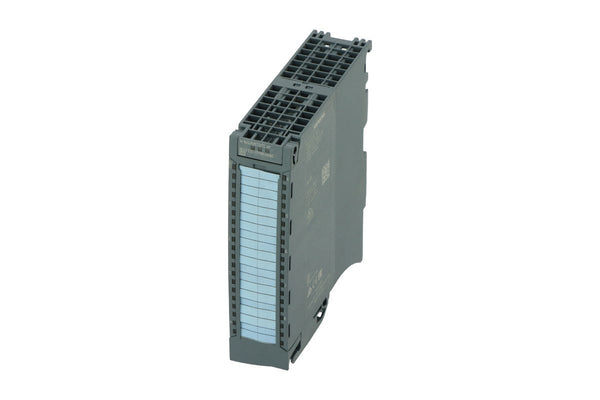

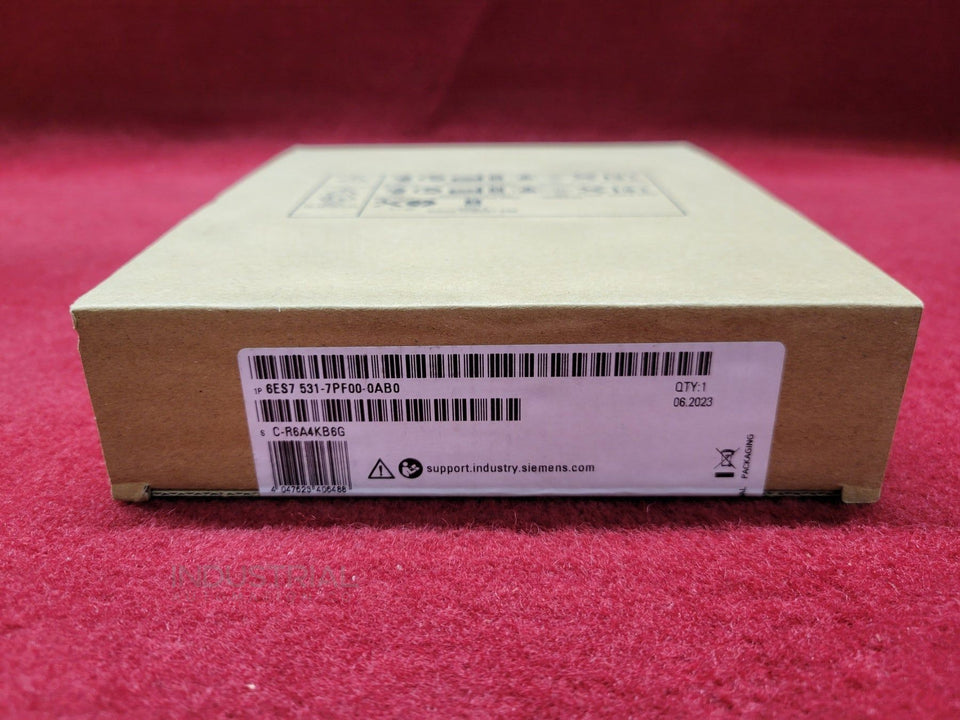

Siemens 6ES7531-7PF00-0AB0
SKU: 6ES7531-7PF00-0AB0-FS
Low stock
Consegna stimata: October 15th - October 19th
Ordina ora per la spedizione il giorno successivo.
- Prezzo di listino
- €1.447,95
- Prezzo scontato
- €1.447,95
New
€1.447,95
Low stock
Description
The Siemens 6ES7531-7PF00-0AB0 is a SIMATIC S7-1500 analog input module AI 8xU/R/RTD/TC HF (High Feature) for precision voltage, resistance, RTD, and thermocouple measurement. It offers up to 21-bit resolution for RTD and TC measurement, a scalable temperature measuring range including thermocouple type C, channel isolation in groups of 1, and calibration in RUN. Delivery includes infeed element, shield bracket, and shield terminal; the front connector is ordered separately.
Technical Specifications
| Series | SIMATIC S7-1500 |
| Type | Analog input module AI 8xU/R/RTD/TC HF |
| Channels | 8, in groups of 1 |
| Resolution | 16 bit; up to 21 bit for RTD/TC |
| Accuracy | 0.1% |
| Measurement types | Voltage, resistance, RTD, thermocouple (incl. type C) |
| Common mode voltage | 30 V AC / 60 V DC |
| Functions | Scalable temperature range, calibrate in RUN |
| Included | Infeed element, shield bracket, shield terminal |
| Front connector | Screw or push-in, ordered separately |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $217/yr+3 yrs → 5 total $193/yr+5 yrs → 7 total $145/yrBEST VALUE+8 yrs → 10 total $109/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6ES7531-7PF00-0AB0 is a SIMATIC S7-1500 analog input module AI 8xU/R/RTD/TC HF (High Feature) for precision voltage, resistance, RTD, and thermocouple measurement. It offers up to 21-bit resolution for RTD and TC measurement, a scalable temperature measuring range including thermocouple type C, channel isolation in groups of 1, and calibration in RUN. Delivery includes infeed element, shield bracket, and shield terminal; the front connector is ordered separately.
Technical Specifications
Series SIMATIC S7-1500 Type Analog input module AI 8xU/R/RTD/TC HF Channels 8, in groups of 1 Resolution 16 bit; up to 21 bit for RTD/TC Accuracy 0.1% Measurement types Voltage, resistance, RTD, thermocouple (incl. type C) Common mode voltage 30 V AC / 60 V DC Functions Scalable temperature range, calibrate in RUN Included Infeed element, shield bracket, shield terminal Front connector Screw or push-in, ordered separately -
Spiegazione del numero di parte
Part number reference — 6ES7531-7PF00-0AB0
SIMATIC S7-1500, analog input module AI 8xU/R/RTD/TC HF, 16 bit resolution, up to 21 bit resolution for RTD and TC, accuracy 0.1%, 8 channels in groups of 1, common mode voltage: 30 V AC/60 V DC, Diagnostics, hardware interrupts Scalable temperature measuring range, thermocouple type C, calibrate in RUN Incl. infeed element, shield bracket and shield terminal
Official Siemens catalog description.
