Maple Systems SC030001
SKU: SC030001
Disponibile
Articolo di marca autorizzata: spedizione secondo i tempi del produttore.
- Prezzo di listino
- €0,00
- Prezzo scontato
- €0,00
New
€0
Disponibile
Description

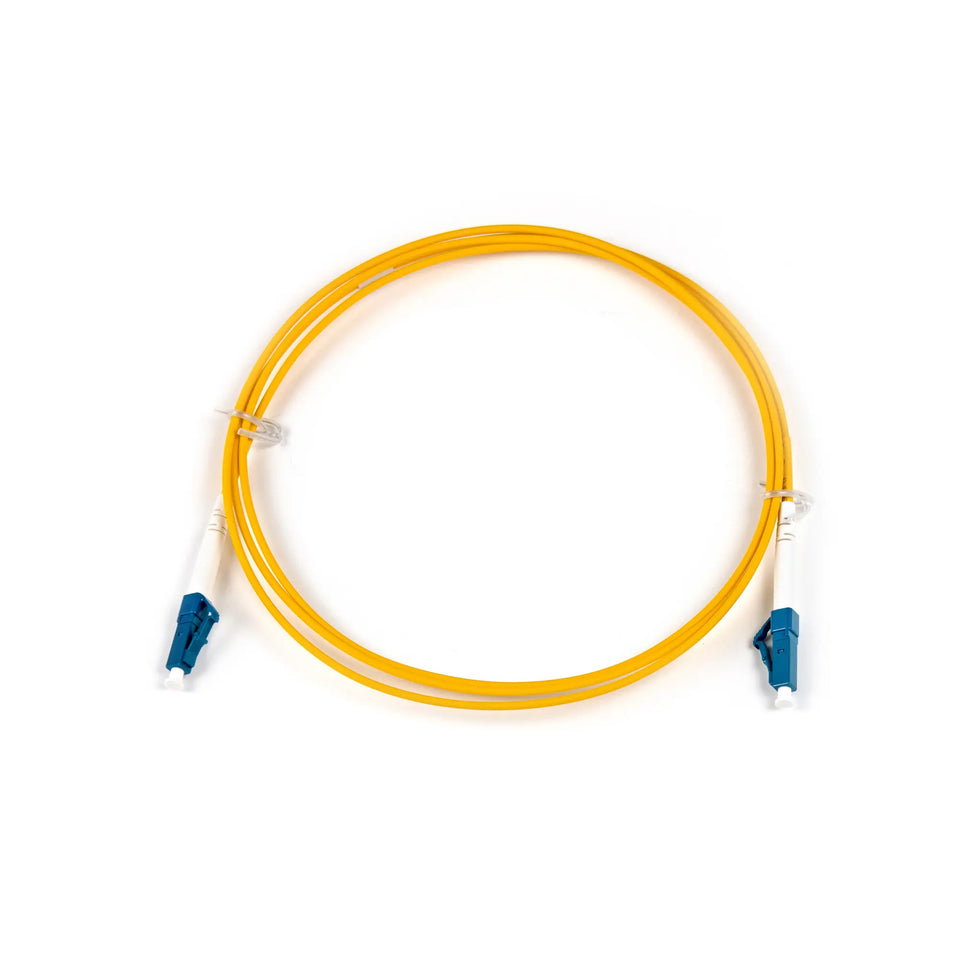

The Maple Systems SC030001 is a 5 ft LC to LC simplex singlemode fiber optic patch cable with UPC polished connectors. It uses OS2 9/125 um singlemode fiber with a flame-retardant LSZH (low smoke zero halogen) jacket, suited to longer-distance Ethernet links between control cabinets or buildings.
This cable is intended for connecting BiDi singlemode SFP transceivers such as the Maple Systems SM031032 when used with the MS1-L05G01F managed Ethernet switch, and works with any standard simplex LC singlemode link.
Technical Specifications
| Part Number | SC030001 |
| Type | Fiber optic patch cable |
| Connectors | LC to LC, UPC, simplex |
| Fiber Mode | Singlemode (SMF) |
| Fiber Grade | OS2, 9/125 um |
| Length | 5 ft |
| Jacket | LSZH (low smoke zero halogen) |
| Typical Use | SM031032 BiDi SFP with MS1-L05G01F switch |
-
Buying Options
-
Description
The Maple Systems SC030001 is a 5 ft LC to LC simplex singlemode fiber optic patch cable with UPC polished connectors. It uses OS2 9/125 um singlemode fiber with a flame-retardant LSZH (low smoke zero halogen) jacket, suited to longer-distance Ethernet links between control cabinets or buildings.
This cable is intended for connecting BiDi singlemode SFP transceivers such as the Maple Systems SM031032 when used with the MS1-L05G01F managed Ethernet switch, and works with any standard simplex LC singlemode link.
Technical Specifications
Part Number SC030001 Type Fiber optic patch cable Connectors LC to LC, UPC, simplex Fiber Mode Singlemode (SMF) Fiber Grade OS2, 9/125 um Length 5 ft Jacket LSZH (low smoke zero halogen) Typical Use SM031032 BiDi SFP with MS1-L05G01F switch -
