Yaskawa CIMR-F7U4030

Yaskawa CIMR-F7U4030

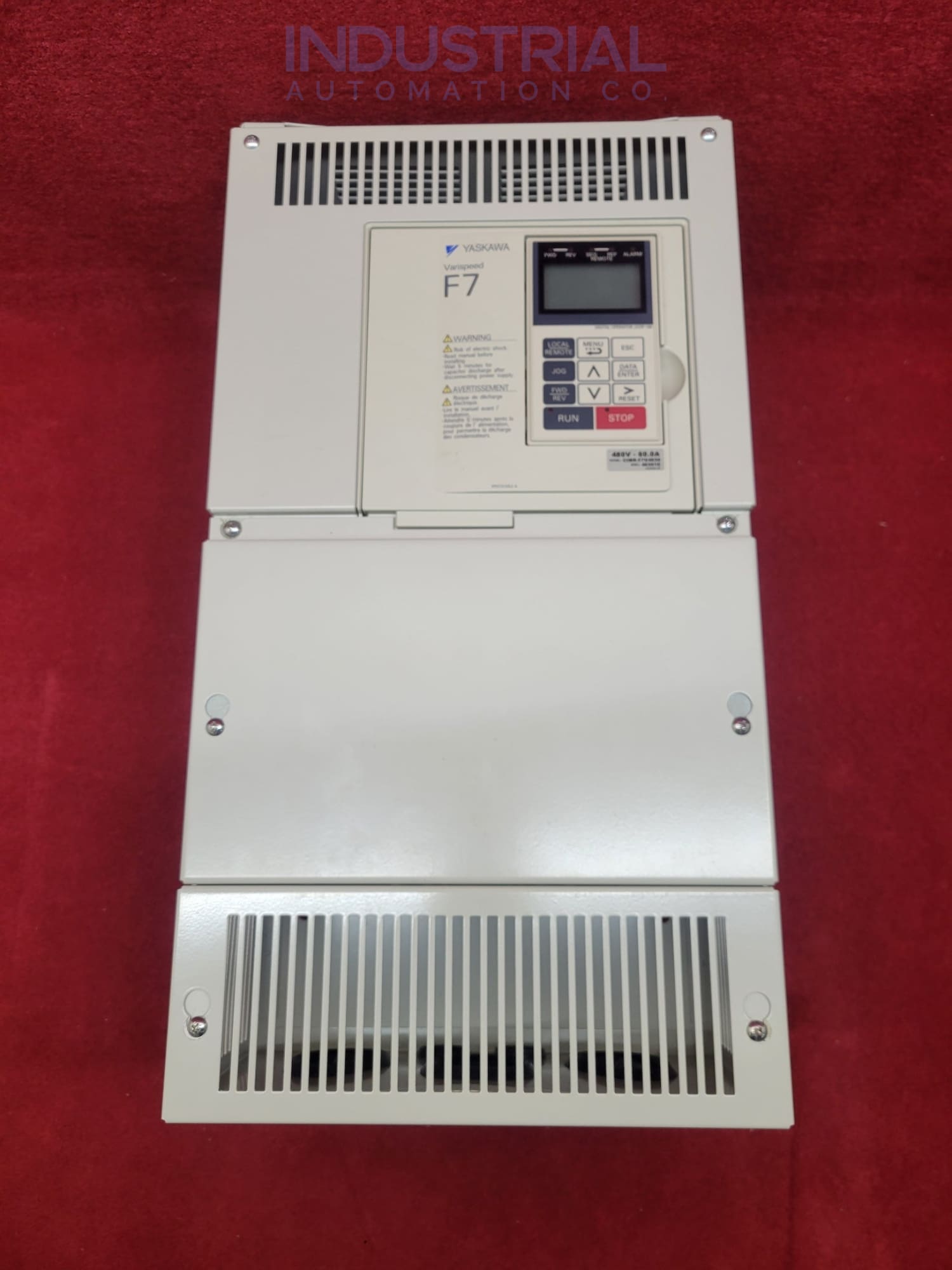

The Yaskawa CIMR-F7U4030 is a variable frequency AC drive known for its efficiency and precise control over the motor€™s torque and speed in the industry. The drive has a digital display for continuous monitoring and smooth operation. The drive has demanding applications in the industry.

Technical Specifications and Performance:

The Yaskawa CIMR-F7U4030 variable frequency drive has two modes: heavy drive and normal drive mode. The drive has a three-phase input voltage ranging from 380- 480V. The heavy drive has 46 kVA and has a power rating of 40HP. The output current rated for heavy drives is 60A. The normal drive has a rated output capacity of 51 kVA and 40-50 Horsepower. The output-rated current is 67.2 Ampere maximum.

The drive can operate on output frequencies ranging from 0.01hz to 400hz. The drive has multiple control methods, which are V/f control, open-loop vector control, and closed-loop vector control. The unit has an overload current capacity of 150% for 60 seconds, and its carrier frequency is 2KHz.

The Yaskawa CIMR-F7U4030 variable frequency drive is compact and can be installed in any orientation. The drive weighs 24 kg, and the dimensions are 11.2 x 5.9 x 7.3 inches. The ambient working temperature for the drive is -10 to +50 degrees Celsius. The drive has an enclosure of NEMA 1 type with IP20 protection for harsh industrial environments.

The variable frequency drive has DC Injection braking in torque and motor speed control. The frequency setting is 0.0 to 10.0 Hz, and the default is 0.5 Hz. DC injection braking is controlled by the flow of current to the rotor as it generates a magnetic field to stop the rotor, which ranges from 0 to 100%.

Features:

The drive is 90% efficient, saving energy while operating smoothly. The drive has various protective functions, including overcurrent, overvoltage, Undervoltage, overheating, and ground fault protection, ensuring safe and reliable operation.

Application and Benefits:

The Yaskawa CIMR-F7U4030 variable frequency drive has industry applications for complex problems and demanding requirements. It provides precise control over conveyor systems, optimises speed control over fans and pumps, reducing energy consumption, and is used in the HVAC system to control compressors efficiently.

The drive has several benefits: a built-in LCD and buttons to monitor and set parameters. It is preferred over other drives due to Energy Efficiency, Enhanced Performance, User-Friendly Interface, safety features, and Reliable Operation.

Frequently Asked Questions :

How much Yaskawa CIMR-F7U4030 output frequency range?

The Yaskawa CIMR-F7U4030 has an input frequency range of 50 to 60 Hz. The output frequency ranges from 0.01 to 400Hz, providing a wide range for various applications.

What is the maximum power of Yaskawa CIMR-F7U4030?

The Yaskawa CIMR-F7U4030 CPU has a rated output capacity of 46 kVA and a power rating of 40HP. The output current rated for heavy drives is 60A, making it suitable for demanding industrial tasks.

How Yaskawa CIMR-F7U4030 weighs?

The Yaskawa CIMR-F7U4030 has weight around 24 kg and dimension of 11.2 x 5.9 x 7.3 inches, which makes it compact and manageable for installation in various settings.
