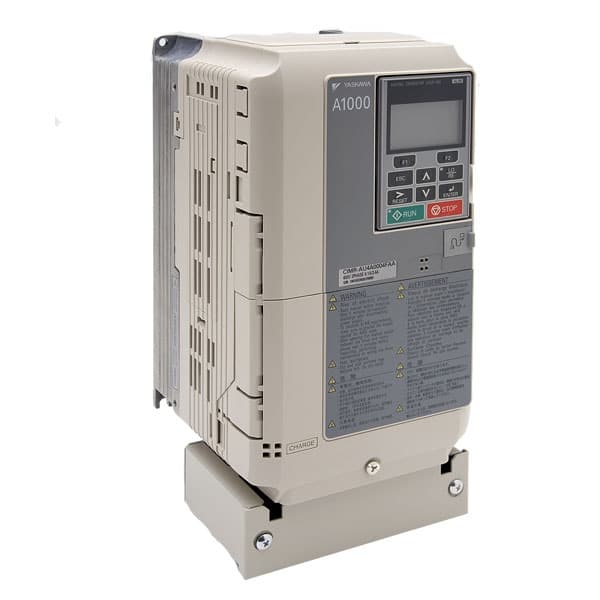

Yaskawa CIMR-AU4A0009FAA
SKU: CIMR-AU4A0009FAA
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
Manufacturer Part Number CIMR-AU4A0009FAA
Manufacturer Yaskawa
Product Series A1000
Family Series Yaskawa Drives, A1000 Series
Description Drive, AC, 4HP, 480V, 3PH, 7.2A, CT, 5HP, 8.8A, VT, 11.81in.Hx5.51in.Wx6.46in.D
Input Phase 3
HP (Constant Torque Rating) 4 hp
HP (Variable Torque Rating) 5 hp
Amps (Constant Torque Rating) 7.2 A
Amps (Variable Torque Rating) 8.8 A
Braking Type DC Injection, Dynamic Braking Transistor Included
Closed Loop Optional
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 1
Motor Control-Max Level Closed Loop Vector for Permanent Magnet
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 400 Hz
Protection Rating IP20
Dynamic Braking Trans Included
Height 11.81 "
Width 5.51 "
Depth 6.46 "
Net Weight 13.2 lbs
Gross Weight 13.2 lbs
-
