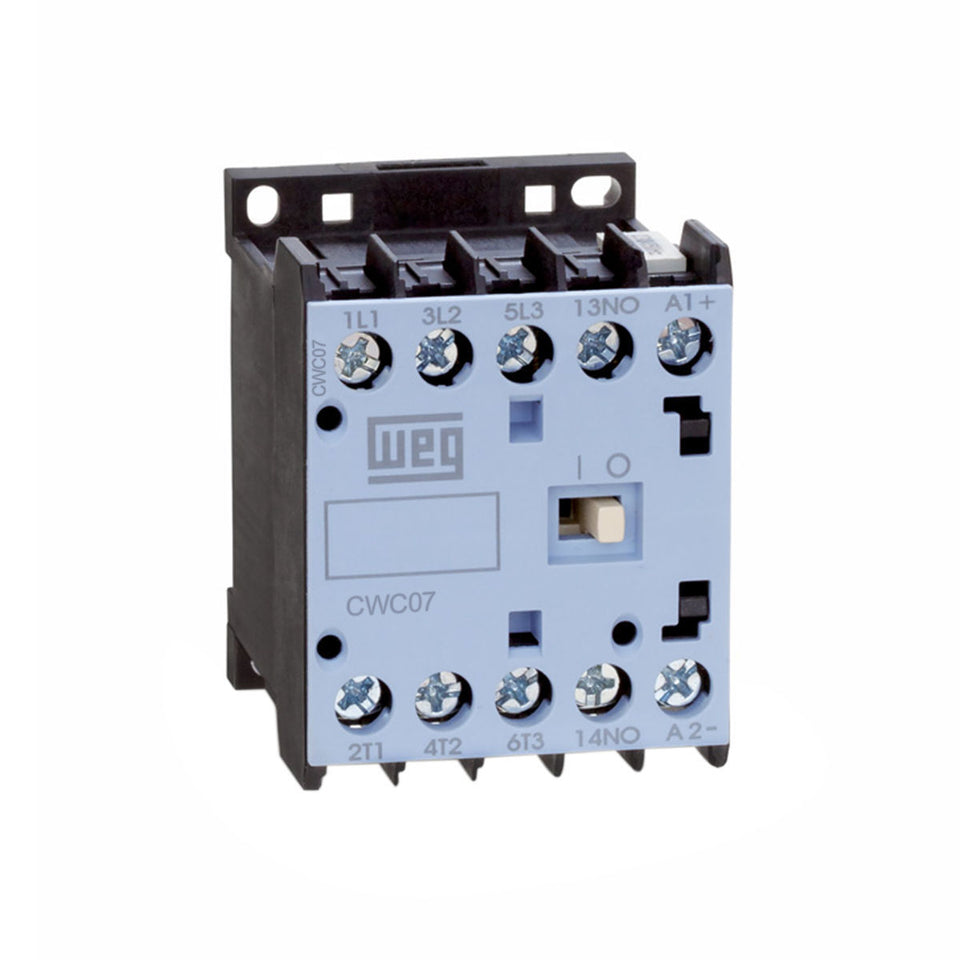

WEG CWC07-00-22V18
SKU: CWC07-00-22V18-FS
This product is not available for online purchase.
Use Request a quote to get pricing.
IAC Certified Refurbished
Call for Availability
Request a quote
New
Call for Availability
Request a quote
Description
The WEG CWC07-00-22V18 (WEG material number 13181131) is a minicontactor, a CWC-series compact power contactor. WEG lists it as “MINICONTACTOR BU CWC07-00-22V18”. Key specifications: rated current 7 A, reference CWC0, main contact 2 NO + 2 NC.
Compact yet complete for circuit control and operation, the line comes with a broad accessory range for fast, space-saving assembly in many applications.
WEG CWC07-00-22V18 Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | CWC07-00-22V18 |
| WEG material number | 13181131 |
| WEG designation | MINICONTACTOR BU CWC07-00-22V18 |
| Product type | Contactor |
| Series | CWC |
| Rated insulation voltage Ui (pollution degree 3) - IEC 60947-4-1 | 1000 V |
| Rated insulation voltage Ui (pollution degree 3) - UL, CSA | 600 V |
| Rated operational frequency - minimum | 25 Hz |
| Rated operational frequency - maximum | 400 Hz |
| Mechanical lifespan (AC) | 10 million |
| Mechanical lifespan (DC) | 12 million |
| Electrical lifespan | 1,4 million |
| Degree of protection IP (IEC 60529) - Main circuit | IP20 |
| Degree of protection IP (IEC 60529) - Control circuit | IP20 |
| Rated current | 7 A |
| Rated current In - AC-4 | 2,8 A |
| Rated operational current Ie AC-1 (θ = 55 °C) | 18 A |
| Rated operational voltage Ue - IEC 60947-4-1 | 690 V |
| Rated operational voltage Ue - UL/CSA | 600 V |
| Height | 58 mm (2.28 in) |
| Width | 45 mm (1.77 in) |
| Depth | 52 mm (2.05 in) |
| Gross weight | 194 g |
| Reference | CWC0 |
| Main contact | 2 NO + 2 NC |
| WEG catalog category | Controls > Contactors > Power contactors > CWC - Compact contactors |
Industrial Automation Co. offers the WEG CWC07-00-22V18 in new condition. Request a quote for current pricing, availability, and lead time.
-
