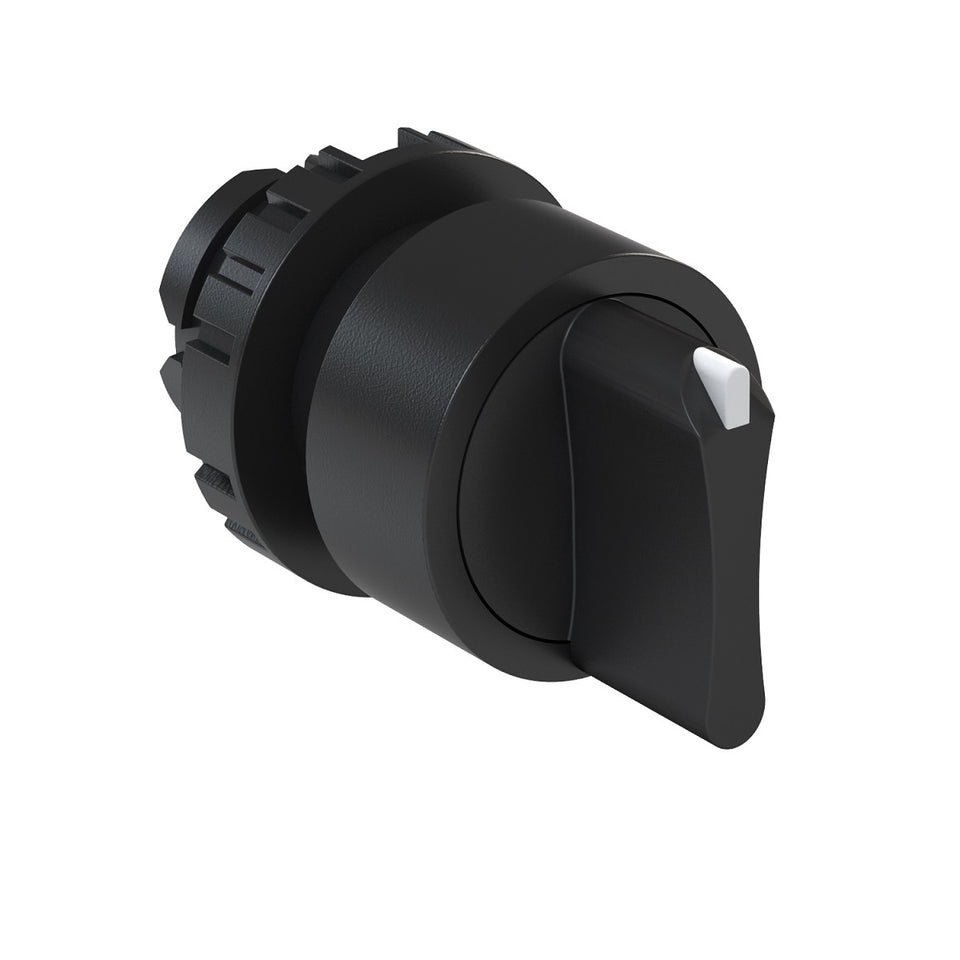

WEG CSW-CK3F45 WH
SKU: CSW-CK3F45 WH-FS
This product is not available for online purchase.
Use Request a quote to get pricing.
IAC Certified Refurbished
Call for Availability
Request a quote
New
Call for Availability
Request a quote
Description
The WEG CSW-CK3F45 WH (WEG material number 12882311) is a CSW-series 22 mm selector switch. WEG lists it as “SELECTOR SWITCH CSW-CK3F45-WH”. Key specifications: front type Knob, actuation form Fixed, selector switches posittions 3, selector switches angle 45 °.
Selector switches from the CSW Push Buttons and Pilot Lights line are built for harsh environments and industrial applications, with advanced design and manufacturing behind their modern, ergonomic styling.
WEG CSW-CK3F45 WH Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | CSW-CK3F45 WH |
| WEG material number | 12882311 |
| WEG designation | SELECTOR SWITCH CSW-CK3F45-WH |
| Product type | Selector Switch |
| Series | CSW |
| Front type | Knob |
| Actuation form | Fixed |
| Selector switches posittions | 3 |
| Selector switches angle | 45 ° |
| Front color | Standard |
| Actuation signaling | Not contain |
| Front coating | Uncoated |
| Specific function | Without lettering |
| Emergency button monitoring | Not contain |
| Installation diameter | 22 mm |
| Degree of protection | IP66 |
| Weight | 0.02Kg |
| WEG catalog category | Controls > Pushbuttons and Pilot Lights devices > Pushbuttons and Pilot Lights (22 mm Series) > Selector Switches CSW (Ø22 mm) |
Industrial Automation Co. offers the WEG CSW-CK3F45 WH in new condition. Request a quote for current pricing, availability, and lead time.
-
Buying Options
-
Description
The WEG CSW-CK3F45 WH (WEG material number 12882311) is a CSW-series 22 mm selector switch. WEG lists it as “SELECTOR SWITCH CSW-CK3F45-WH”. Key specifications: front type Knob, actuation form Fixed, selector switches posittions 3, selector switches angle 45 °.
Selector switches from the CSW Push Buttons and Pilot Lights line are built for harsh environments and industrial applications, with advanced design and manufacturing behind their modern, ergonomic styling.
WEG CSW-CK3F45 WH Technical Specifications
Manufacturer WEG Part number CSW-CK3F45 WH WEG material number 12882311 WEG designation SELECTOR SWITCH CSW-CK3F45-WH Product type Selector Switch Series CSW Front type Knob Actuation form Fixed Selector switches posittions 3 Selector switches angle 45 ° Front color Standard Actuation signaling Not contain Front coating Uncoated Specific function Without lettering Emergency button monitoring Not contain Installation diameter 22 mm Degree of protection IP66 Weight 0.02Kg WEG catalog category Controls > Pushbuttons and Pilot Lights devices > Pushbuttons and Pilot Lights (22 mm Series) > Selector Switches CSW (Ø22 mm) Industrial Automation Co. offers the WEG CSW-CK3F45 WH in new condition. Request a quote for current pricing, availability, and lead time.
-
