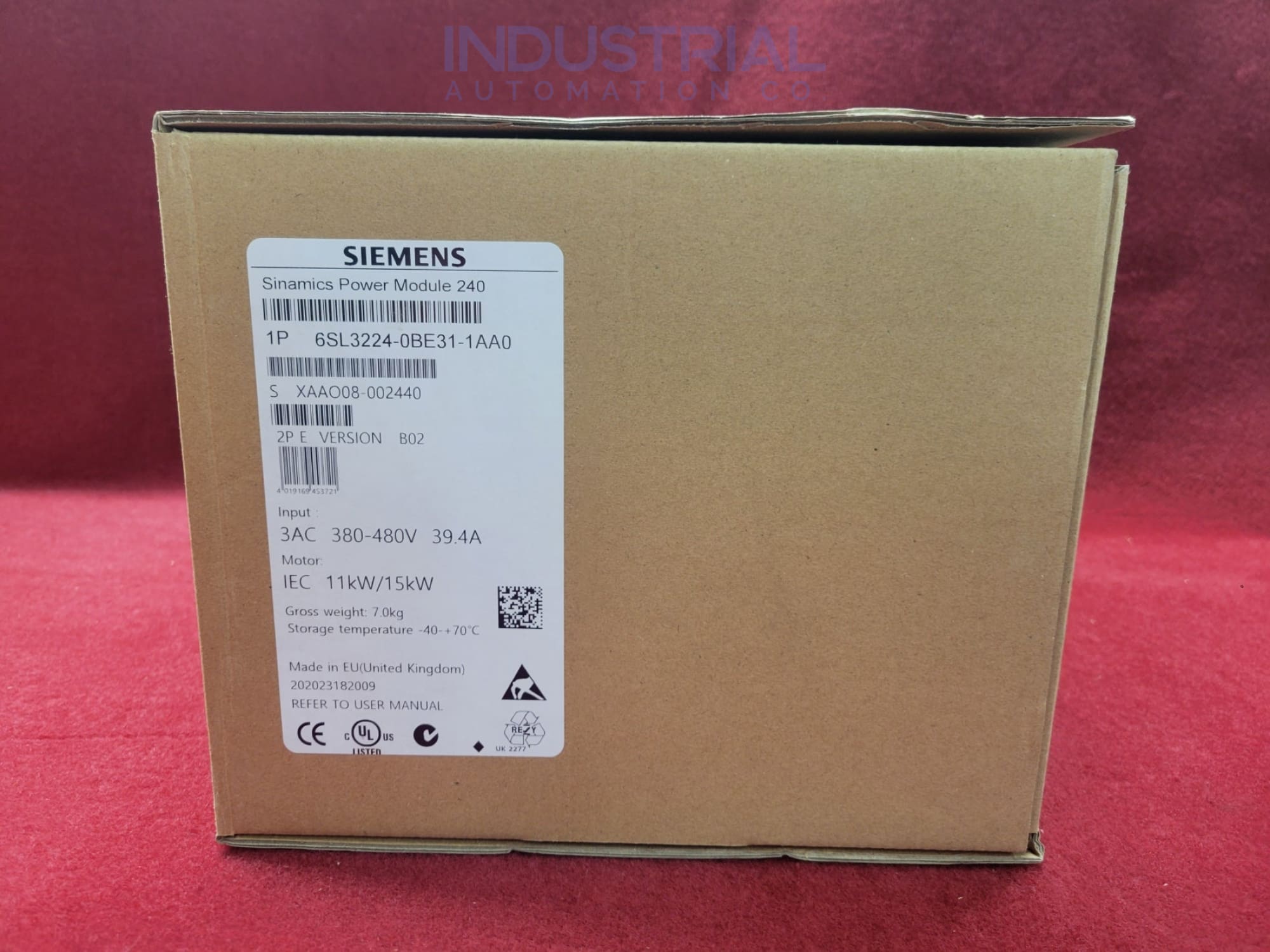

Siemens 6SL3224-0BE31-1AA0
SKU: 6SL3224-0BE31-1AA0-FS
1 in stock
Estimated delivery: October 30th - November 3rd
Order for next-day shipment.
- Regular price
- $2,897.00
- Sale price
- $2,897.00
New
$2,897
In Stock
IAC Certified Refurbished
Call for Availability
Request a quote
New Open Box
Call for Availability
Request a quote
Description
The Siemens 6SL3224-0BE31-1AA0 is a SINAMICS PM240 power module rated 11 kW at high overload for three-phase 380-480 V AC supplies. PM240 power modules form the power section of the modular SINAMICS G120 drive system; a separate CU230P-2, CU240 or CU250S control unit mounts on the front to complete a working frequency converter.
The module includes an integrated braking chopper for connection of an external braking resistor and has an integrated Class A line filter. Typical applications include pumps, fans, conveyors, mixers, and general machinery.
Technical Specifications
| Product family | SINAMICS G120 / PM240 power module |
| Supply voltage | 3 AC 380-480 V +/-10%, 47-63 Hz |
| Rated power (high overload) | 11 kW (200% for 3 s, 150% for 57 s, 100% for 240 s) |
| Rated power (low overload) | 15 kW (150% for 3 s, 110% for 57 s, 100% for 240 s) |
| Braking chopper | Integrated |
| Line filter | Integrated Class A filter |
| Frame size | FSC |
| Dimensions (H x W x D) | 334 x 189 x 185 mm |
| Degree of protection | IP20 |
| Control unit | Not included (requires SINAMICS G120 control unit) |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $435/yr+3 yrs → 5 total $386/yr+5 yrs → 7 total $290/yrBEST VALUE+8 yrs → 10 total $217/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SL3224-0BE31-1AA0 is a SINAMICS PM240 power module rated 11 kW at high overload for three-phase 380-480 V AC supplies. PM240 power modules form the power section of the modular SINAMICS G120 drive system; a separate CU230P-2, CU240 or CU250S control unit mounts on the front to complete a working frequency converter.
The module includes an integrated braking chopper for connection of an external braking resistor and has an integrated Class A line filter. Typical applications include pumps, fans, conveyors, mixers, and general machinery.
Technical Specifications
Product family SINAMICS G120 / PM240 power module Supply voltage 3 AC 380-480 V +/-10%, 47-63 Hz Rated power (high overload) 11 kW (200% for 3 s, 150% for 57 s, 100% for 240 s) Rated power (low overload) 15 kW (150% for 3 s, 110% for 57 s, 100% for 240 s) Braking chopper Integrated Line filter Integrated Class A filter Frame size FSC Dimensions (H x W x D) 334 x 189 x 185 mm Degree of protection IP20 Control unit Not included (requires SINAMICS G120 control unit) -
Part Number Breakdown
Part number reference — 6SL3224-0BE31-1AA0
Sinamics G120 POWER Module PM240 with BUILT IN CL. A FILTER with BULT IN BRAKING CHOPPER 3AC380-480V +10 -10% 47-63HZ OUTPUT HIGH OVERLOAD 11KW FOR 200%...
Official Siemens catalog description.
Product family SINAMICS G120 PM240 Power Module Series SINAMICS G120 Type power module Fault codes (603)
Troubleshooting reference for the SINAMICS G120 Converter (CU250S-2):
- Fault A01006 — Firmware update for DRIVE-CLiQ component required
- Fault A01007 — POWER ON for DRIVE-CLiQ component required
- Fault A01009 — CU: Control module overtemperature
- Fault A01016 — Firmware changed
- Fault A01017 — Component lists changed
- Fault A01019 — Writing to the removable data medium unsuccessful
- Fault A01020 — Writing to RAM disk unsuccessful
- Fault A01021 — Removable data medium as USB data storage medium from the PC used
- Fault A01028 — Configuration error
- Fault A01035 — ACX: Parameter back-up file corrupted
- Fault A01045 — Configuring data invalid
- Fault A01049 — It is not possible to write to file
See all 603 fault codes for this series →
