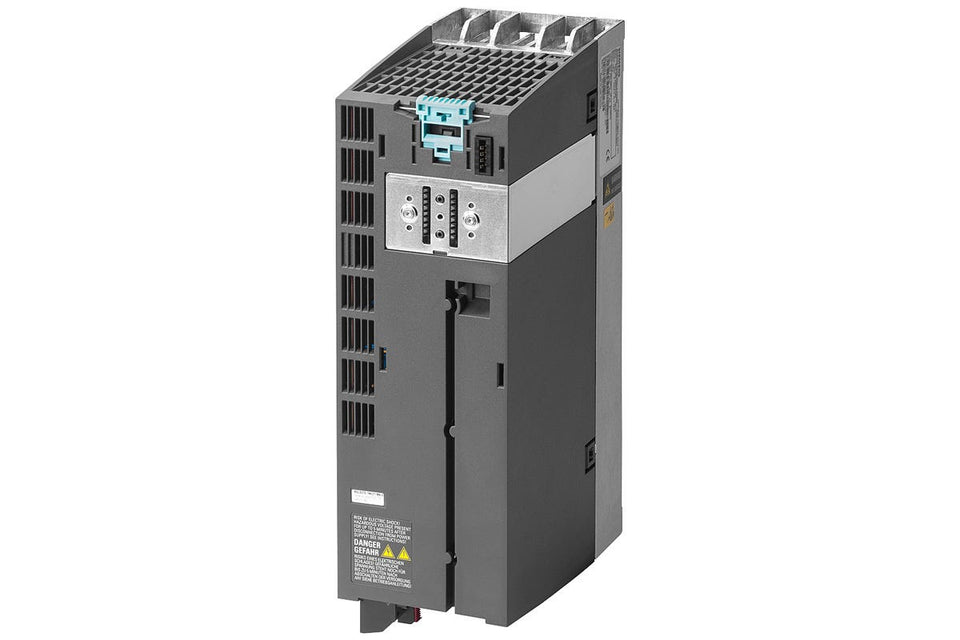

Siemens 6SL3210-1NE21-3AL0
SKU:
This product is not available for online purchase.
Use Request a quote to get pricing.
Refurbished
Call for Availability
Request a quote
New Surplus
Call for Availability
Request a quote
New Factory Sealed
Call for Availability
Request a quote
Description
SINAMICS G120 Power Module PM230 with integrated Class A filter Degree of protection IP20 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 5.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 °C (LO) 292x 100x 165 (HxWxD), FSB without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher Note: PM230 supported no safety
-
Buying Options
-
Description
SINAMICS G120 Power Module PM230 with integrated Class A filter Degree of protection IP20 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 5.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 °C (LO) 292x 100x 165 (HxWxD), FSB without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher Note: PM230 supported no safety
-
Part Number Breakdown
Part number reference — 6SL3210-1NE21-3AL0
Sinamics G120 POWER Module PM230 with BUILT IN CL. A FILTER Protection IP20 3AC380-480V +10 -10% 47-63HZ OUTPUT LOW OVERLOAD 5,5KW FOR 150% 3S,110% 57S,100%...
Official Siemens catalog description.
Product family SINAMICS G120C Power Converter Series SINAMICS G120C Type drive converter Fault codes (603)
Troubleshooting reference for the SINAMICS G120 Converter (CU250S-2):
- Fault A01006 — Firmware update for DRIVE-CLiQ component required
- Fault A01007 — POWER ON for DRIVE-CLiQ component required
- Fault A01009 — CU: Control module overtemperature
- Fault A01016 — Firmware changed
- Fault A01017 — Component lists changed
- Fault A01019 — Writing to the removable data medium unsuccessful
- Fault A01020 — Writing to RAM disk unsuccessful
- Fault A01021 — Removable data medium as USB data storage medium from the PC used
- Fault A01028 — Configuration error
- Fault A01035 — ACX: Parameter back-up file corrupted
- Fault A01045 — Configuring data invalid
- Fault A01049 — It is not possible to write to file
See all 603 fault codes for this series →
