Siemens 6SL3120-2TE21-0AA0
SKU: 6SL3120-2TE21-0AA0-R
1 in stock
Estimated delivery: November 9th - November 11th
Order for next-day shipment.
- Regular price
- $1,992.00
- Sale price
- $1,992.00
IAC Certified Refurbished
$1,992
In Stock
Ships Today
Description

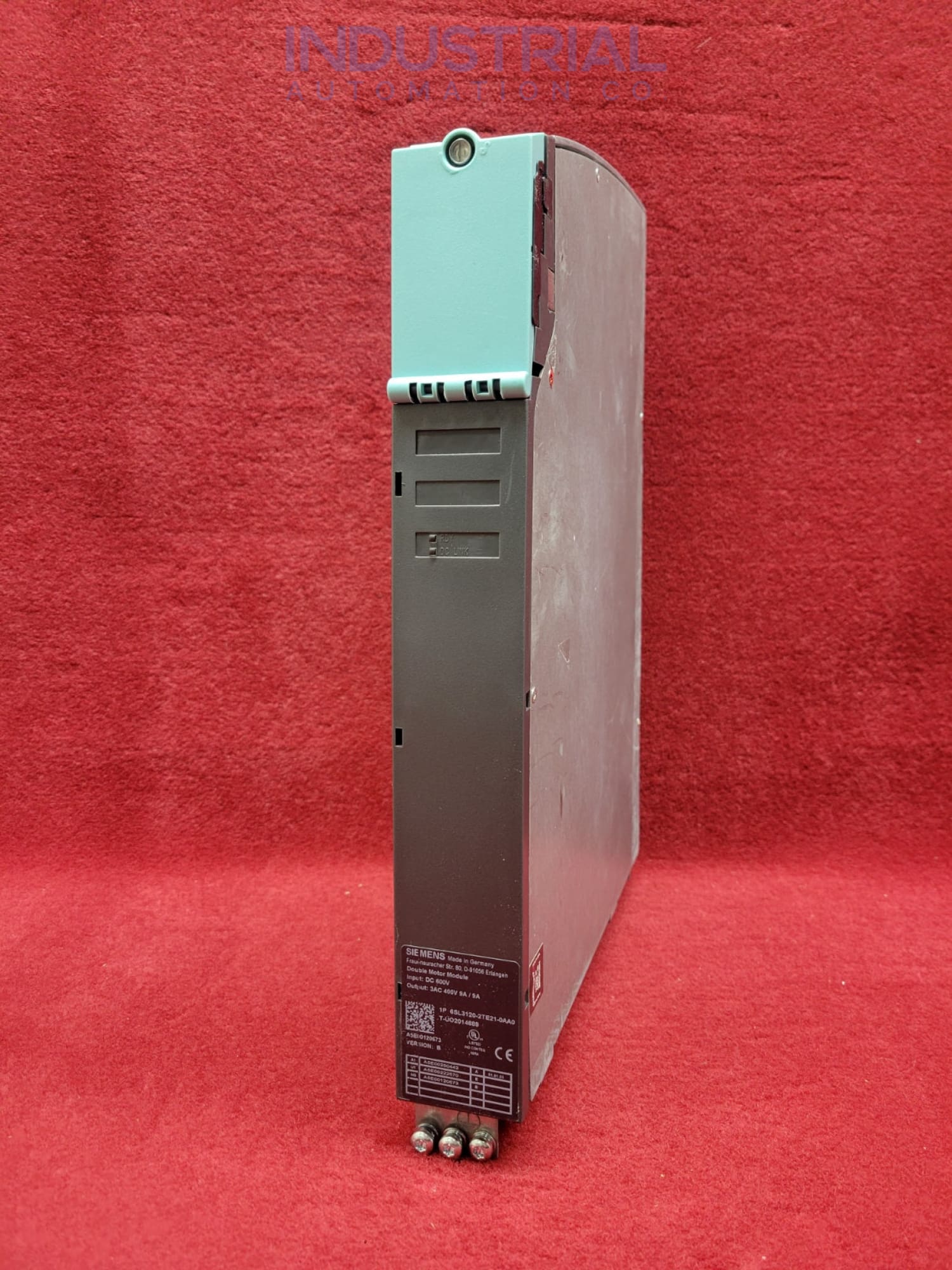

The Siemens 6SL3120-2TE21-0AA0 is a SINAMICS S120 double motor module in booksize format. It converts the 600 V DC link of an S120 drive lineup into a variable-frequency three-phase output to operate two motor axes, and is used in multi-axis servo and motion control systems such as machine tools, packaging machinery, printing and converting lines, and general production machinery.
The module connects to the drive lineup through the integrated DC busbar system and communicates with the SINAMICS S120 control unit over DRIVE-CLiQ; a DRIVE-CLiQ cable is included. It supports optimized pulse patterns and the extended Safety Integrated functions.
Technical Specifications
| Manufacturer | Siemens |
| Series | SINAMICS S120 |
| Product type | Double Motor Module |
| Input voltage | 600 V DC (DC link) |
| Output voltage | 3 AC 400 V |
| Rated output current | 9 A / 9 A |
| Rated power | 4.8 kW per axis |
| Format | Booksize |
| Cooling | Internal air cooling |
| Communication | DRIVE-CLiQ (cable included) |
| Safety | Extended Safety Integrated functions supported |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $299/yr+3 yrs → 5 total $266/yr+5 yrs → 7 total $199/yrBEST VALUE+8 yrs → 10 total $149/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SL3120-2TE21-0AA0 is a SINAMICS S120 double motor module in booksize format. It converts the 600 V DC link of an S120 drive lineup into a variable-frequency three-phase output to operate two motor axes, and is used in multi-axis servo and motion control systems such as machine tools, packaging machinery, printing and converting lines, and general production machinery.
The module connects to the drive lineup through the integrated DC busbar system and communicates with the SINAMICS S120 control unit over DRIVE-CLiQ; a DRIVE-CLiQ cable is included. It supports optimized pulse patterns and the extended Safety Integrated functions.
Technical Specifications
Manufacturer Siemens Series SINAMICS S120 Product type Double Motor Module Input voltage 600 V DC (DC link) Output voltage 3 AC 400 V Rated output current 9 A / 9 A Rated power 4.8 kW per axis Format Booksize Cooling Internal air cooling Communication DRIVE-CLiQ (cable included) Safety Extended Safety Integrated functions supported -
Part Number Breakdown
Part number reference — 6SL3120-2TE21-0AA0
SINAMICS DOUBLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3AC 400 V, 9 A/9 A INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE
Official Siemens catalog description.
Product family SINAMICS S120 Single Motor Module (Booksize) Series SINAMICS S120 Type power module Fault codes (937)
Troubleshooting reference for the SINAMICS S120 / S150 Drive System:
- Fault A01006 — Firmware update for DRIVE-CLiQ component required
- Fault A01007 — POWER ON for DRIVE-CLiQ component required
- Fault A01009 (N) — CU: Control module overtemperature
- Fault A01013 — CU: Fan operating time reached or exceeded
- Fault A01016 (F) — Firmware changed
- Fault A01017 — Component lists changed
- Fault A01020 — Writing to RAM disk unsuccessful
- Fault A01032 (F) — ACX: all parameters must be saved
- Fault A01035 (F) — ACX: Parameter back-up file corrupted
- Fault A01045 — CU: Configuring data invalid
- Fault A01049 — CU: It is not possible to write to file
- Fault A01064 — CU: Internal error (CRC)
See all 937 fault codes for this series →
