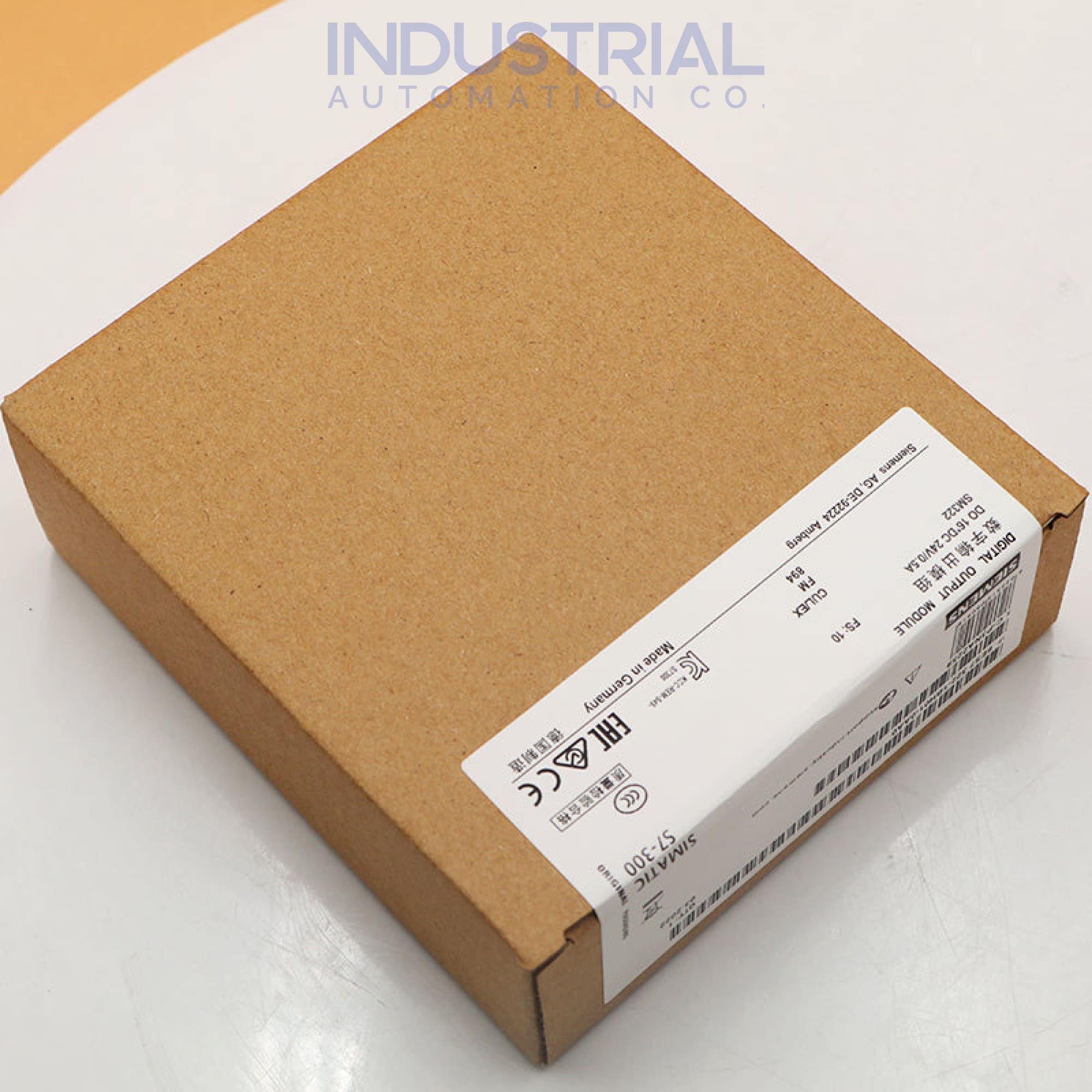

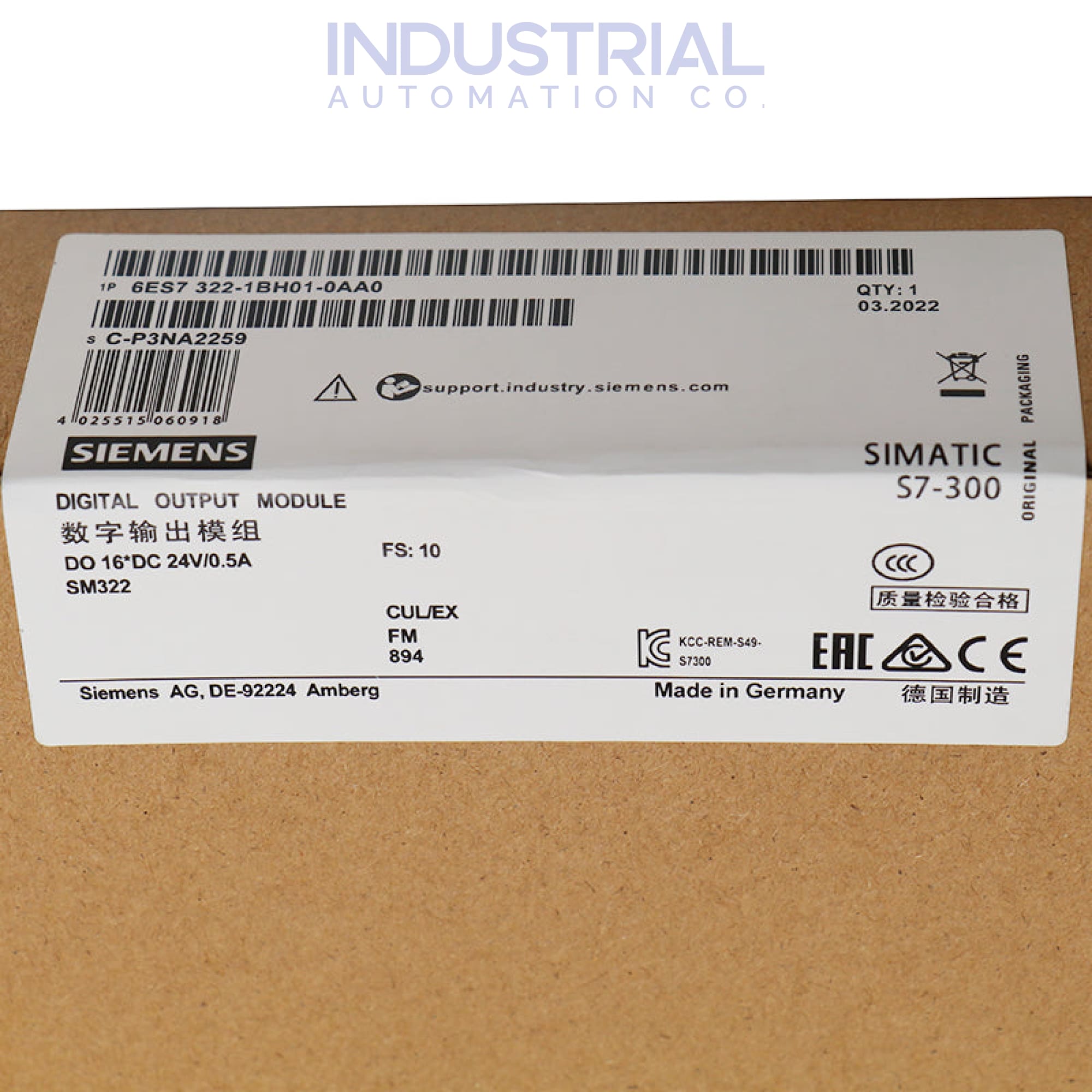

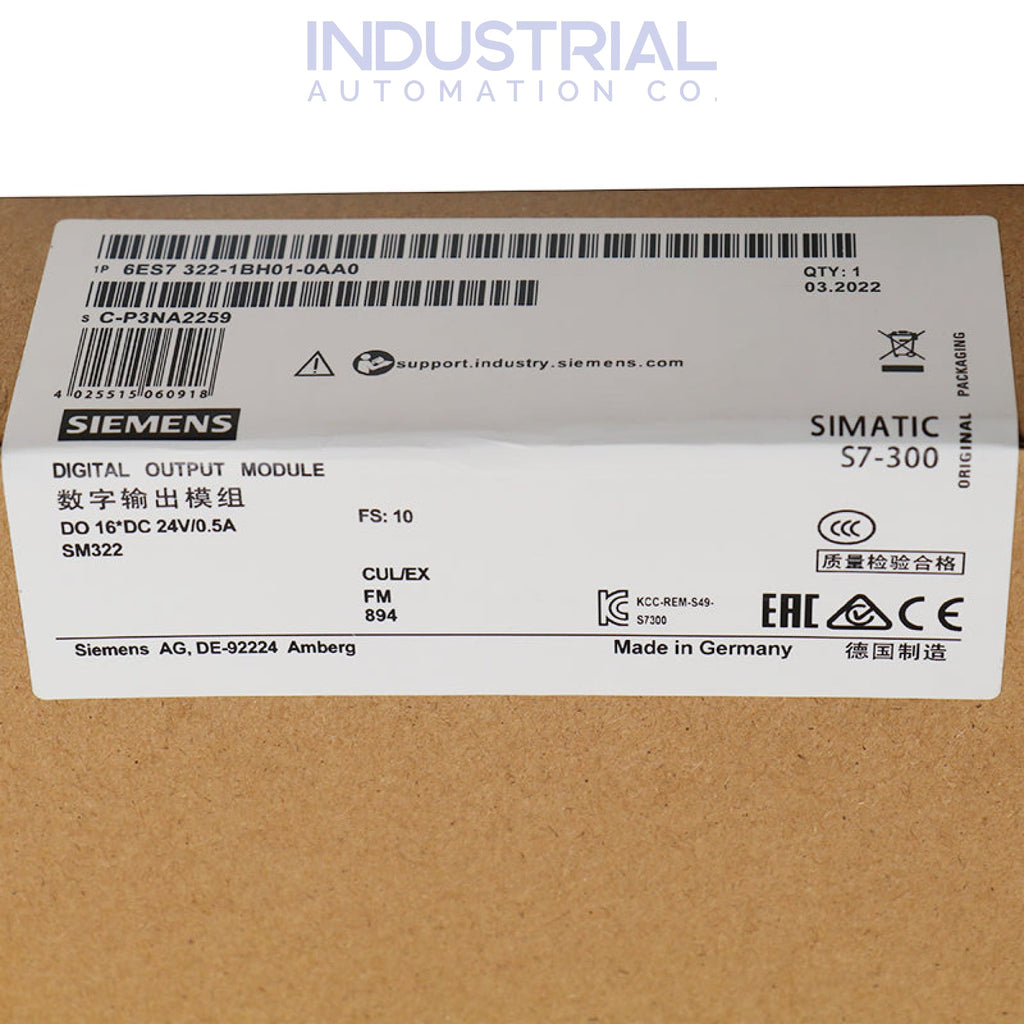

Siemens 6ES7322-1BH01-0AA0
SKU: 6ES7322-1BH01-0AA0-FS
We have 3 in stock
Estimated delivery: September 10th - September 12th
Order for next-day shipment.
- Regular price
-
$727.00
- Sale price
- $727.00
New
$727
3 in stock
Ships today
IAC Certified Refurbished
Available
Request a quote
Description

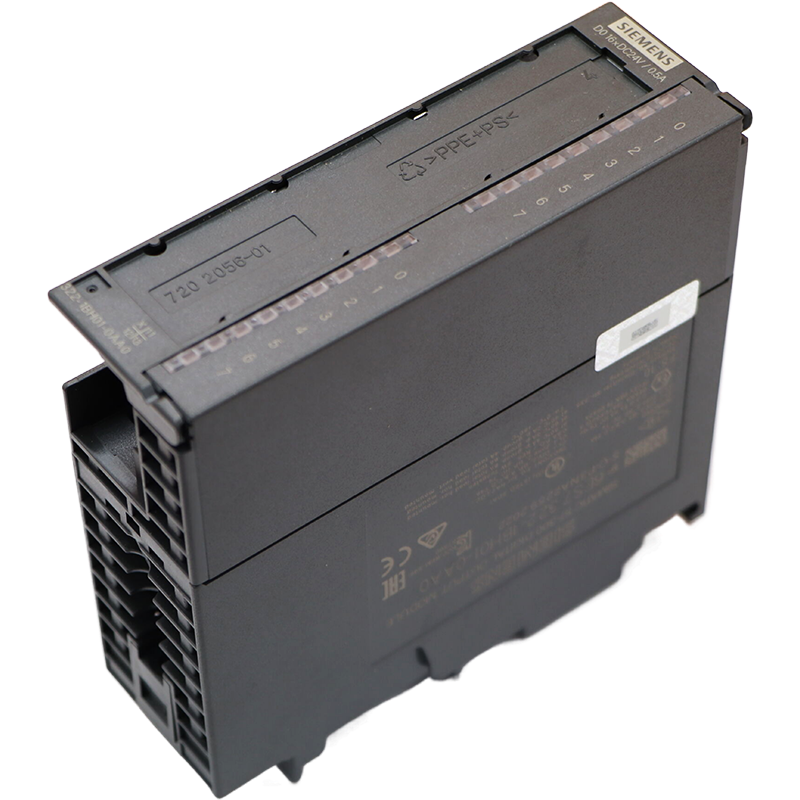

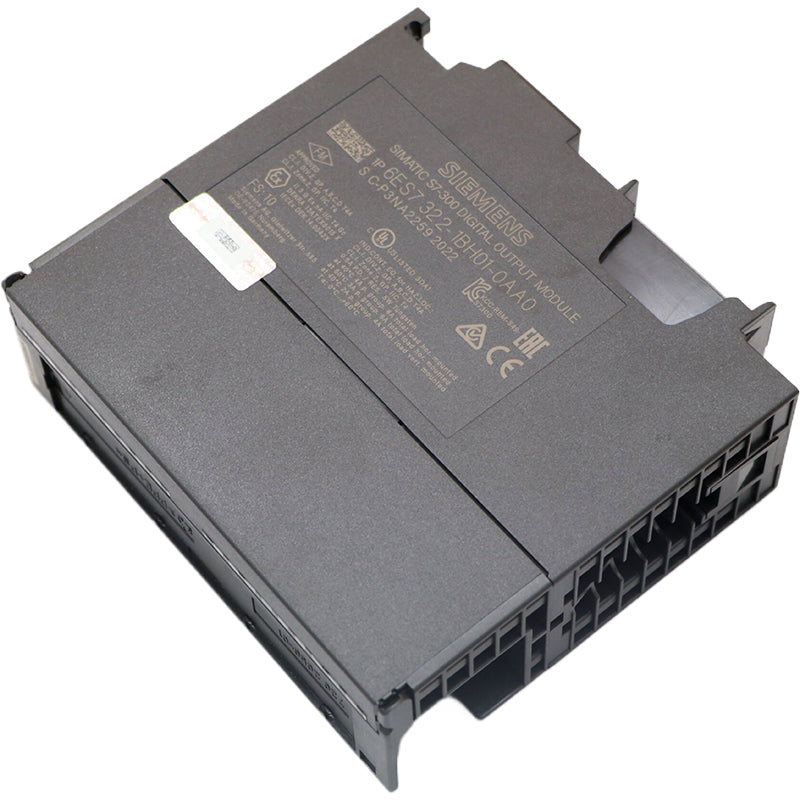

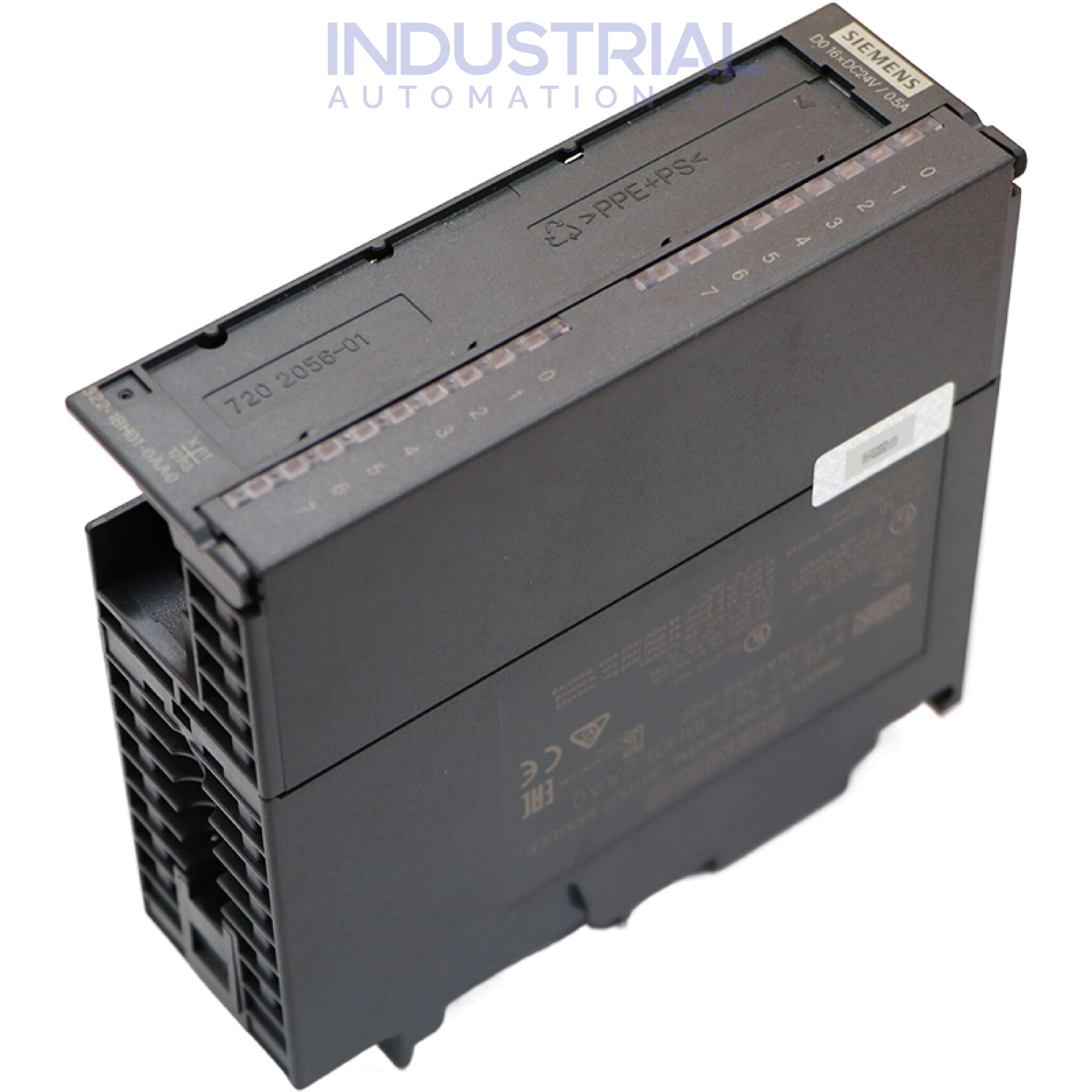

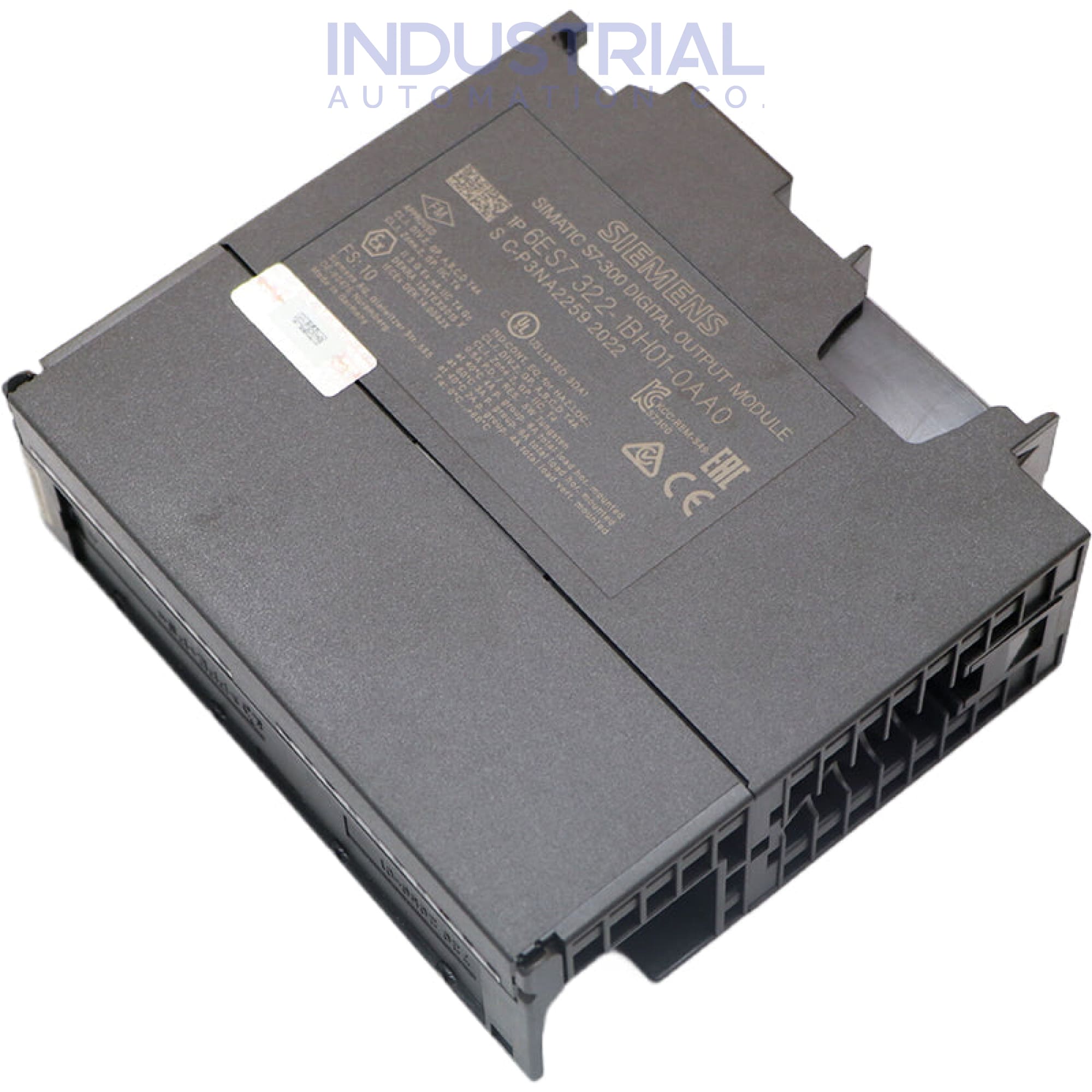

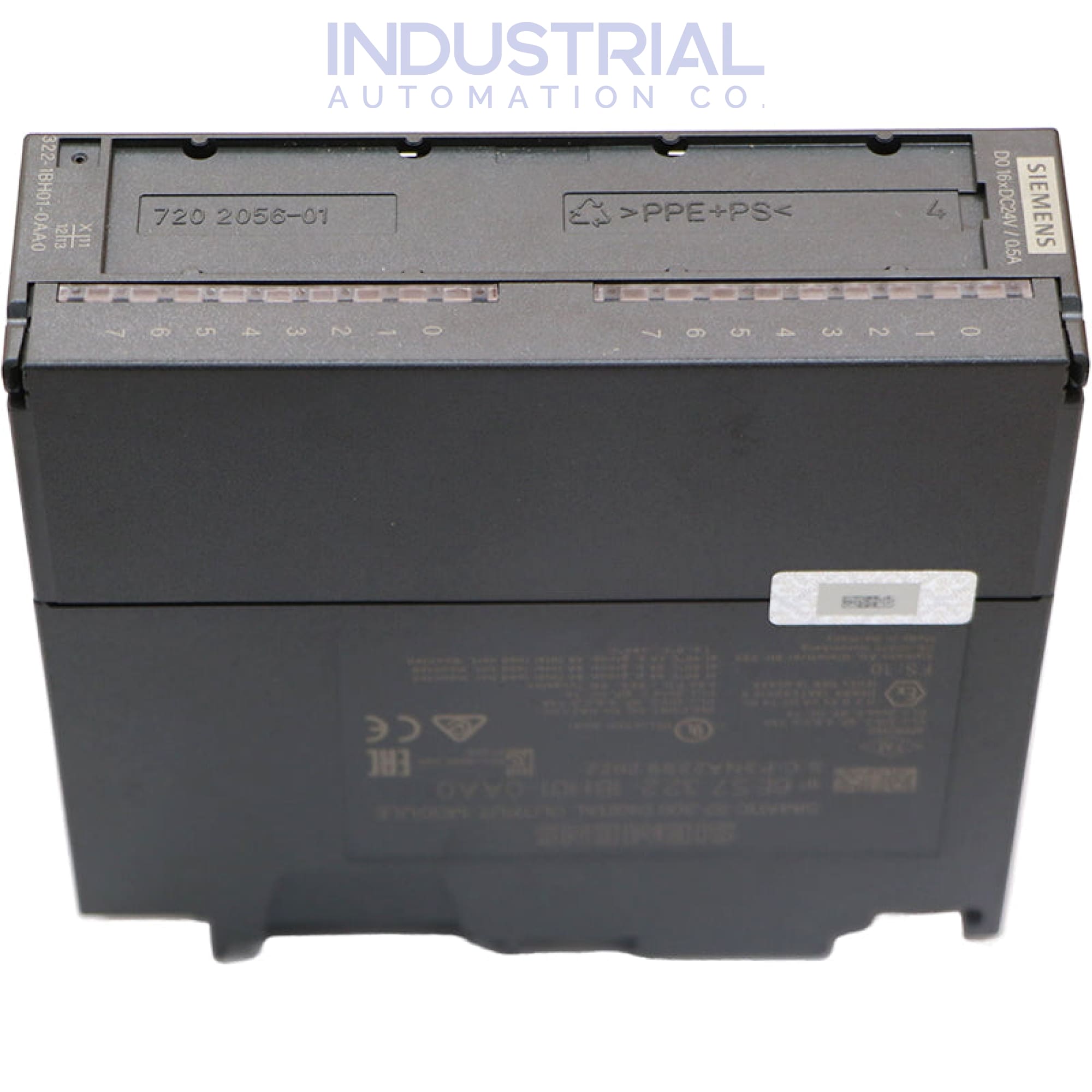

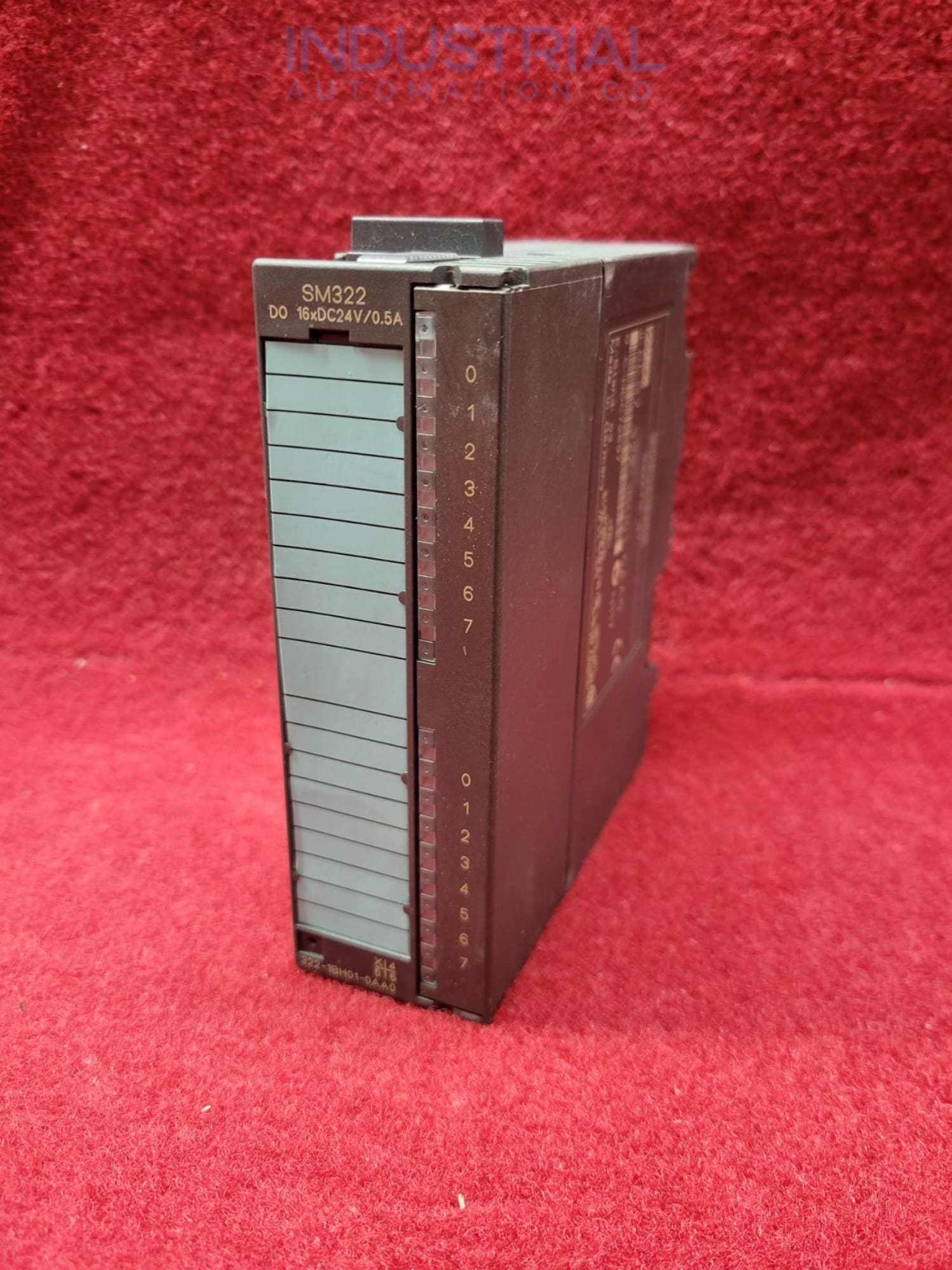

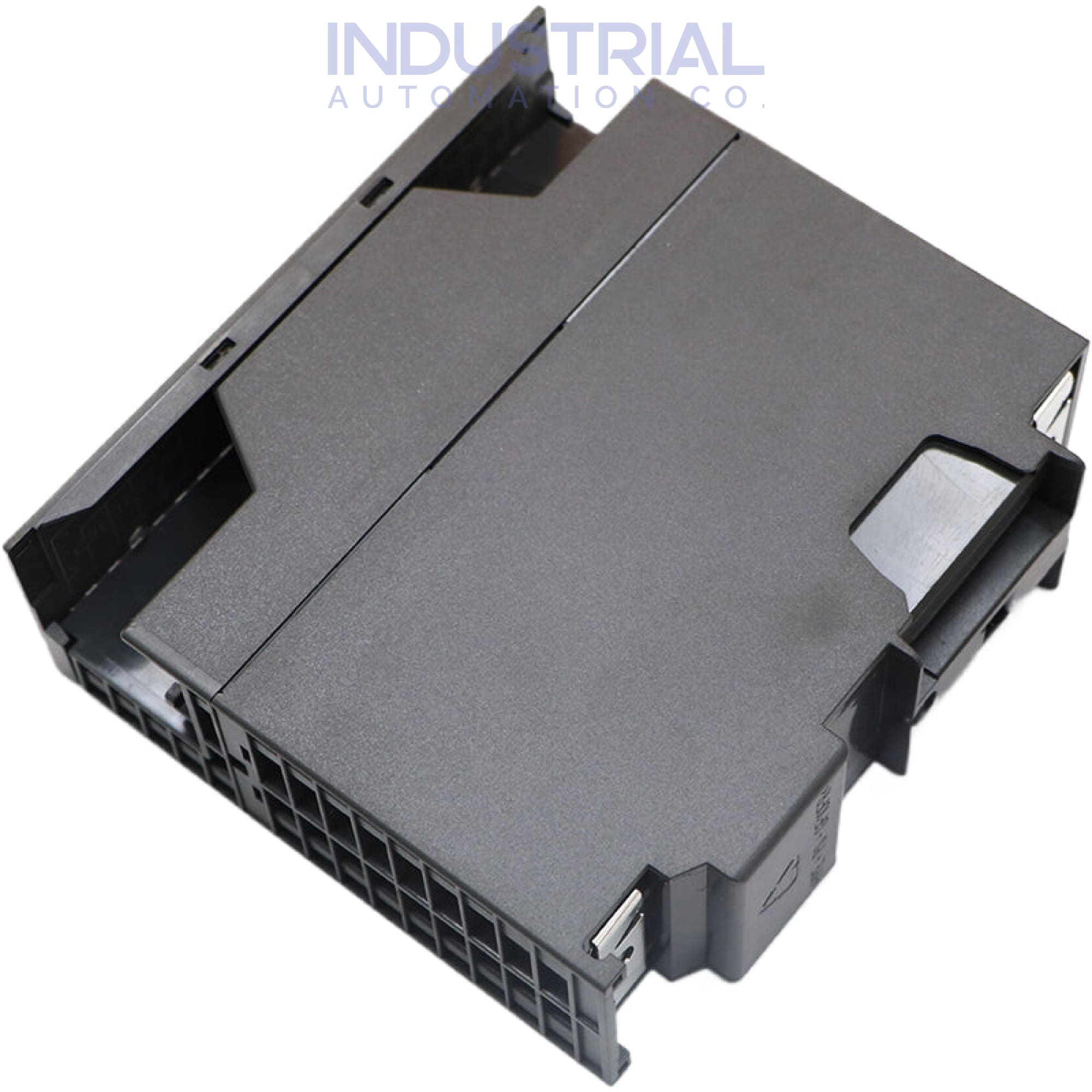

The Siemens 6ES7322-1BH01-0AA0 is a SIMATIC S7-300 SM 322 digital output module with 16 isolated outputs rated 0.5 A at 24 V DC. It switches loads such as contactors, solenoid valves, relays, and indicator lamps under control of the S7-300 CPU.
The module mounts on the S7-300 rail and requires a 1x 20-pin front connector (sold separately).
Technical Specifications
| Series | SIMATIC S7-300, SM 322 |
| Module type | Digital output module |
| Outputs | 16 DO, isolated |
| Output voltage | 24 V DC |
| Output current | 0.5 A per channel |
| Aggregate current | 4 A per group, 8 A per module |
| Front connector | 1x 20-pin (required, not included) |
| Mounting | S7-300 mounting rail |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $109/yr+3 yrs → 5 total $97/yr+5 yrs → 7 total $73/yrBEST VALUE+8 yrs → 10 total $55/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6ES7322-1BH01-0AA0 is a SIMATIC S7-300 SM 322 digital output module with 16 isolated outputs rated 0.5 A at 24 V DC. It switches loads such as contactors, solenoid valves, relays, and indicator lamps under control of the S7-300 CPU.
The module mounts on the S7-300 rail and requires a 1x 20-pin front connector (sold separately).
Technical Specifications
Series SIMATIC S7-300, SM 322 Module type Digital output module Outputs 16 DO, isolated Output voltage 24 V DC Output current 0.5 A per channel Aggregate current 4 A per group, 8 A per module Front connector 1x 20-pin (required, not included) Mounting S7-300 mounting rail -
Part Number Breakdown
Part number reference — 6ES7322-1BH01-0AA0
SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 16 DO, 24V DC, 0.5A, 1 X 20 PIN SUM OF OUTPUT CURRENTS 4A/GROUP (8A/MODULE)
Official Siemens catalog description.
Product family SIMATIC S7-300 Digital Output Module SM 322 Series SIMATIC S7-300 Type io module Questions or need a quote? Call 877-727-8757 or email sales@iac.us.com.
-
