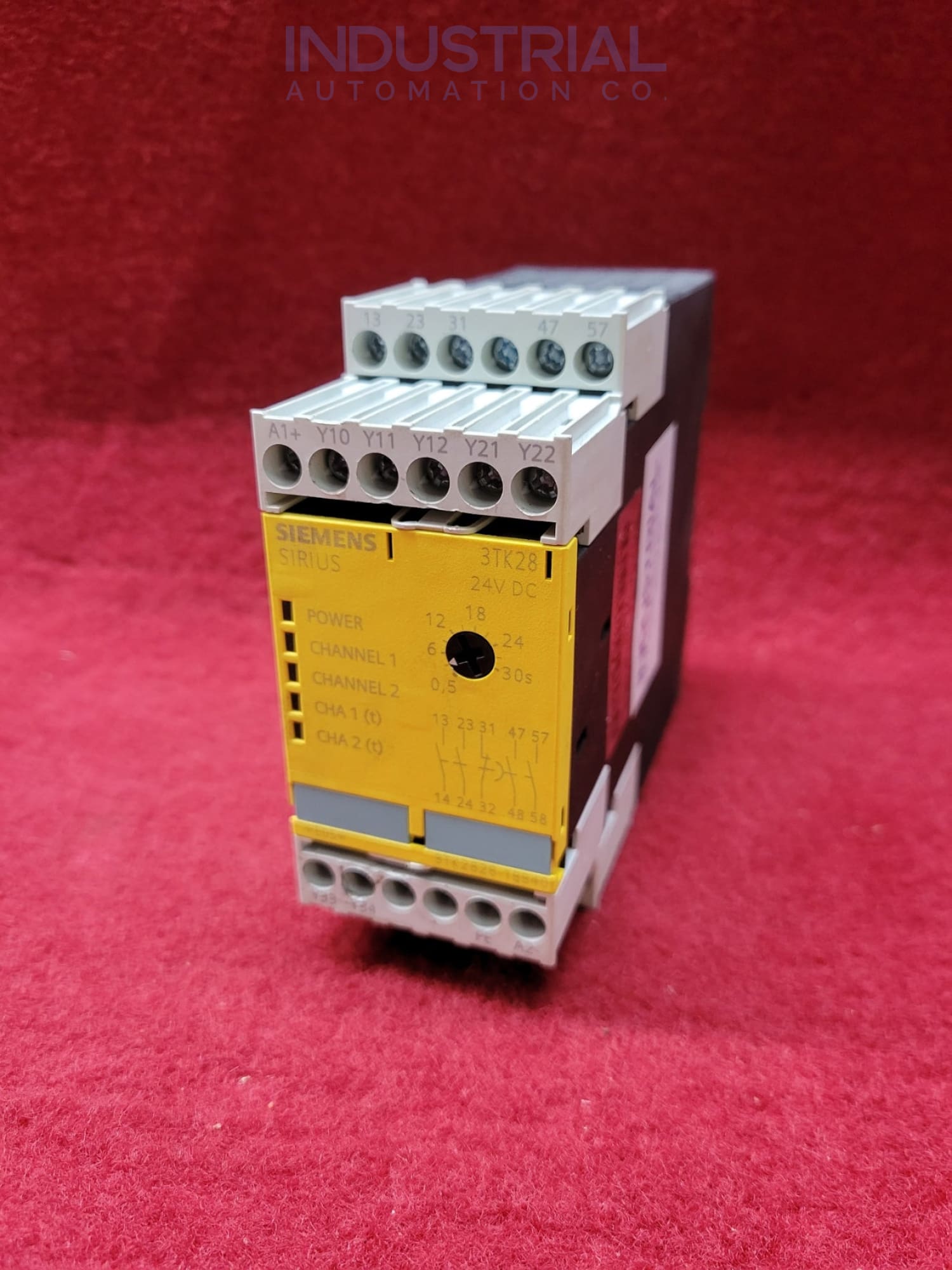

Siemens 3TK2828-1BB40 IAC Certified Refurbished

Siemens 3TK2828-1BB40

SKU: 3TK2828-1BB40-R

Estimated delivery: June 9th - June 11th

Order for next-day shipment.

This product is not available for online purchase.

Use the Request a quote to get the pricing

IAC Certified Refurbished
Available
Request a quote

Description

  • 3TK28281BB40
  • DISCONTINUED BY MANUFACTURER 10/01/2020
  • SAFETY RELAY
  • SIRIUS
  • WITH RELAY ENABLING CIRCUITS (EC)
  • 24 VDC
  • SCREW TERMINAL
  • 2 NO DELAYED: 0.5 TO 30 S
  • 1 NC AUTOSTART
  • PREFERRED SUCCESSOR: 3SK1121-1CB42 (NO SIGNALING CONTACT)
More payment options

Secure payment options

  • Guaranteed response within 24 hours

    Submit an RFQ and receive a quick, reliable quote from our team to keep your operations moving.

    More about shipping

  • 24 month warranty

    Twice the industry standard—full protection against defects for 2 full years.

    More about warranty

  • Multiple conditions available

    Multiple sourcing paths to help you control costs without compromising performance.

    More about warranty

  • Best catalog

    Large U.S. inventory and fast sourcing for Mitsubishi, Siemens, Schneider & more.

    Read More
  • Buying Options

    All products are covered by Industrial Automation Co.'s 2-Year Warranty.

    Condition SKU Price Warranty Availability Quantity Purchase
    IAC Certified Refurbished 3TK2828-1BB40-R 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
  • Description
    • 3TK28281BB40
    • DISCONTINUED BY MANUFACTURER 10/01/2020
    • SAFETY RELAY
    • SIRIUS
    • WITH RELAY ENABLING CIRCUITS (EC)
    • 24 VDC
    • SCREW TERMINAL
    • 2 NO DELAYED: 0.5 TO 30 S
    • 1 NC AUTOSTART
    • PREFERRED SUCCESSOR: 3SK1121-1CB42 (NO SIGNALING CONTACT)
  • Specifications
    Safety Evaluation Units / Time-Delayed Relays
    3TK2828-1BB40
    A high-reliability safety evaluation unit designed for Stop Category 1 applications. Featuring two instantaneous NO contacts and one time-delayed NO contact (adjustable from 0.05 to 3 seconds) for controlled machine deceleration.
    Input Voltage
    24 V DC
    Safety Rating
    SIL 3 / PL e
    Key Features
    • Adjustable Delay: 0.05s to 3s
    • Screw terminal connection system
    • 22.5mm compact industrial housing
    A1
    A2
    MODEL 3TK2828
    Delay Settings
    13
    14
    22.5mm Standard Width
    Technical Specifications
    Electrical Data
    Supply Voltage
    24 V DC
    Power Consumption
    2.5 W
    Operating Range
    0.85 ... 1.15 Us
    Contact Configuration
    Instantaneous NO
    2 Contacts
    Delayed NO
    1 Contact
    Switching Capacity (AC-15)
    3 A (230V)
    Safety & Housing
    Safety Integrity Level
    SIL 3
    Performance Level
    PL e
    Enclosure Rating
    IP40 / IP20
    Stop Category 1: Switching Logic
    Control Input (A1/A2)
    E-STOP TRIGGER (at 33.3%)
    Instant Contacts (13/14, 23/24)
    Delayed Contacts (37/38)
    Adjustable Delay (0.05 - 3.0s)
    (Depicted as the interval between E-STOP trigger and delayed contact release.)
    Wiring & Terminal Mapping
    A1
    Y1
    Y2
    --
    FRONT VIEW
    14
    24
    38
    A2
    A1 / A2
    Control Supply Voltage (24V DC)
    13 / 14 & 23 / 24
    Instantaneous Safety Contacts (NO)
    37 / 38
    Time-Delayed Safety Contact (NO)
    Y1 / Y2
    Feedback / Start Circuit
    Note: Tightening torque for terminal screws: 0.8 ... 1.2 Nm (approx. 7 to 10.5 lb-in). Ensure correct polarity for 24V DC supply on A1/A2.
