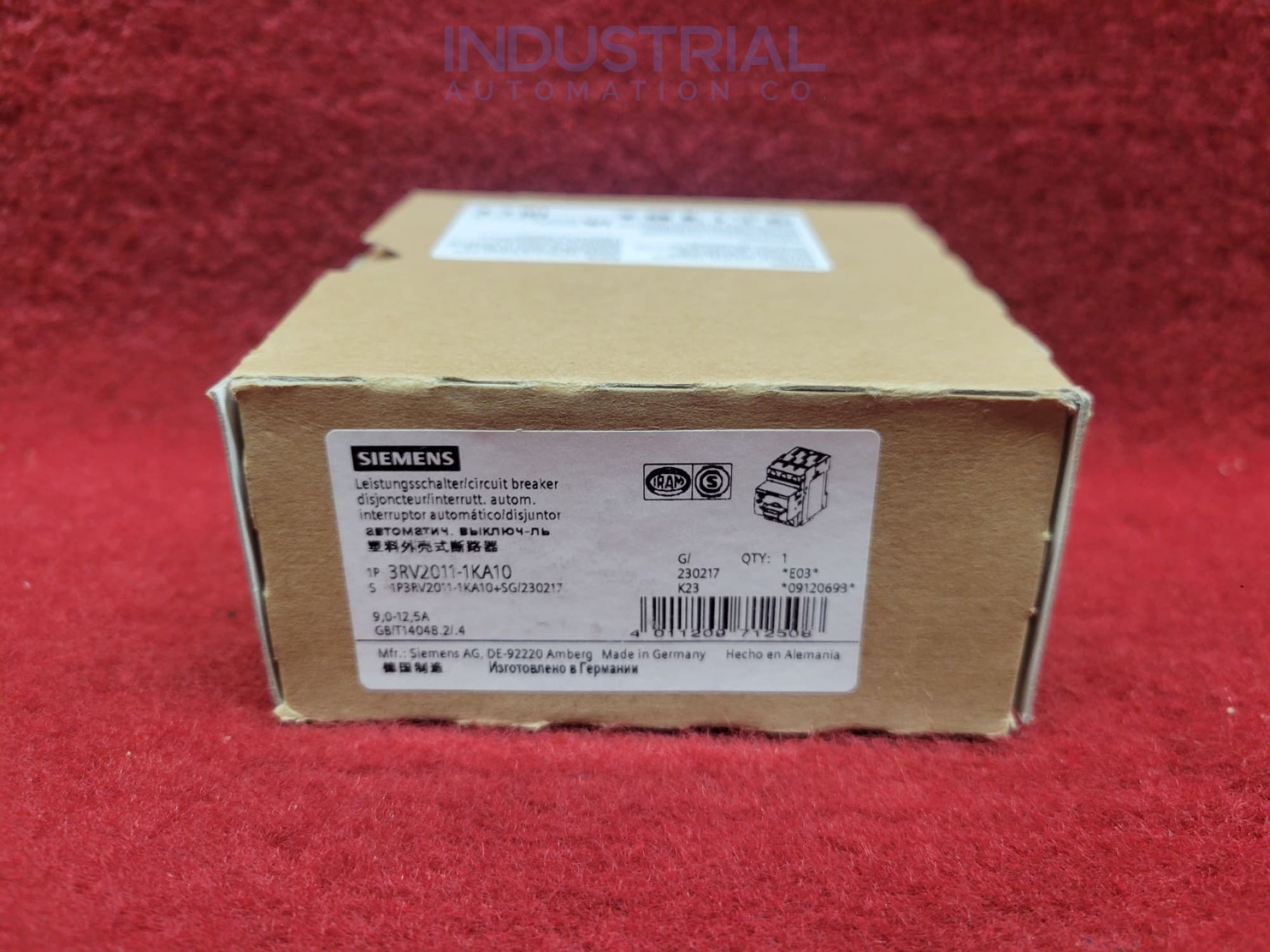

Siemens 3RV2011-1KA10
SKU: 3RV2011-1KA10-FS
2 in stock
Estimated delivery: October 29th - November 2nd
Order for next-day shipment.
- Regular price
- $151.00
- Sale price
- $151.00
New
$151
In Stock
Description
The Siemens 3RV2011-1KA10 is a SIRIUS 3RV motor protection circuit breaker (manual motor starter), frame size S00, with a Class 10 thermal overload release adjustable from 9 - 12.5 A and an instantaneous short-circuit release. It provides motor branch protection and disconnect in control panels and motor control assemblies.
Technical Specifications
| Manufacturer | Siemens |
| Series | SIRIUS 3RV |
| Type | Motor Protection Circuit Breaker |
| Frame Size | S00 |
| Trip Class | Class 10 |
| Overload Setting Range | 9 - 12.5 A |
| Short-Circuit Release | 163 A |
| Rated Insulation Voltage | 690 V AC |
| Poles | 3 |
| Protection Function | Motor protection |
| Terminals | Screw terminals |
| Mounting | 35 mm DIN rail or screw mounting |
Industrial Automation Co. offers the 3RV2011-1KA10 in New and IAC Certified Refurbished condition. Contact our sales team for availability, pricing, and lead time.
-
Buying Options
-
Description
The Siemens 3RV2011-1KA10 is a SIRIUS 3RV motor protection circuit breaker (manual motor starter), frame size S00, with a Class 10 thermal overload release adjustable from 9 - 12.5 A and an instantaneous short-circuit release. It provides motor branch protection and disconnect in control panels and motor control assemblies.
Technical Specifications
Manufacturer Siemens Series SIRIUS 3RV Type Motor Protection Circuit Breaker Frame Size S00 Trip Class Class 10 Overload Setting Range 9 - 12.5 A Short-Circuit Release 163 A Rated Insulation Voltage 690 V AC Poles 3 Protection Function Motor protection Terminals Screw terminals Mounting 35 mm DIN rail or screw mounting Industrial Automation Co. offers the 3RV2011-1KA10 in New and IAC Certified Refurbished condition. Contact our sales team for availability, pricing, and lead time.
-
Part Number Breakdown
Part number reference — 3RV2011-1KA10
Product family SIRIUS 3RV2 Motor Protection Circuit Breaker (Size S00, Class 10) Series SIRIUS Type motor starter protector Questions or need a quote? Call 877-727-8757 or email sales@iac.us.com.
-
