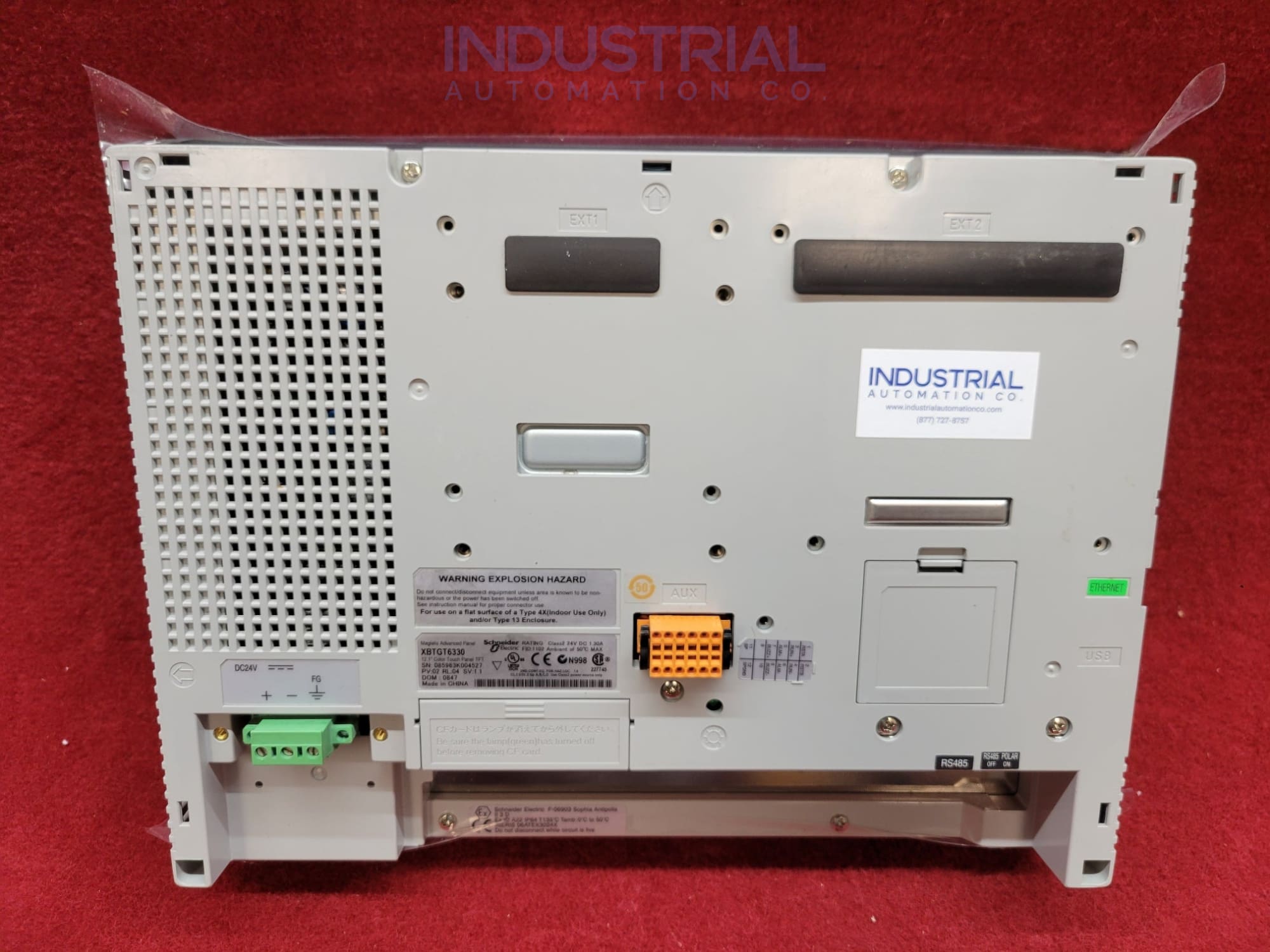

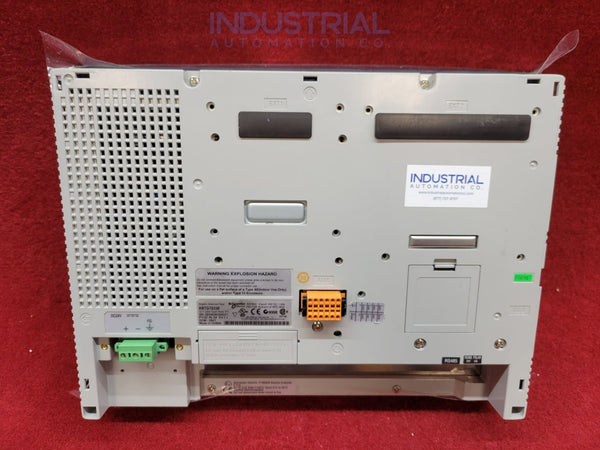

Schneider Electric XBTGT6330 HMI: Optimized Touchscreen Panel for Industrial Automation

The Schneider Electric XBTGT6330 Human-Machine Interface (HMI) is engineered to meet the rigorous demands of industrial automation and process control. As part of the Magelis XBTGT series, this advanced touchscreen panel is specifically designed to enhance operational efficiency and facilitate real-time monitoring in a variety of industrial applications, from manufacturing lines to process plants.

High-Performance Display for Enhanced Monitoring

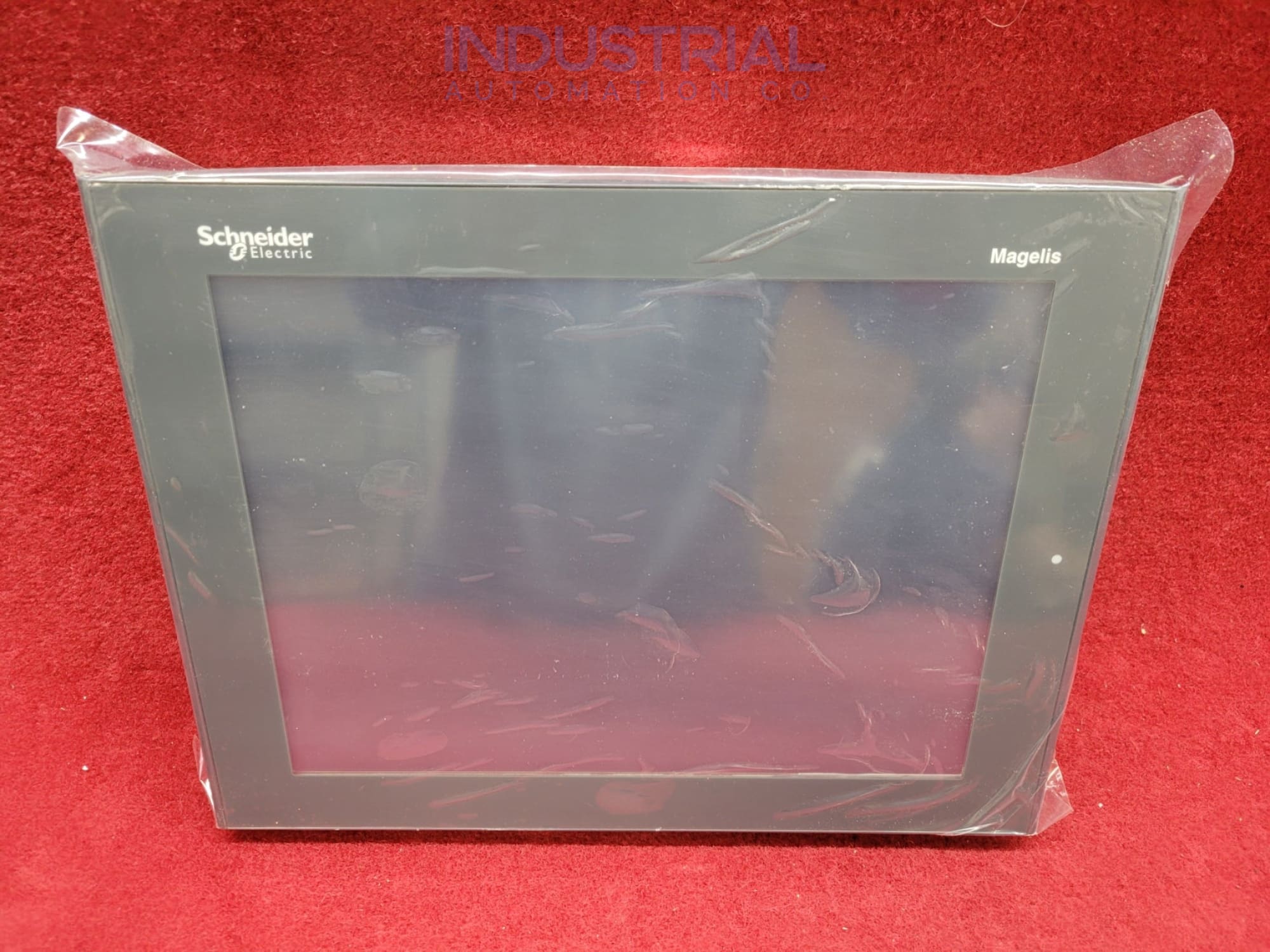

The XBTGT6330 features a 12.1-inch backlit color TFT LCD with an SVGA resolution of 800 x 600 pixels, supporting up to 65,536 colors. This high-resolution display provides exceptional clarity for monitoring complex data and processes, making it ideal for environments where precision is critical. The adjustable brightness across eight levels ensures optimal visibility, even in challenging lighting conditions, while the expansive touch-sensitive area (1024 x 1024) allows for quick and accurate user inputs, enhancing operational responsiveness in fast-paced settings.

Customizable User Interface for Diverse Applications

Equipped with Schneider Electric's Vijeo Designer software, the XBTGT6330 allows engineers and technicians to tailor the HMI to specific operational requirements. The software supports multiple character fonts, including various Asian languages, making it suitable for global operations. This flexibility enables the HMI to be adapted for diverse industrial applications, ensuring that operators can efficiently control processes and respond to real-time data.

Reliable Performance and Robust Data Management

Powered by a 266 MHz RISC CPU, the XBTGT6330 delivers dependable performance for demanding automation tasks. The built-in 512 kB SRAM, supported by a lithium battery, ensures data integrity during power interruptions. Additionally, the compact flash card slot accommodates storage capacities from 128 MB to 1 GB, allowing for extensive logging of configuration data and system events. The inclusion of a real-time clock facilitates precise time-stamping of operations, crucial for time-sensitive industrial processes.

Versatile Connectivity for Seamless Integration

The XBTGT6330 is designed with multiple communication interfaces, including an Ethernet port (10BASE-T/100BASE-TX) and a COM2 serial link (RJ45 RS485), supporting Siemens MPI communication up to 187.5 kbit/s. It is compatible with a wide range of communication protocols such as Modbus, Modbus TCP, and Modbus Plus, along with third-party protocols from major manufacturers like Mitsubishi
