Schneider Electric S33595 Circuit Breaker Test Kit: Application-Focused Overview

The Schneider Electric S33595 Circuit Breaker Test Kit is an essential tool for engineers and technicians tasked with the testing and maintenance of circuit breakers in various industrial environments. This advanced test kit is designed to enhance the reliability and safety of electrical systems by providing comprehensive testing capabilities that ensure operational integrity.

Versatile Testing Capabilities

Engineers will appreciate the S33595's versatility, as it is compatible with a wide range of circuit breakers, making it suitable for diverse applications across power generation facilities, industrial plants, and commercial buildings. The kit offers multiple functions to evaluate circuit breaker performance, including insulation resistance tests, trip time measurements, and functional tests. This versatility allows technicians to conduct thorough assessments, ensuring that circuit breakers operate within their specified parameters.

Operational Efficiency and Flexibility

The S33595 operates within a nominal voltage range of 115–230 Vac, accommodating the varying voltage requirements found in many electrical systems. With a voltage range of 102–144 Vac and 207–253 Vac, as well as support for both 50 Hz and 60 Hz operating frequencies, this test kit is equipped to handle the complexities of different electrical environments. This flexibility is crucial for technicians who need to perform accurate tests under varying conditions, thereby improving the efficiency of maintenance operations.

Precision and Reliability in Testing

One of the standout features of the S33595 is its trip time resolution of 1 ms, which allows for precise measurement of circuit breaker response times. This capability is vital for evaluating the trip characteristics of circuit breakers, enabling engineers to identify potential issues before they lead to system failures. Additionally, the kit maintains a control tolerance range of 22.8–25.2 Vdc, ensuring that testing results are both accurate and reliable, which is essential for maintaining the integrity of electrical systems.

Robust Design for Field Use

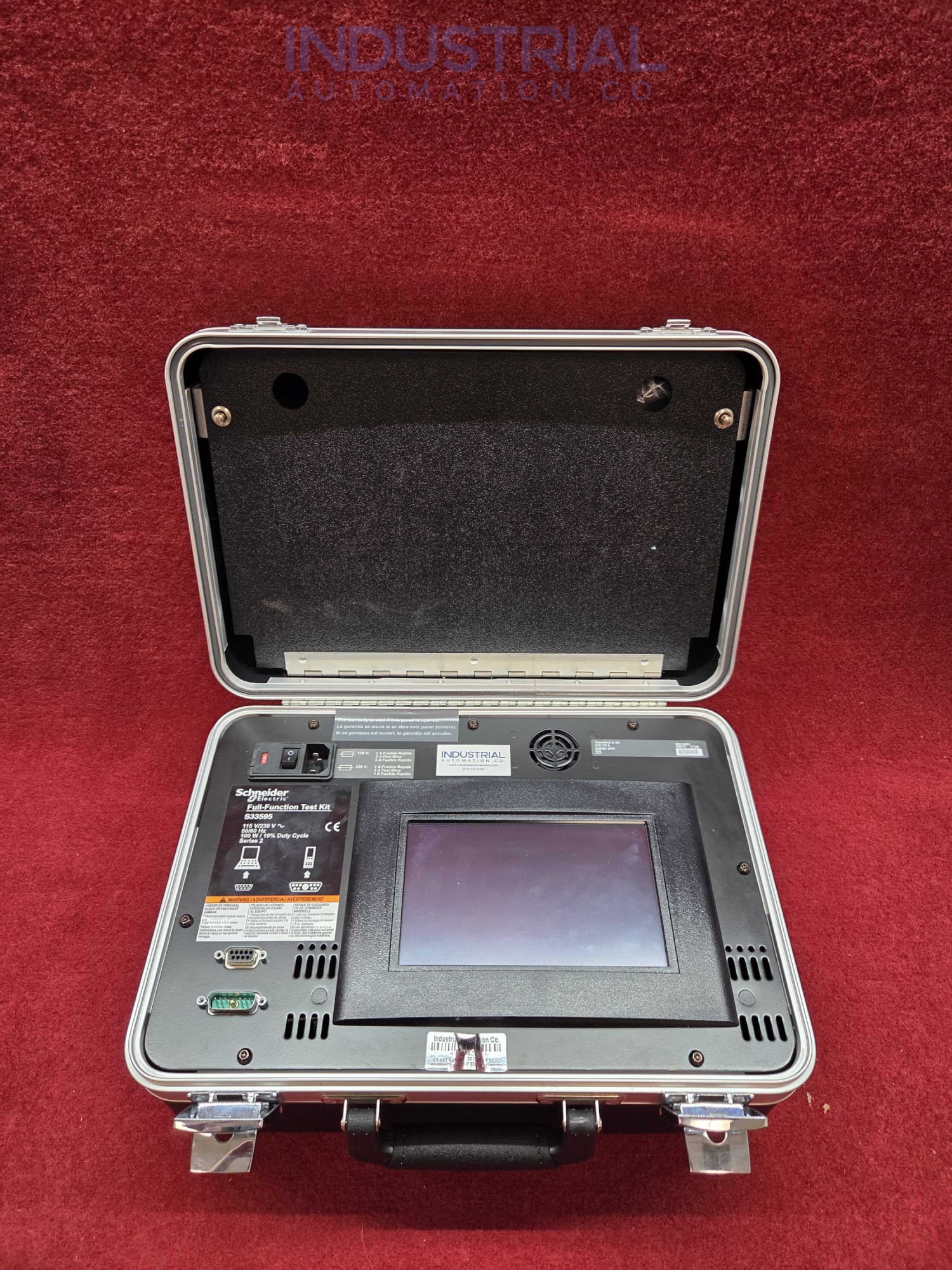

The S33595 comes equipped with a protective case that enhances its durability, making it suitable for field operations. This case safeguards the equipment against environmental hazards, ensuring that the test kit remains operational even in challenging conditions. The robust design is particularly beneficial for technicians who frequently transport their equipment between job sites, as it minimizes the risk of damage during transit.

Real-World Applications

In practical terms, the Schneider Electric S33595 Circuit Breaker Test Kit is indispensable in scenarios where circuit breakers are critical to operational safety and efficiency. For instance, in power generation facilities, regular
