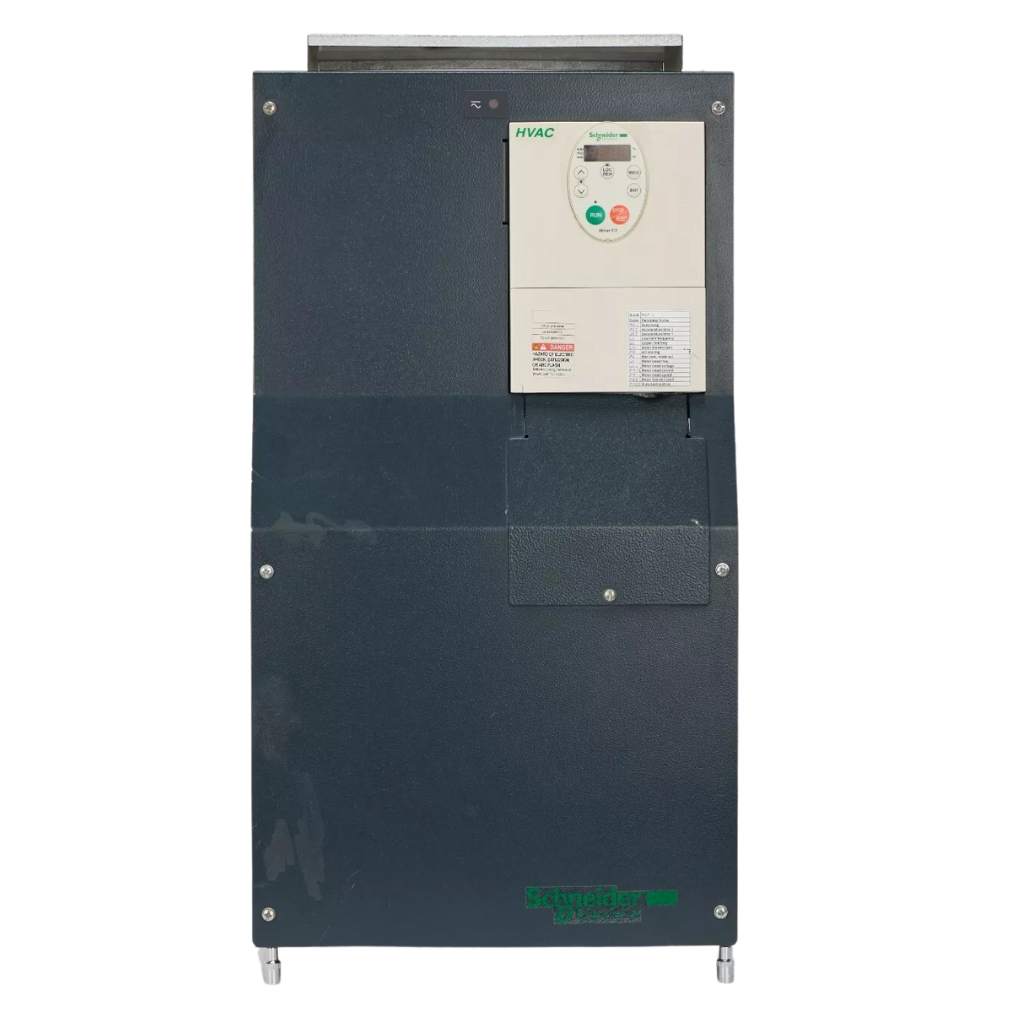

Schneider Electric Altivar 212 Variable Speed Drive ATV212HD75N4

The ATV212HD75N4 is a 75 kW (100 HP) variable speed drive engineered for efficient control of three-phase asynchronous motors. Suitable for supply voltages ranging from 380V to 480V AC, it is optimized for HVAC applications, providing enhanced energy savings and system reliability. This drive includes an integrated EMC filter and boasts an IP21 protection rating.

• Rated Output Power: 75 kW (100 HP)
• Supply Voltage: 380V to 480V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes
• Protection Rating: IP21
• Applications: HVAC systems, including heating, ventilation, air conditioning, and pumping
• Dimensions (W x H x D): 320 mm x 630 mm x 290 mm
• Weight: 32 kg

With its eco-energy design, the ATV212HD75N4 can reduce energy consumption by up to 70% compared to traditional control methods, making it an excellent choice for building management systems.
