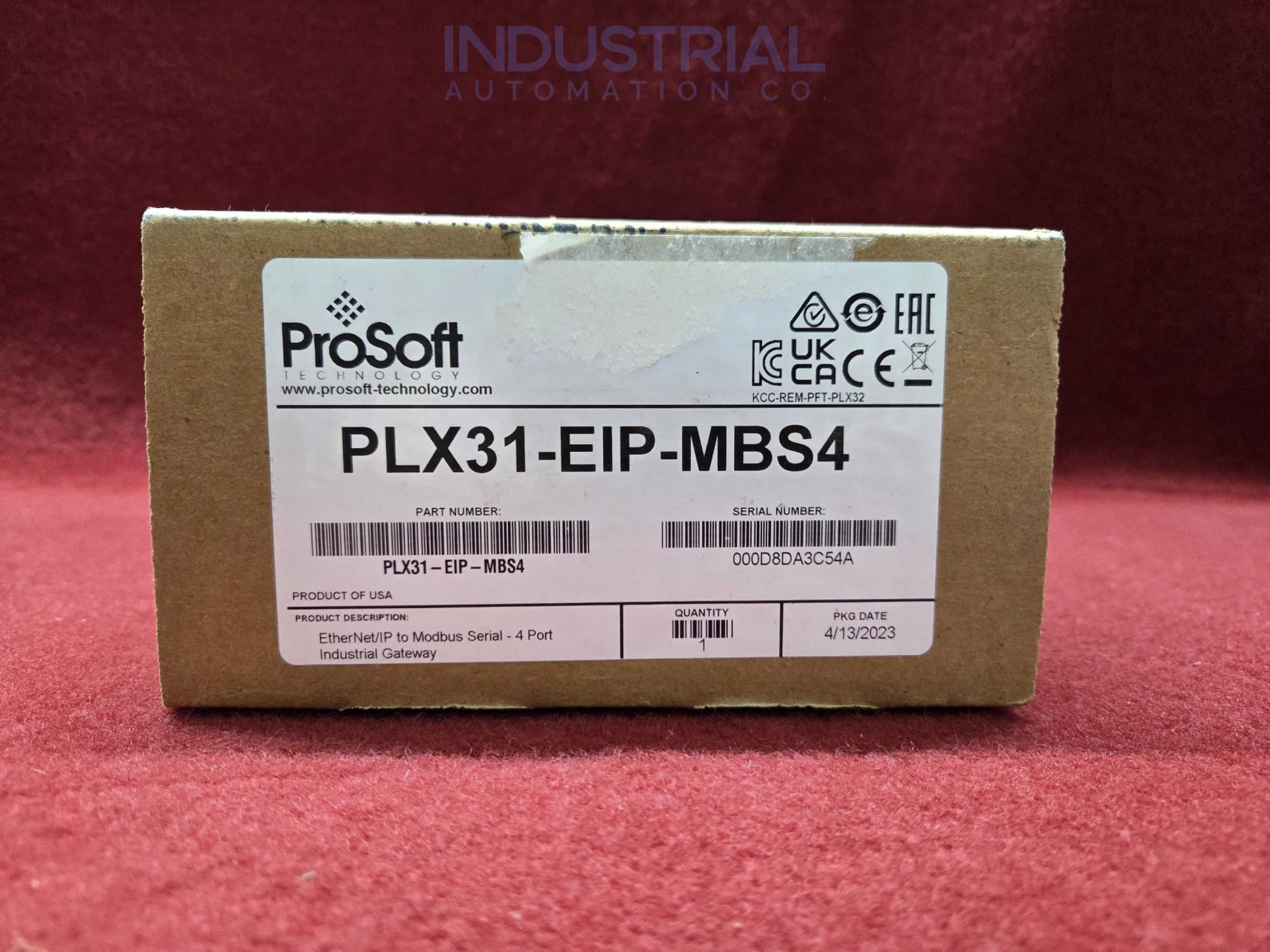

ProSoft PLX31-EIP-MBS4
SKU: PLX31-EIP-MBS4-FS
In stock
Estimated delivery: October 13th - October 15th
Order for next-day shipment.
Description
The ProSoft Technology PLX31-EIP-MBS4 is a standalone EtherNet/IP to Modbus serial communication gateway with four serial ports, allowing multiple Modbus RTU/ASCII networks or daisy chains to be brought into an EtherNet/IP control system through a single device. Typical applications include integrating meters, drives, and instrumentation into plant Ethernet architectures.
The gateway is DIN-rail mounted, powered from 24 VDC, and configured with ProSoft Configuration Builder.
Technical Specifications
| Manufacturer | ProSoft Technology |
| Part Number | PLX31-EIP-MBS4 |
| Product Type | Communication gateway |
| Protocol Side A | EtherNet/IP |
| Protocol Side B | Modbus serial (RTU/ASCII) |
| Serial Ports | 4 |
| Supply Voltage | 24 VDC |
| Mounting | DIN rail |
| Configuration | ProSoft Configuration Builder |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $299/yr+3 yrs → 5 total $266/yr+5 yrs → 7 total $200/yrBEST VALUE+8 yrs → 10 total $150/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The ProSoft Technology PLX31-EIP-MBS4 is a standalone EtherNet/IP to Modbus serial communication gateway with four serial ports, allowing multiple Modbus RTU/ASCII networks or daisy chains to be brought into an EtherNet/IP control system through a single device. Typical applications include integrating meters, drives, and instrumentation into plant Ethernet architectures.
The gateway is DIN-rail mounted, powered from 24 VDC, and configured with ProSoft Configuration Builder.
Technical Specifications
Manufacturer ProSoft Technology Part Number PLX31-EIP-MBS4 Product Type Communication gateway Protocol Side A EtherNet/IP Protocol Side B Modbus serial (RTU/ASCII) Serial Ports 4 Supply Voltage 24 VDC Mounting DIN rail Configuration ProSoft Configuration Builder -
