ProSoft MVI56-ADM
SKU: MVI56-ADM-FS
1 in stock
Estimated delivery: November 10th - November 12th
Order for next-day shipment.
Description

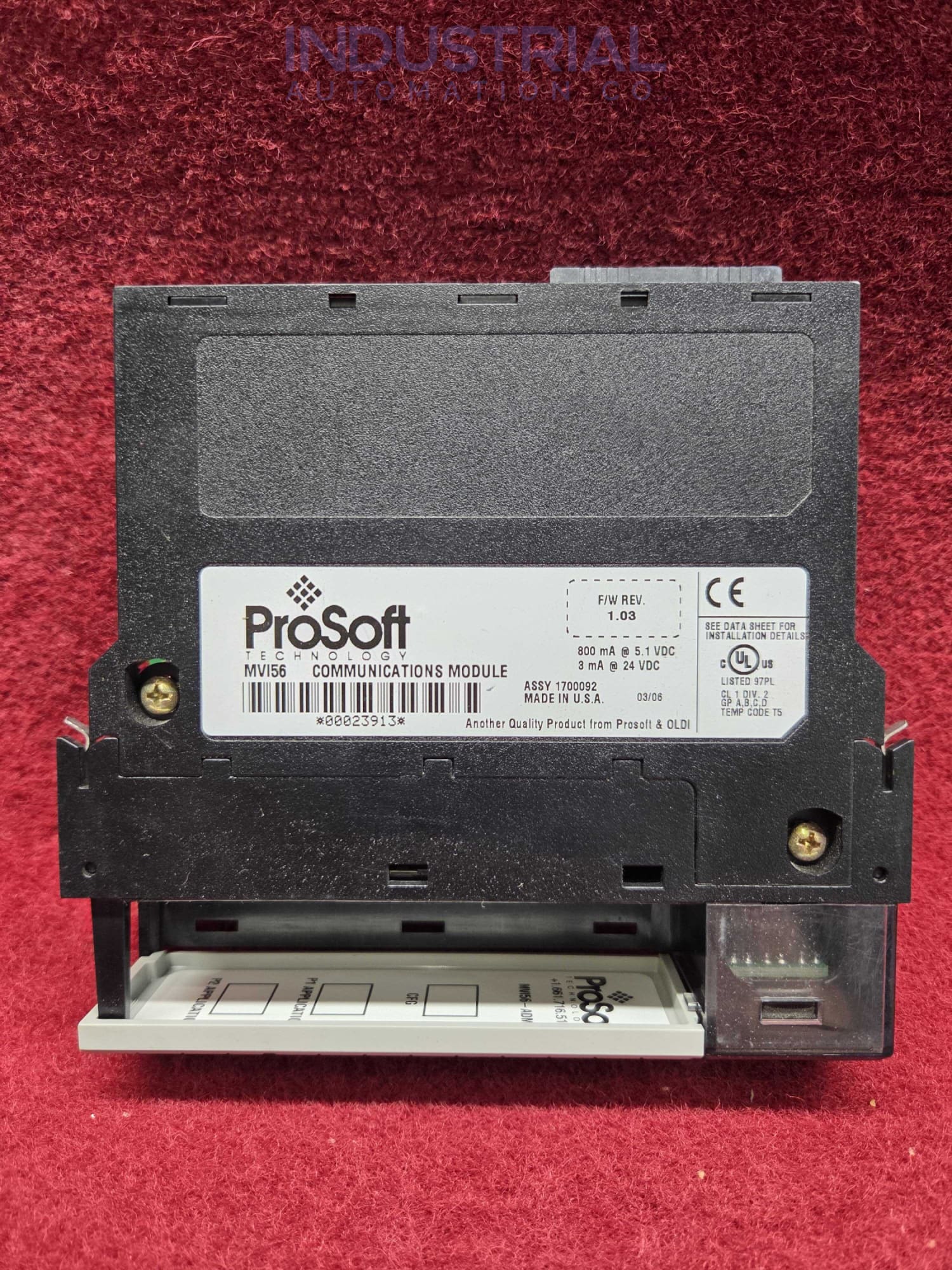

The ProSoft Technology MVI56-ADM is a C-programmable application development module for 1756-format in-chassis platforms. It lets engineers deploy custom serial and ASCII communication algorithms on a dedicated coprocessor module, offloading protocol work from the main controller. The module provides two application serial ports plus a debug/configuration port in a single chassis slot.
Backplane load is approximately 800 mA at 5.1 VDC, with 0-60 degrees C operation and CE/ATEX-conforming design.
Technical Specifications
| Manufacturer | ProSoft Technology |
| Part Number | MVI56-ADM |
| Product Type | C-programmable application development module |
| Application Ports | 2 serial |
| Configuration Port | 1 debug/config serial |
| Slot Requirement | Single slot |
| Backplane Current | 800 mA at 5.1 VDC |
| Operating Temperature | 0 to 60 C |
| Conformance | CE, ATEX-conforming design |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $449/yr+3 yrs → 5 total $399/yr+5 yrs → 7 total $300/yrBEST VALUE+8 yrs → 10 total $225/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The ProSoft Technology MVI56-ADM is a C-programmable application development module for 1756-format in-chassis platforms. It lets engineers deploy custom serial and ASCII communication algorithms on a dedicated coprocessor module, offloading protocol work from the main controller. The module provides two application serial ports plus a debug/configuration port in a single chassis slot.
Backplane load is approximately 800 mA at 5.1 VDC, with 0-60 degrees C operation and CE/ATEX-conforming design.
Technical Specifications
Manufacturer ProSoft Technology Part Number MVI56-ADM Product Type C-programmable application development module Application Ports 2 serial Configuration Port 1 debug/config serial Slot Requirement Single slot Backplane Current 800 mA at 5.1 VDC Operating Temperature 0 to 60 C Conformance CE, ATEX-conforming design -
Specifications
Manufacturer and Product Information
Part Number/Catalog No. MVI56-ADM Product Type 'C' Programmable Application Development Module Slot(s) 1 Rack Type Local or Remote Technical Specifications
Data Transfer Type Ladder Logic Baud Rate 110 to 115,200 Optical Isolation from Backplane 500V CFG Port RJ45 Shock 30g Operational Backplane Current Load 800 mA at 5 Volts DC -
