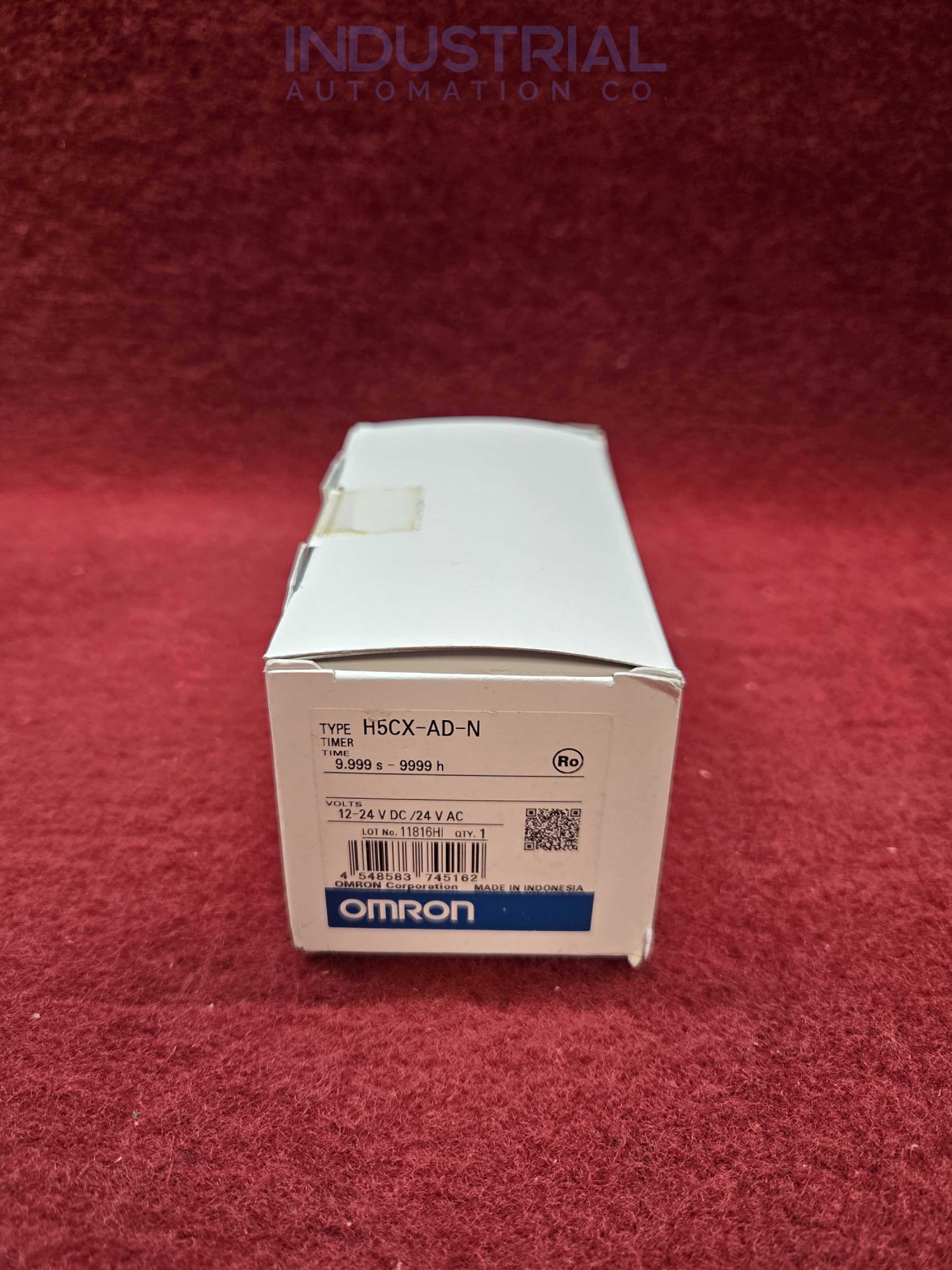

Omron H5CX-AD-N
SKU: H5CX-AD-N-FS
3 in stock
Estimated delivery: November 16th - November 18th
Order for next-day shipment.
- Regular price
- $497.00
- Sale price
- $497.00
New
$497
In Stock
Ships Today
Description
The Omron H5CX-AD-N is a digital timer from the H5CX series in the 1/16 DIN panel-mount format. This standard single-stage model covers common timing duties such as delay-on, interval, and one-shot operation, selectable from the front panel along with the time range.
It operates from 12-24 VDC or 24 VAC supplies and switches its load through a time-limit SPDT contact output, making it a drop-in timing element for control panels.
Technical Specifications
| Series | H5CX |
| Unit type | Digital timer |
| Configuration | Single stage, standard type |
| Size | 1/16 DIN (48 x 48 mm), panel mount |
| Supply voltage | 12-24 VDC / 24 VAC (50/60 Hz) |
| Output | SPDT time-limit contact |
| Wiring | Screw terminals |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $75/yr+3 yrs → 5 total $66/yr+5 yrs → 7 total $50/yrBEST VALUE+8 yrs → 10 total $37/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Omron H5CX-AD-N is a digital timer from the H5CX series in the 1/16 DIN panel-mount format. This standard single-stage model covers common timing duties such as delay-on, interval, and one-shot operation, selectable from the front panel along with the time range.
It operates from 12-24 VDC or 24 VAC supplies and switches its load through a time-limit SPDT contact output, making it a drop-in timing element for control panels.
Technical Specifications
Series H5CX Unit type Digital timer Configuration Single stage, standard type Size 1/16 DIN (48 x 48 mm), panel mount Supply voltage 12-24 VDC / 24 VAC (50/60 Hz) Output SPDT time-limit contact Wiring Screw terminals -
