Maple Systems SM031032
SKU: SM031032
In stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $0.00
- Sale price
- $0.00
New
$0
In stock
Description

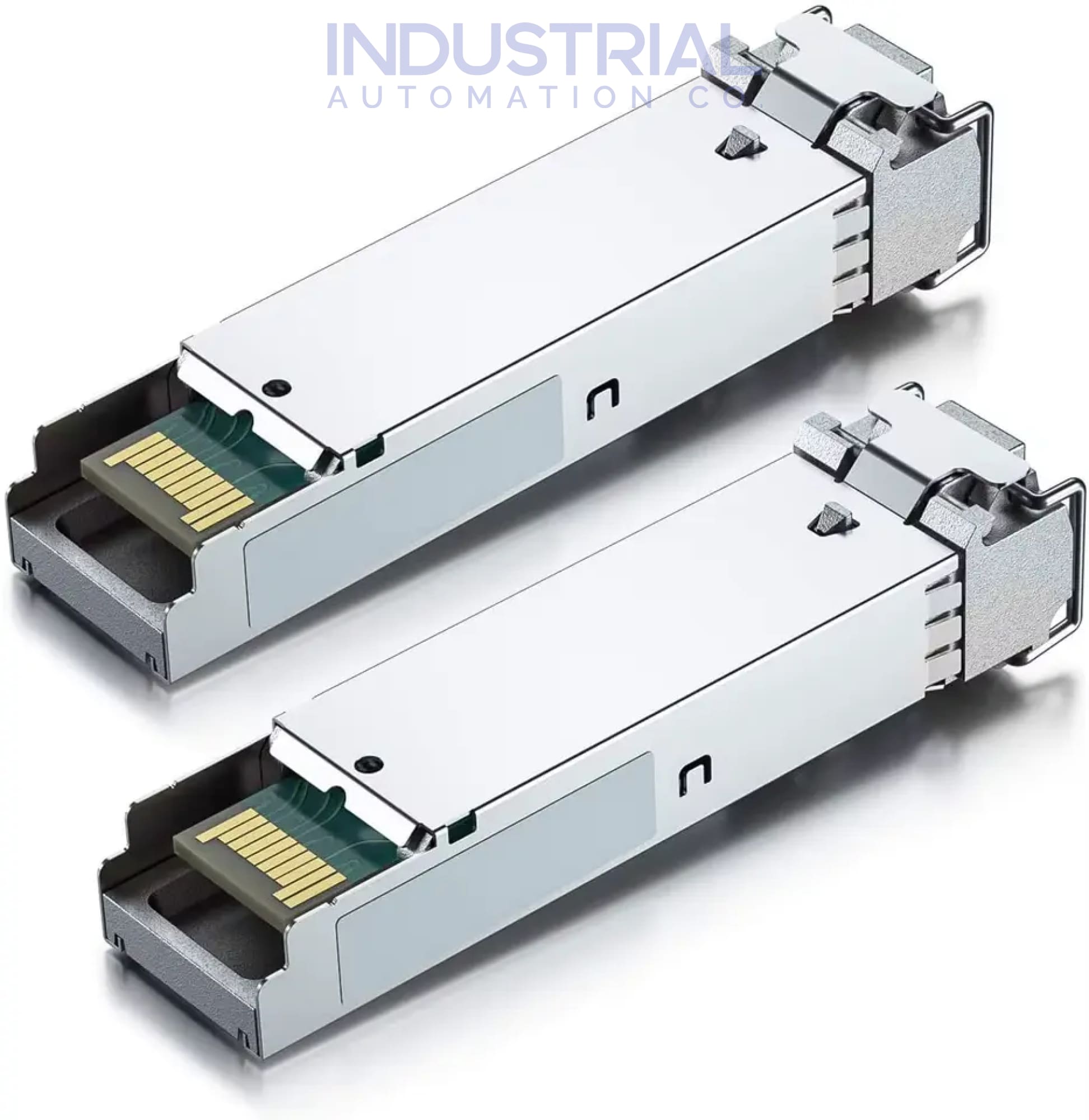

The Maple Systems SM031032 is a 1000Base-LX bidirectional (BiDi) SFP transceiver module for gigabit Ethernet over a single strand of singlemode fiber. It transmits at 1310 nm and receives at 1490 nm, with a reach of up to 20 km through a single LC connector, halving the fiber count needed for long links. It plugs into the SFP port of the Maple Systems MS1-L05G01F managed Ethernet switch.
A simplex singlemode patch cable (such as the SC030001/SC030004/SC030005 OS2 cables) is required and sold separately. BiDi transceivers are used in matched pairs with opposite wavelength assignments.
Technical Specifications
| Part Number | SM031032 |
| Type | SFP transceiver module, BiDi |
| Standard | 1000Base-LX |
| Data Rate | 1.25 Gbps |
| Wavelengths | 1310 nm TX / 1490 nm RX |
| Reach | Up to 20 km |
| Connector | Single LC |
| Fiber Type | Singlemode (SMF) |
| Typical Use | SFP port of MS1-L05G01F switch |
-
Buying Options
-
Description
The Maple Systems SM031032 is a 1000Base-LX bidirectional (BiDi) SFP transceiver module for gigabit Ethernet over a single strand of singlemode fiber. It transmits at 1310 nm and receives at 1490 nm, with a reach of up to 20 km through a single LC connector, halving the fiber count needed for long links. It plugs into the SFP port of the Maple Systems MS1-L05G01F managed Ethernet switch.
A simplex singlemode patch cable (such as the SC030001/SC030004/SC030005 OS2 cables) is required and sold separately. BiDi transceivers are used in matched pairs with opposite wavelength assignments.
Technical Specifications
Part Number SM031032 Type SFP transceiver module, BiDi Standard 1000Base-LX Data Rate 1.25 Gbps Wavelengths 1310 nm TX / 1490 nm RX Reach Up to 20 km Connector Single LC Fiber Type Singlemode (SMF) Typical Use SFP port of MS1-L05G01F switch -
