Maple Systems SM012022
SKU: SM012022
In stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $0.00
- Sale price
- $0.00
New
$0
In stock
Description

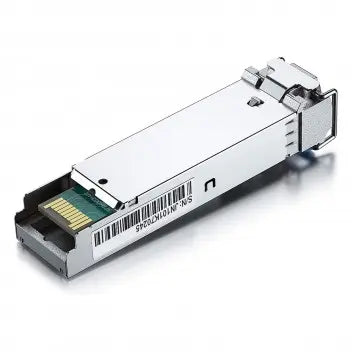

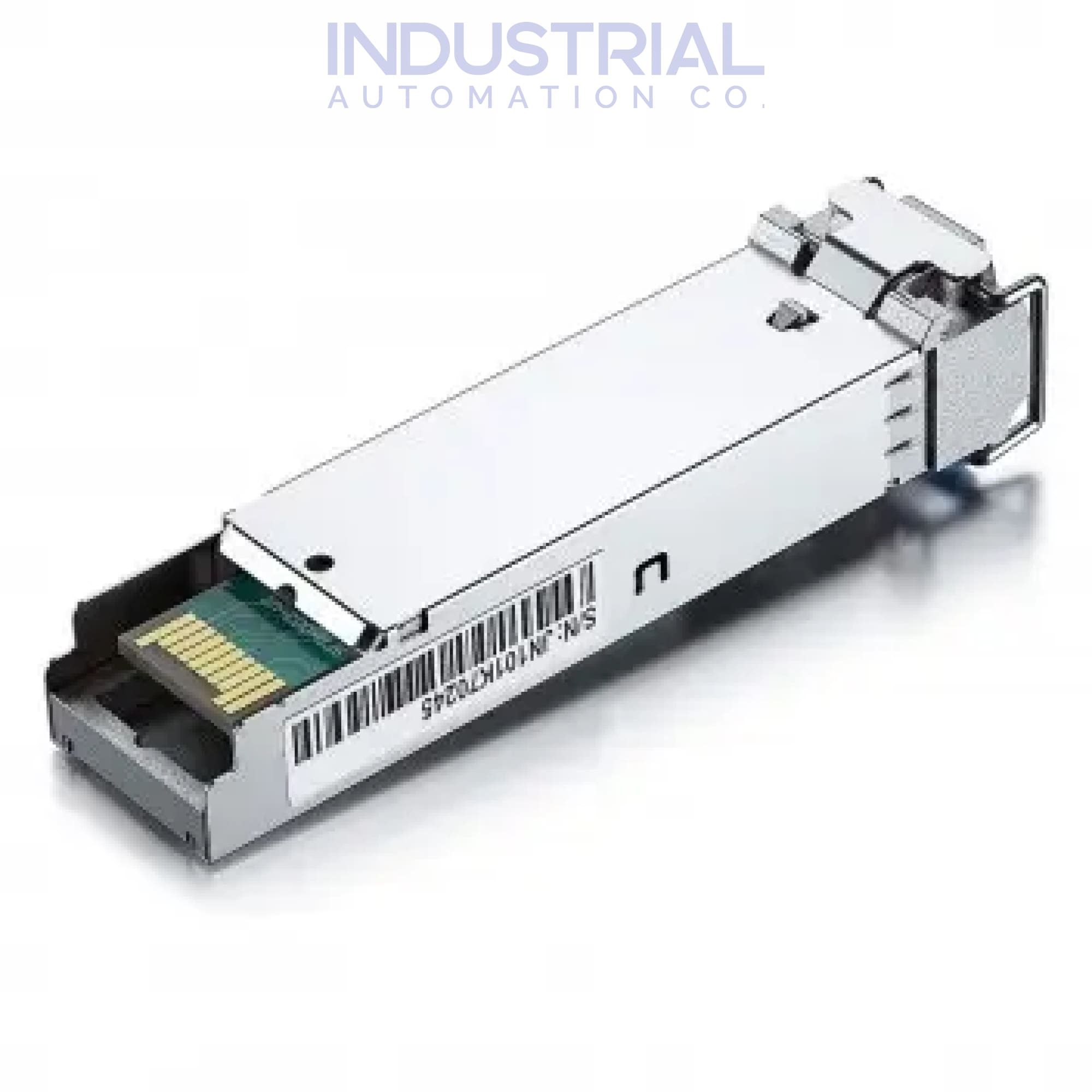

The Maple Systems SM012022 is a 1000Base-LX SFP transceiver module for gigabit Ethernet over singlemode fiber. It operates at 1310 nm with a reach of up to 20 km over duplex LC singlemode fiber, and plugs into the SFP port of the Maple Systems MS1-L05G01F managed Ethernet switch to extend industrial networks between buildings or across large facilities.
A fiber optic patch cable is required and sold separately.
Technical Specifications
| Part Number | SM012022 |
| Type | SFP transceiver module |
| Standard | 1000Base-LX |
| Data Rate | 1.25 Gbps |
| Wavelength | 1310 nm |
| Reach | Up to 20 km |
| Connector | Dual LC |
| Fiber Type | Singlemode (SMF) |
| Typical Use | SFP port of MS1-L05G01F switch |
-
Buying Options
-
Description
The Maple Systems SM012022 is a 1000Base-LX SFP transceiver module for gigabit Ethernet over singlemode fiber. It operates at 1310 nm with a reach of up to 20 km over duplex LC singlemode fiber, and plugs into the SFP port of the Maple Systems MS1-L05G01F managed Ethernet switch to extend industrial networks between buildings or across large facilities.
A fiber optic patch cable is required and sold separately.
Technical Specifications
Part Number SM012022 Type SFP transceiver module Standard 1000Base-LX Data Rate 1.25 Gbps Wavelength 1310 nm Reach Up to 20 km Connector Dual LC Fiber Type Singlemode (SMF) Typical Use SFP port of MS1-L05G01F switch -
