Maple Systems OIT4185-A00
SKU: OIT4185-A00
In stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $635.35
- Sale price
- $635.35
New
$635.35
In stock
Description

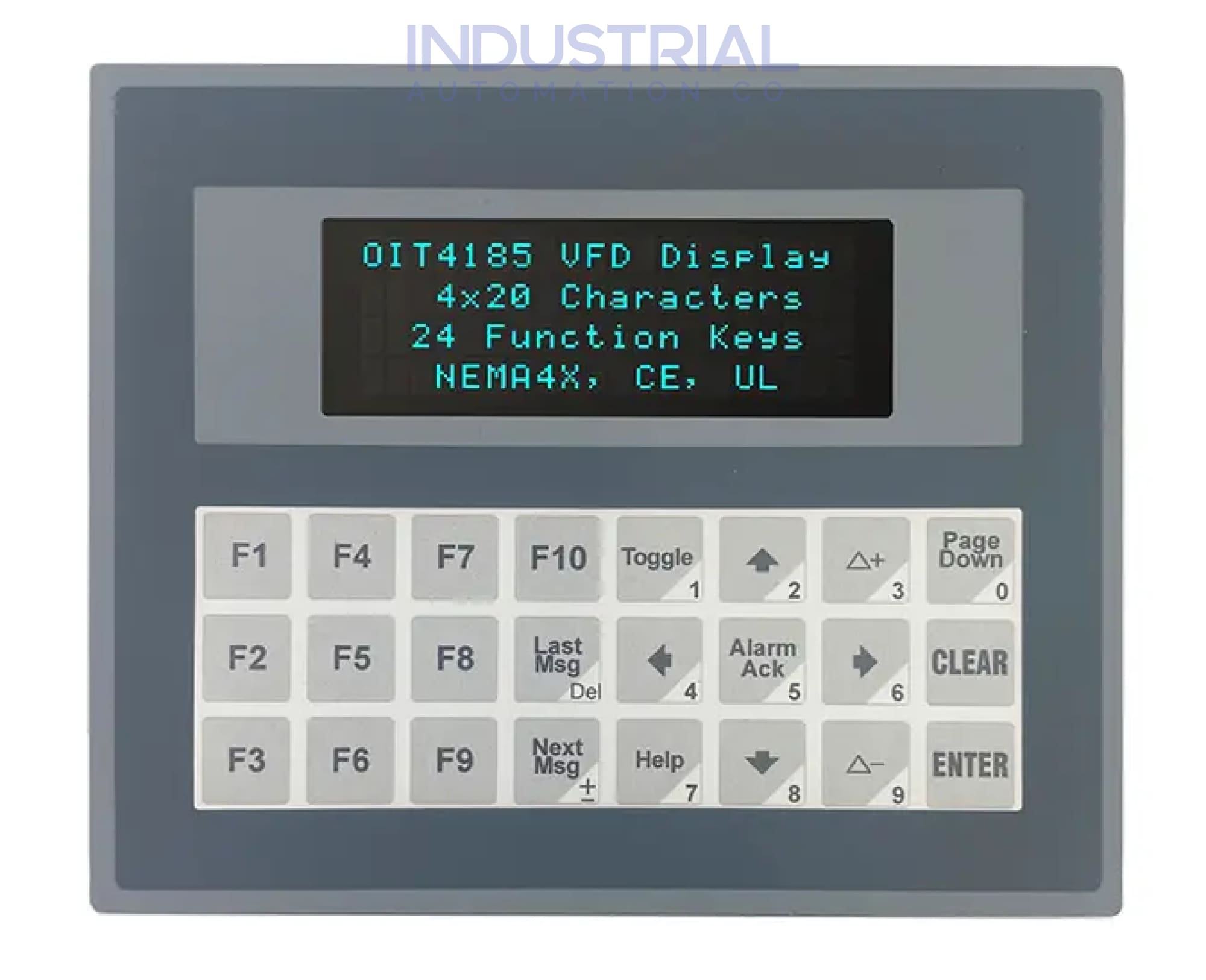

The Maple Systems OIT4185-A00 is a text-based operator interface terminal from the OIT4000 series. It combines a 4 x 20 character vacuum fluorescent display (VFD) with 24 programmable function keys in a rugged aluminum enclosure, providing a simple, keypad-driven operator station for PLC-controlled machines.
Character-based OITs like this remain a cost-effective choice where a full graphic touchscreen is unnecessary: parameter entry, status messages, and alarm display on packaging machines, pump stations, and OEM equipment. The unit communicates with the PLC over a serial connection and carries UL and CE approvals with a Class 1 Division 2 hazardous location rating and IP65 / NEMA rated front panel.
Technical Specifications
| Series | Maple Systems OIT4000 operator interface terminals |
| Display | 4 x 20 character vacuum fluorescent display (VFD) |
| Programmable Keys | 24 |
| Enclosure | Aluminum |
| PLC Communications | Serial |
| Front Panel Rating | IP65, NEMA |
| Hazardous Location Rating | Class 1 Division 2 |
| Approvals | UL, CE |
-
Buying Options
-
Description
The Maple Systems OIT4185-A00 is a text-based operator interface terminal from the OIT4000 series. It combines a 4 x 20 character vacuum fluorescent display (VFD) with 24 programmable function keys in a rugged aluminum enclosure, providing a simple, keypad-driven operator station for PLC-controlled machines.
Character-based OITs like this remain a cost-effective choice where a full graphic touchscreen is unnecessary: parameter entry, status messages, and alarm display on packaging machines, pump stations, and OEM equipment. The unit communicates with the PLC over a serial connection and carries UL and CE approvals with a Class 1 Division 2 hazardous location rating and IP65 / NEMA rated front panel.
Technical Specifications
Series Maple Systems OIT4000 operator interface terminals Display 4 x 20 character vacuum fluorescent display (VFD) Programmable Keys 24 Enclosure Aluminum PLC Communications Serial Front Panel Rating IP65, NEMA Hazardous Location Rating Class 1 Division 2 Approvals UL, CE -
