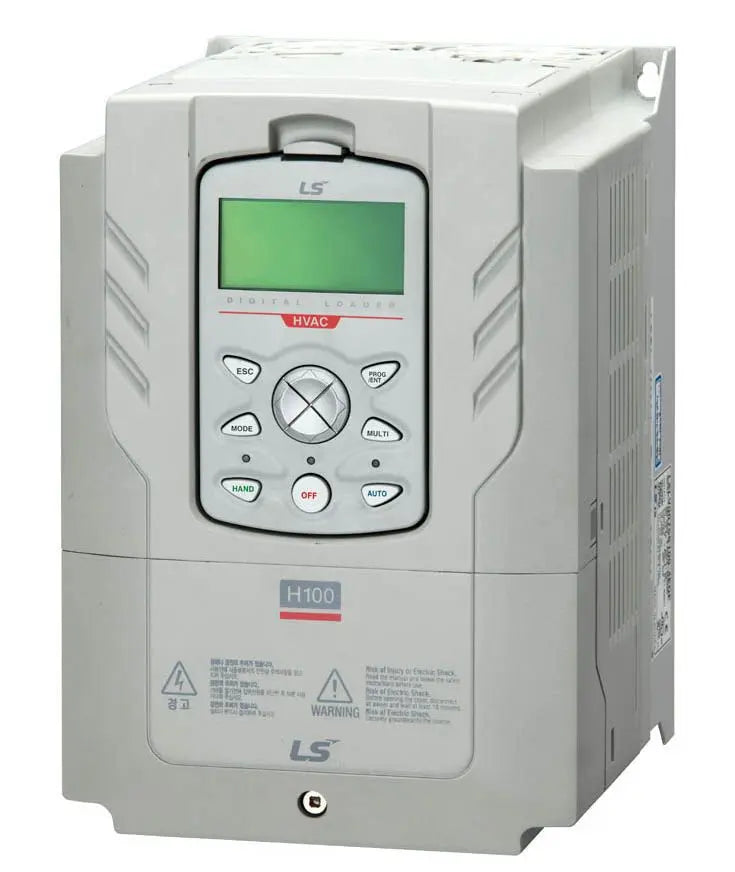

LS Electric LSLV0015H100-4COFN(PLUS)
SKU: LSLV0015H100-4COFN(PLUS)-FS-3PL
We have 103 in stock
Estimated delivery: September 22nd - September 24th
Order for next-day shipment.
- Regular price
-
$592.73
- Sale price
- $592.73
New
$592.73
103 in stock
Ships today
Description
The LS Electric LSLV0015H100-4COFN(PLUS) is a 2 hp variable frequency drive from the H100 series, rated for 380-480 VAC three-phase input. The H100 is LS Electric's HVAC-dedicated drive family, optimized for variable-torque fan and pump loads and supplied with a multilingual LCD keypad.
HVAC-oriented features include built-in PID control with sleep/wake, fire mode, a real-time clock for scheduling, pump staging functions, and native Modbus RTU and BACnet MS/TP communication. Typical uses are air handlers, cooling towers, chilled and condenser water pumps, and building exhaust fans.
This unit is the current H100+ series version and directly replaces the earlier LSLV0015H100-4COFN.
Technical Specifications
| Manufacturer | LS Electric |
| Part Number | LSLV0015H100-4COFN(PLUS) |
| Product Type | Variable Frequency Drive (VFD) |
| Series | H100+ |
| Power Rating | 2 hp / 1.5 kW |
| Input Voltage | 380-480 VAC |
| Input Phase | Three-phase |
| Rated Output Current | 4 A |
| Output | Three-phase output to motor |
| Control Methods | V/F, PID, variable-torque HVAC control |
| Keypad | LCD keypad (included) |
| EMC Filter | Built-in |
| Communications | Modbus RTU, BACnet MS/TP (built-in RS-485) |
| Enclosure Rating | IP20 / UL Open Type |
| Standards | UL 61800-5-1 |
| Dimensions | 6.3x9.13x7.13 in (W x H x D) |
-
Buying Options
-
Description
The LS Electric LSLV0015H100-4COFN(PLUS) is a 2 hp variable frequency drive from the H100 series, rated for 380-480 VAC three-phase input. The H100 is LS Electric's HVAC-dedicated drive family, optimized for variable-torque fan and pump loads and supplied with a multilingual LCD keypad.
HVAC-oriented features include built-in PID control with sleep/wake, fire mode, a real-time clock for scheduling, pump staging functions, and native Modbus RTU and BACnet MS/TP communication. Typical uses are air handlers, cooling towers, chilled and condenser water pumps, and building exhaust fans.
This unit is the current H100+ series version and directly replaces the earlier LSLV0015H100-4COFN.
Technical Specifications
Manufacturer LS Electric Part Number LSLV0015H100-4COFN(PLUS) Product Type Variable Frequency Drive (VFD) Series H100+ Power Rating 2 hp / 1.5 kW Input Voltage 380-480 VAC Input Phase Three-phase Rated Output Current 4 A Output Three-phase output to motor Control Methods V/F, PID, variable-torque HVAC control Keypad LCD keypad (included) EMC Filter Built-in Communications Modbus RTU, BACnet MS/TP (built-in RS-485) Enclosure Rating IP20 / UL Open Type Standards UL 61800-5-1 Dimensions 6.3x9.13x7.13 in (W x H x D) -
Specifications
Technical Specifications
Attribute Details Alternate Part Number 67310026PL, This is the Latest Version of LSLV0015H100-4COFN, 6731002600 Input Voltage 400-480V, 3 Phase Horsepower 2 hp Output 3 Phase Output Housing/Enclosure IP20 Type of Drive Fan and Pump/HVAC Outdoor Rated No STO (Safe Torque Off) No Options Enclosed, Integrated CANopen/Modbus-RTU, Integrated EMC Filter, Keypad Availability Please Contact Us Product Series H100+ Series Warranty 2 Years Weight - lbs. 7.500000 3 Phase Yes Manufacturer LS Electric H100+ Series Features Include HVAC/fan and pump drive
BACnet, Modbus-RTU, Metasys N2 & communication protocol standard
UL Plenum rated
Side by side installation
Heatsink out the back (flange mount)
User friendly Hand-Off-Auto LCD keypad designed just for HVAC/fan and pump apps
Many features for HVAC/fan and pump applications -
