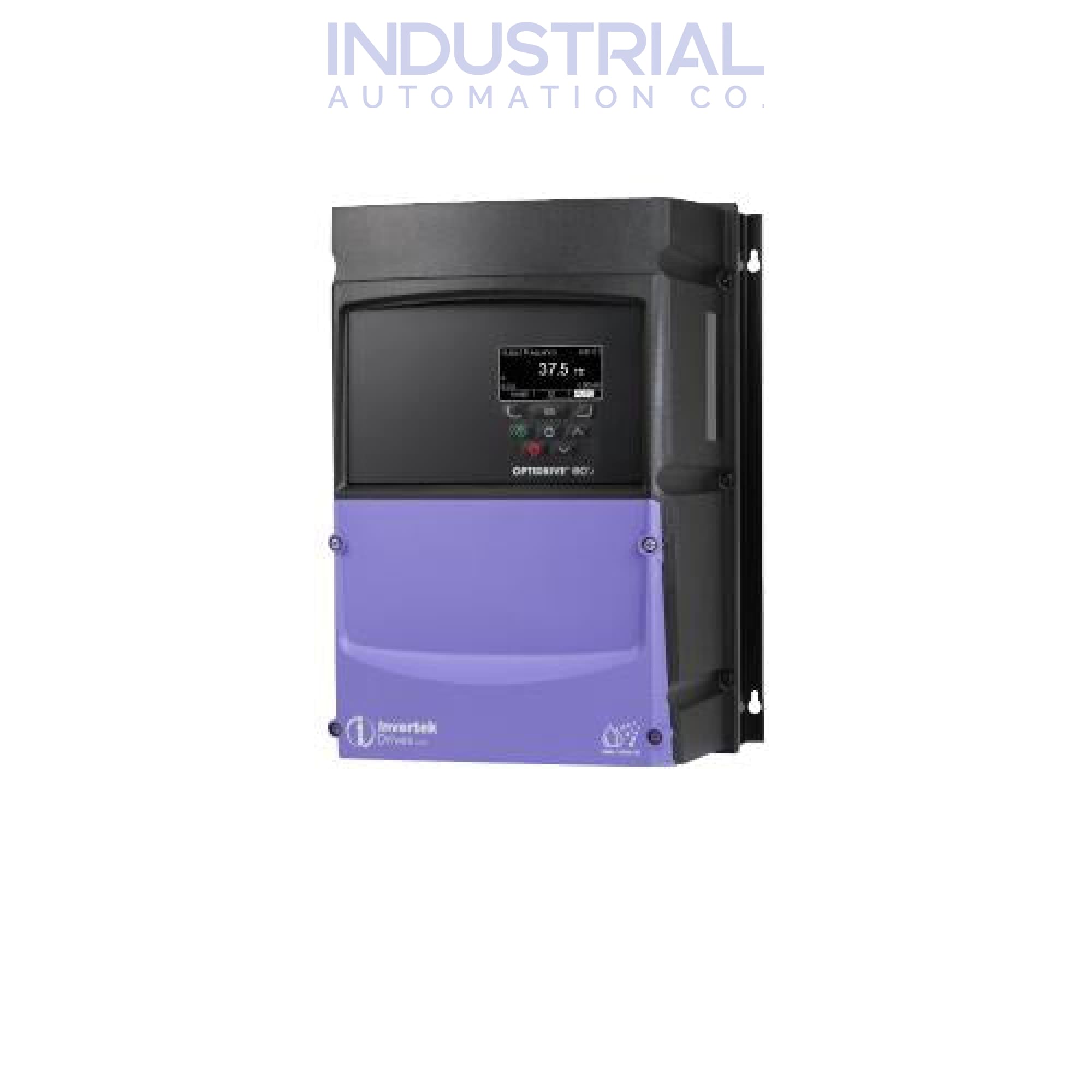

Invertek ODV-3-440460-3F1A-MN
SKU: ODV-3-440460-3F1A-MN
1 in stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $2,954.50
- Sale price
- $2,954.50
New
$2,954.50
In Stock
Description
The Invertek ODV-3-440460-3F1A-MN is an Optidrive Eco variable frequency drive rated 22 kW (30 HP) with a continuous output current of 46 A. It is a frame Size 4 unit in an IP66 outdoor-rated enclosure for washdown and outdoor installations, non-switched version. The Optidrive Eco (ODV-3) series is designed specifically for fan, pump, and HVAC applications, with energy-optimized motor control, a built-in PID controller, and dedicated pump and fan functions such as cascade/duty-assist control, stir/anti-jam cycles, and fire mode.
The drive accepts three-phase 380-480 V input and delivers three-phase 380-480 V output to standard induction and permanent magnet motors. Modbus RTU and BACnet MS/TP communications are included as standard, and a text-based TFT display simplifies commissioning. Typical applications include air handling units, cooling towers, booster pump sets, and general building services and industrial fan/pump duty.
Technical Specifications
| Manufacturer | Invertek Drives |
| Series | Optidrive Eco (ODV-3) |
| Part Number | ODV-3-440460-3F1A-MN |
| Power Rating | 22 kW (30 HP) |
| Rated Output Current | 46 A |
| Input Voltage | 380-480 V AC, three phase |
| Output Voltage | 380-480 V AC, three phase |
| Frame Size | Size 4 |
| Enclosure Rating | IP66 (non-switched, outdoor rated) |
| Communications | Modbus RTU and BACnet MS/TP (standard) |
| Control Features | PID control, pump cascade/duty assist, fire mode, energy optimization |
| Typical Applications | Fans, pumps, HVAC and building services |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $443/yr+3 yrs → 5 total $394/yr+5 yrs → 7 total $295/yrBEST VALUE+8 yrs → 10 total $222/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Invertek ODV-3-440460-3F1A-MN is an Optidrive Eco variable frequency drive rated 22 kW (30 HP) with a continuous output current of 46 A. It is a frame Size 4 unit in an IP66 outdoor-rated enclosure for washdown and outdoor installations, non-switched version. The Optidrive Eco (ODV-3) series is designed specifically for fan, pump, and HVAC applications, with energy-optimized motor control, a built-in PID controller, and dedicated pump and fan functions such as cascade/duty-assist control, stir/anti-jam cycles, and fire mode.
The drive accepts three-phase 380-480 V input and delivers three-phase 380-480 V output to standard induction and permanent magnet motors. Modbus RTU and BACnet MS/TP communications are included as standard, and a text-based TFT display simplifies commissioning. Typical applications include air handling units, cooling towers, booster pump sets, and general building services and industrial fan/pump duty.
Technical Specifications
Manufacturer Invertek Drives Series Optidrive Eco (ODV-3) Part Number ODV-3-440460-3F1A-MN Power Rating 22 kW (30 HP) Rated Output Current 46 A Input Voltage 380-480 V AC, three phase Output Voltage 380-480 V AC, three phase Frame Size Size 4 Enclosure Rating IP66 (non-switched, outdoor rated) Communications Modbus RTU and BACnet MS/TP (standard) Control Features PID control, pump cascade/duty assist, fire mode, energy optimization Typical Applications Fans, pumps, HVAC and building services -
