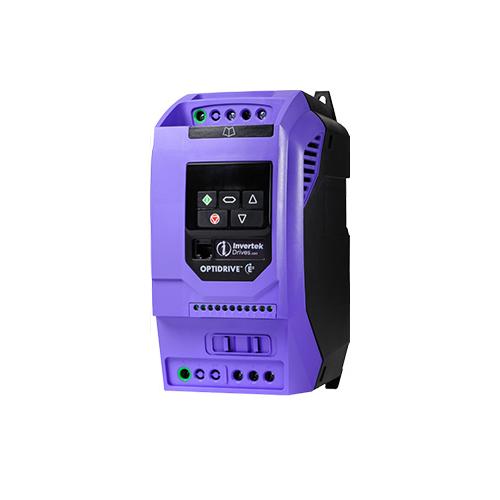

Invertek ODE-3-220105-1F42-01
SKU: ODE-3-220105-1F42-01
4 in stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $510.00
- Sale price
- $510.00
New
$510
In Stock
Description
The Invertek ODE-3-220105-1F42-01 is an Optidrive E3 general-purpose variable frequency drive rated 1.1 kW (1.5 HP), with a rated output current of 10.5 A. It operates from a 200-240 V, single phase supply and provides a variable-frequency single-phase output, a configuration used for speed control of single-phase induction motors.
The Optidrive E3 series is a compact general-purpose drive family with sensorless vector control, 150% overload capability for 60 seconds, and Modbus RTU and CANopen communications as standard. Setup uses a basic 14-parameter structure with an onboard keypad and display. Typical applications include fans, pumps, conveyors, and general machinery.
Technical Specifications
| Manufacturer | Invertek Drives |
| Series | Optidrive E3 |
| Part Number | ODE-3-220105-1F42-01 |
| Power Rating | 1.1 kW (1.5 HP) |
| Rated Output Current | 10.5 A |
| Input Voltage | 200-240 V, single phase |
| Output Voltage | 200-240 V, single phase |
| Frame Size | Size 2 |
| Enclosure Rating | IP20 |
| Overload Capacity | 150% for 60 seconds |
| Communications | Modbus RTU, CANopen |
| Control Method | Sensorless vector / V/F |
| EMC Filter | Integrated |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $77/yr+3 yrs → 5 total $68/yr+5 yrs → 7 total $51/yrBEST VALUE+8 yrs → 10 total $38/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Invertek ODE-3-220105-1F42-01 is an Optidrive E3 general-purpose variable frequency drive rated 1.1 kW (1.5 HP), with a rated output current of 10.5 A. It operates from a 200-240 V, single phase supply and provides a variable-frequency single-phase output, a configuration used for speed control of single-phase induction motors.
The Optidrive E3 series is a compact general-purpose drive family with sensorless vector control, 150% overload capability for 60 seconds, and Modbus RTU and CANopen communications as standard. Setup uses a basic 14-parameter structure with an onboard keypad and display. Typical applications include fans, pumps, conveyors, and general machinery.
Technical Specifications
Manufacturer Invertek Drives Series Optidrive E3 Part Number ODE-3-220105-1F42-01 Power Rating 1.1 kW (1.5 HP) Rated Output Current 10.5 A Input Voltage 200-240 V, single phase Output Voltage 200-240 V, single phase Frame Size Size 2 Enclosure Rating IP20 Overload Capacity 150% for 60 seconds Communications Modbus RTU, CANopen Control Method Sensorless vector / V/F EMC Filter Integrated -
