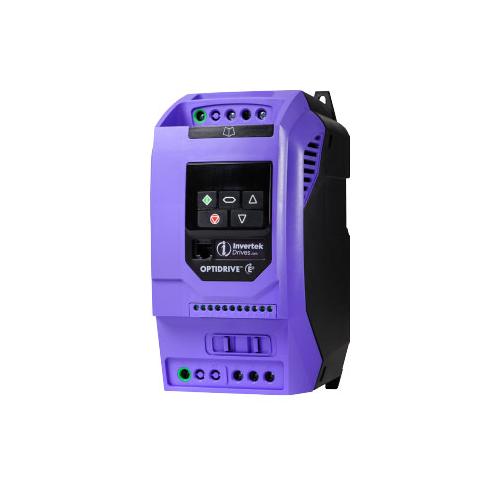

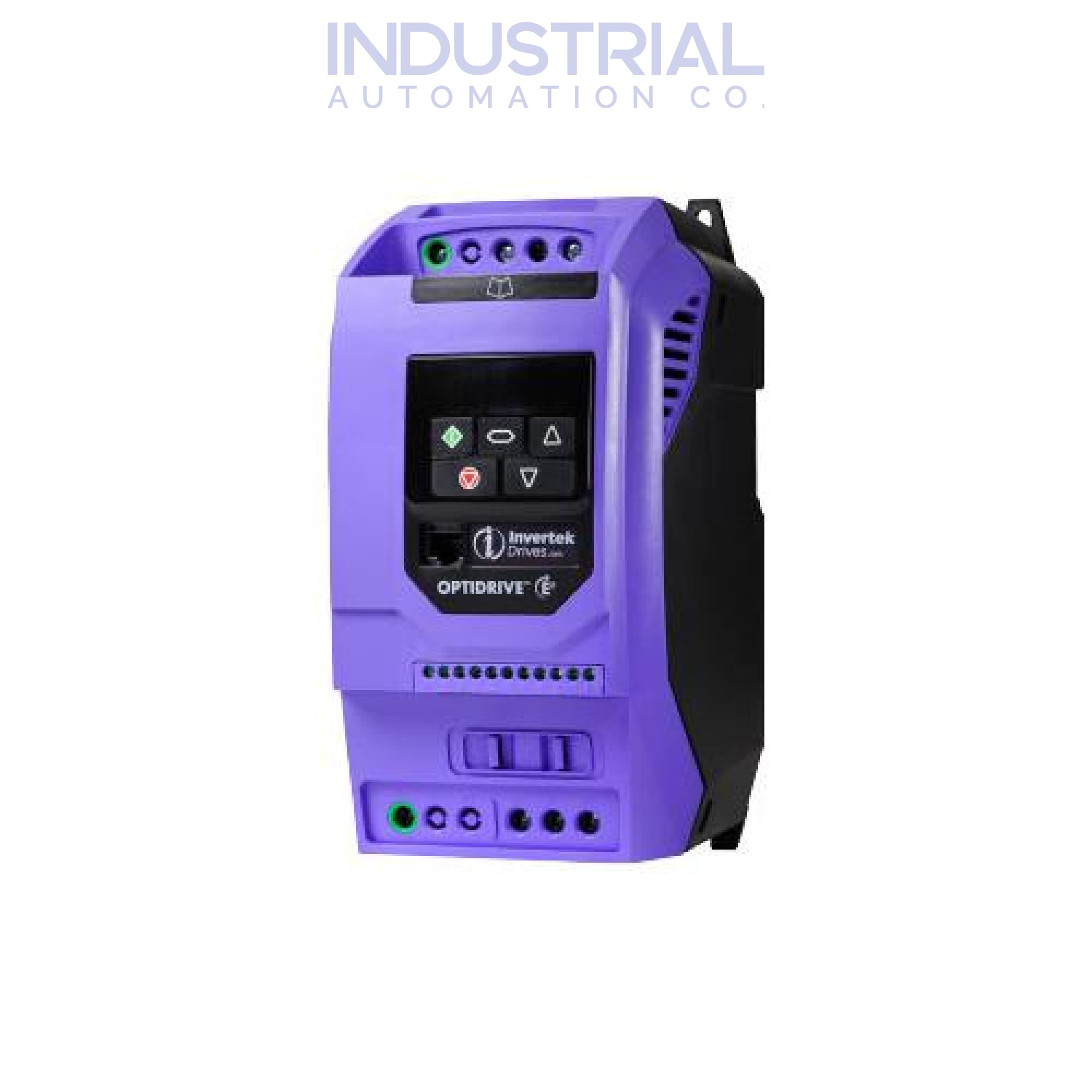

Invertek ODE-3-220105-1F42
SKU: ODE-3-220105-1F42
In stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $440.00
- Sale price
- $440.00
New
$440
In stock
Description
The Invertek ODE-3-220105-1F42 is an Optidrive E3 general-purpose variable frequency drive rated 2.2 kW (3 HP), with a rated output current of 10.5 A. It accepts a 200-240 V, single phase input and delivers a three-phase 200-240 V output, allowing a three-phase motor to be run from a single-phase supply.
The Optidrive E3 series is a compact general-purpose drive family with sensorless vector control, 150% overload capability for 60 seconds, and Modbus RTU and CANopen communications as standard. Setup uses a basic 14-parameter structure with an onboard keypad and display. Typical applications include fans, pumps, conveyors, and general machinery.
Technical Specifications
| Manufacturer | Invertek Drives |
| Series | Optidrive E3 |
| Part Number | ODE-3-220105-1F42 |
| Power Rating | 2.2 kW (3 HP) |
| Rated Output Current | 10.5 A |
| Input Voltage | 200-240 V, single phase |
| Output Voltage | 200-240 V, three phase |
| Frame Size | Size 2 |
| Enclosure Rating | IP20 |
| Overload Capacity | 150% for 60 seconds |
| Communications | Modbus RTU, CANopen |
| Control Method | Sensorless vector / V/F |
| EMC Filter | Integrated |
-
Buying Options
-
Description
The Invertek ODE-3-220105-1F42 is an Optidrive E3 general-purpose variable frequency drive rated 2.2 kW (3 HP), with a rated output current of 10.5 A. It accepts a 200-240 V, single phase input and delivers a three-phase 200-240 V output, allowing a three-phase motor to be run from a single-phase supply.
The Optidrive E3 series is a compact general-purpose drive family with sensorless vector control, 150% overload capability for 60 seconds, and Modbus RTU and CANopen communications as standard. Setup uses a basic 14-parameter structure with an onboard keypad and display. Typical applications include fans, pumps, conveyors, and general machinery.
Technical Specifications
Manufacturer Invertek Drives Series Optidrive E3 Part Number ODE-3-220105-1F42 Power Rating 2.2 kW (3 HP) Rated Output Current 10.5 A Input Voltage 200-240 V, single phase Output Voltage 200-240 V, three phase Frame Size Size 2 Enclosure Rating IP20 Overload Capacity 150% for 60 seconds Communications Modbus RTU, CANopen Control Method Sensorless vector / V/F EMC Filter Integrated -
