Invertek ODE-3-140022-3F1B-EIP
SKU: ODE-3-140022-3F1B-EIP
We have 3 in stock
Estimated delivery: September 1st - September 3rd
Order for next-day shipment.
- Regular price
-
$822.50
- Sale price
- $822.50
New
$822.50
3 in stock
Ships today
Description

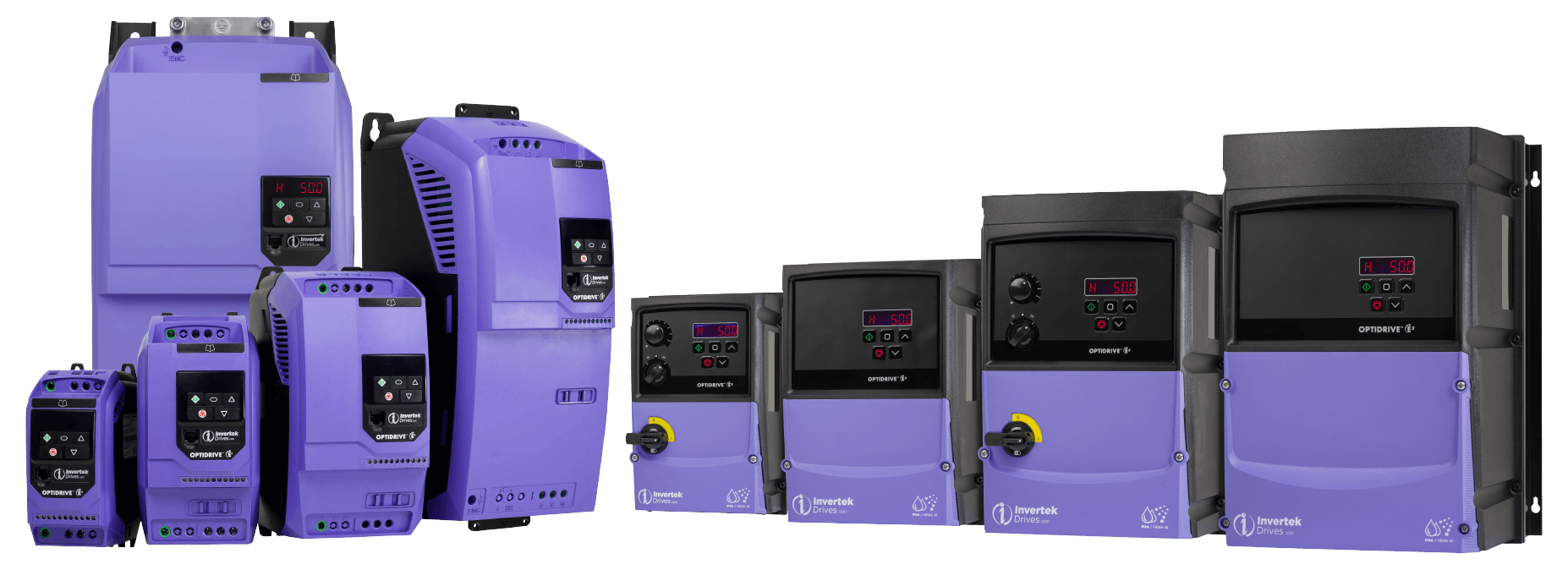

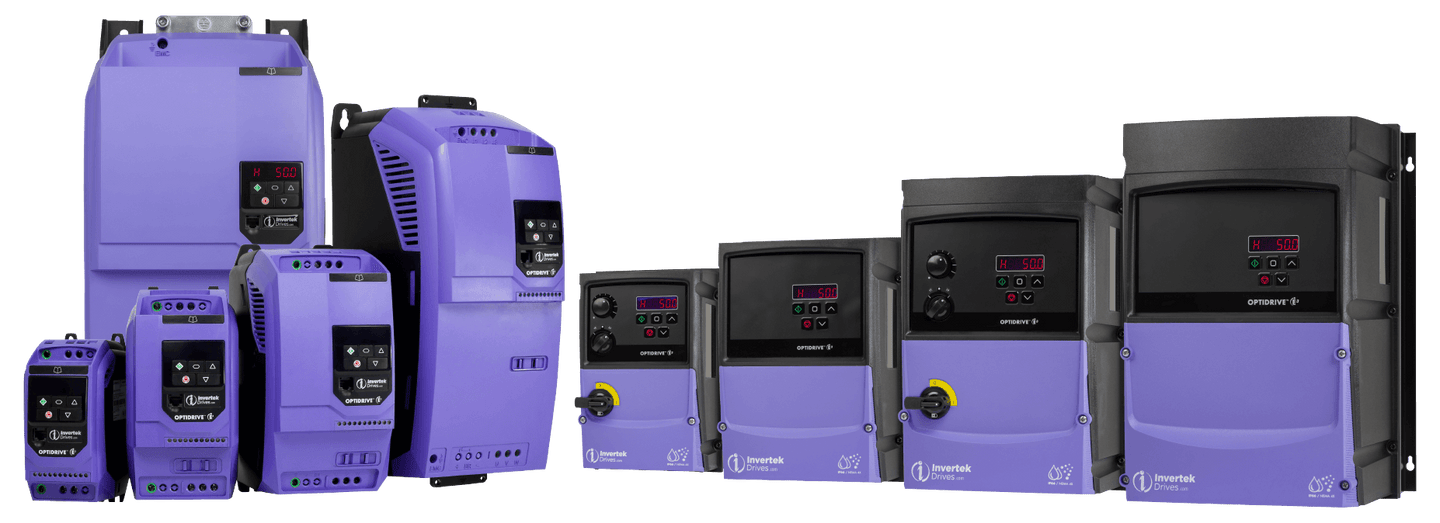

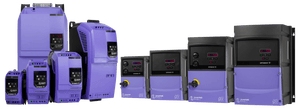

The Invertek Drives ODE-3-140022-3F1B-EIP is an Optidrive E3 series variable frequency drive rated 0.75 kW (1 HP) with a 2.2 A output current, for three-phase 380-480 V AC supplies. It is built in an IP66 switched outdoor-rated enclosure with integrated disconnect and local controls, and adds an EtherNet/IP communications interface for networked control.
Technical Specifications
| Part Number | ODE-3-140022-3F1B-EIP |
| Series | Invertek Optidrive E3 (ODE-3) |
| Power Rating | 0.75 kW / 1 HP |
| Rated Output Current | 2.2 A |
| Input Supply | Three phase, 380-480 V AC |
| Output | Three phase, 380-480 V AC |
| Frame Size | Size 1 |
| Enclosure Rating | IP66, switched (integrated disconnect) |
| Communications | EtherNet/IP; Modbus RTU |
| Control Modes | V/F and sensorless vector |
-
Buying Options
-
Description
The Invertek Drives ODE-3-140022-3F1B-EIP is an Optidrive E3 series variable frequency drive rated 0.75 kW (1 HP) with a 2.2 A output current, for three-phase 380-480 V AC supplies. It is built in an IP66 switched outdoor-rated enclosure with integrated disconnect and local controls, and adds an EtherNet/IP communications interface for networked control.
Technical Specifications
Part Number ODE-3-140022-3F1B-EIP Series Invertek Optidrive E3 (ODE-3) Power Rating 0.75 kW / 1 HP Rated Output Current 2.2 A Input Supply Three phase, 380-480 V AC Output Three phase, 380-480 V AC Frame Size Size 1 Enclosure Rating IP66, switched (integrated disconnect) Communications EtherNet/IP; Modbus RTU Control Modes V/F and sensorless vector -
