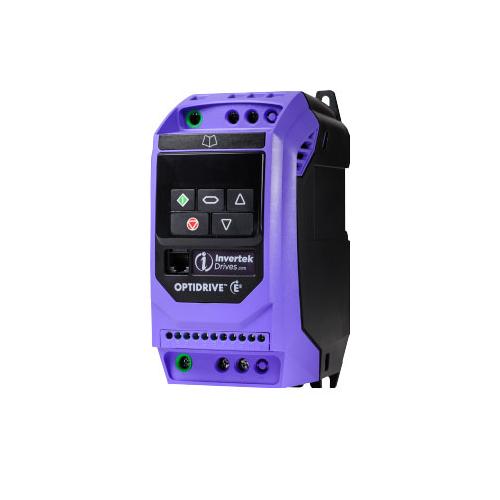

Invertek ODE-3-120070-1F12
SKU: ODE-3-120070-1F12
369 in stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $320.00
- Sale price
- $320.00
New
$320
In Stock
Description
The Invertek Drives ODE-3-120070-1F12 is an Optidrive E3 series variable frequency drive (VFD) rated 1.5 kW (2 HP) with a 7 A output current. The Optidrive E3 is a compact general-purpose AC drive family used for pump, fan, conveyor, and general machinery motor control, with simple keypad commissioning and sensorless vector or V/F control modes.
This model accepts a single-phase 200-240 V AC supply and provides a three-phase 200-240 V output to the motor. The IP20 enclosure is intended for mounting inside a control panel or enclosure.
Technical Specifications
| Part Number | ODE-3-120070-1F12 |
| Series | Invertek Optidrive E3 (ODE-3) |
| Power Rating | 1.5 kW / 2 HP |
| Rated Output Current | 7 A |
| Input Supply | Single phase, 200-240 V AC |
| Output | Three phase, 200-240 V AC |
| Frame Size | Size 1 |
| Enclosure Rating | IP20 |
| Control Modes | V/F and sensorless vector |
| Communications | Modbus RTU (built in) |
| Output Frequency Range | 0 to 500 Hz |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $48/yr+3 yrs → 5 total $43/yr+5 yrs → 7 total $32/yrBEST VALUE+8 yrs → 10 total $24/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Invertek Drives ODE-3-120070-1F12 is an Optidrive E3 series variable frequency drive (VFD) rated 1.5 kW (2 HP) with a 7 A output current. The Optidrive E3 is a compact general-purpose AC drive family used for pump, fan, conveyor, and general machinery motor control, with simple keypad commissioning and sensorless vector or V/F control modes.
This model accepts a single-phase 200-240 V AC supply and provides a three-phase 200-240 V output to the motor. The IP20 enclosure is intended for mounting inside a control panel or enclosure.
Technical Specifications
Part Number ODE-3-120070-1F12 Series Invertek Optidrive E3 (ODE-3) Power Rating 1.5 kW / 2 HP Rated Output Current 7 A Input Supply Single phase, 200-240 V AC Output Three phase, 200-240 V AC Frame Size Size 1 Enclosure Rating IP20 Control Modes V/F and sensorless vector Communications Modbus RTU (built in) Output Frequency Range 0 to 500 Hz -
