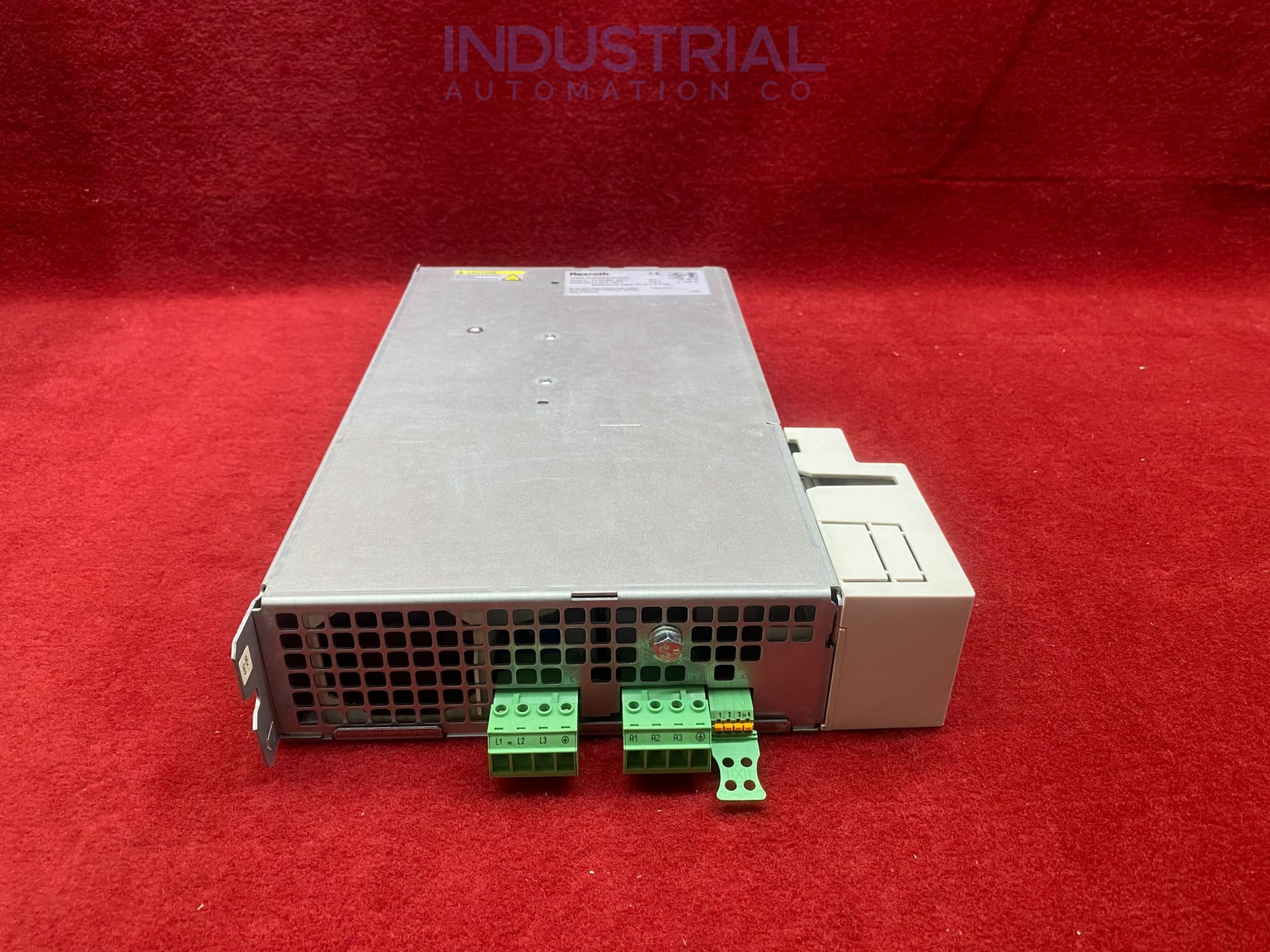

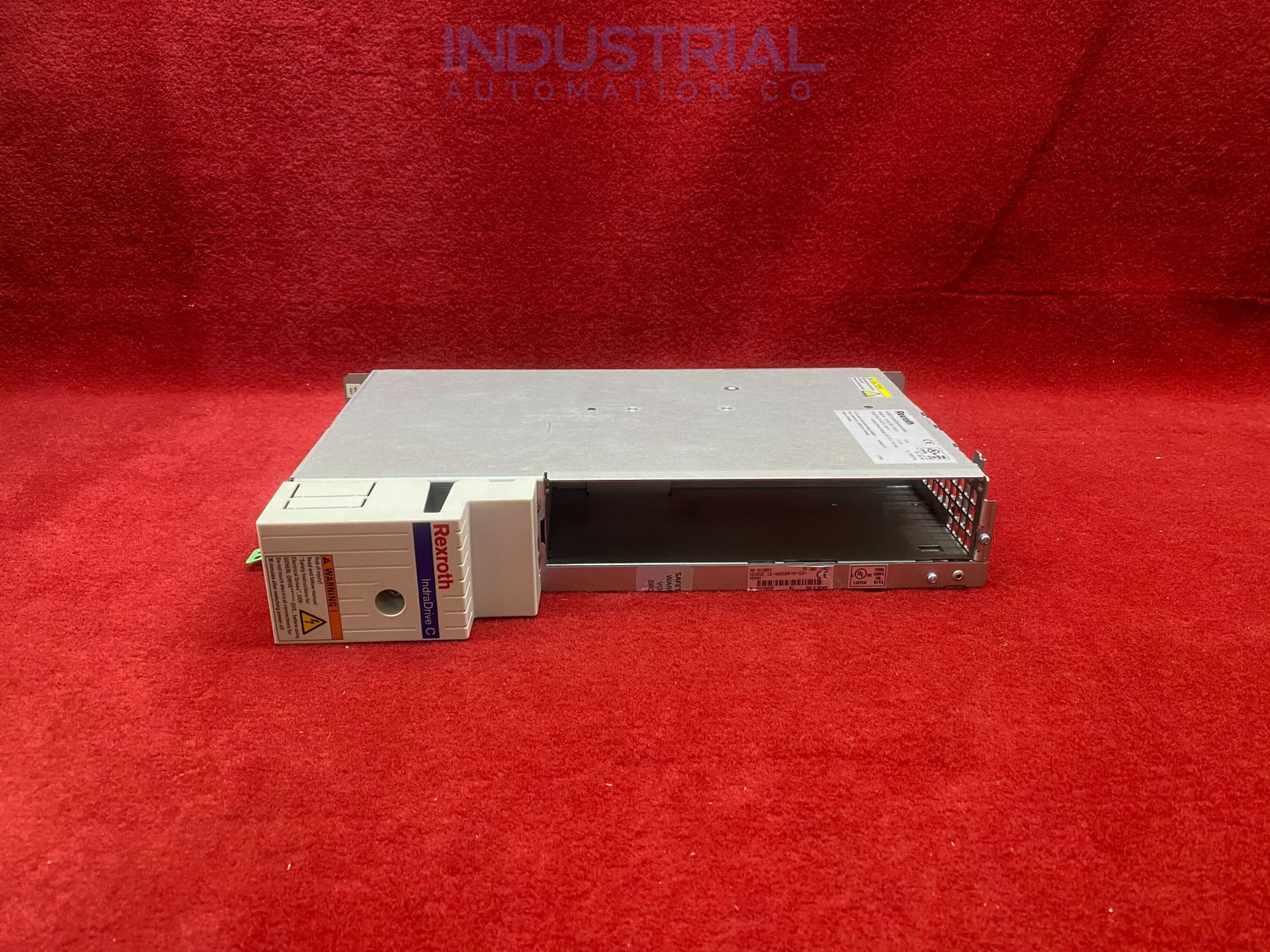

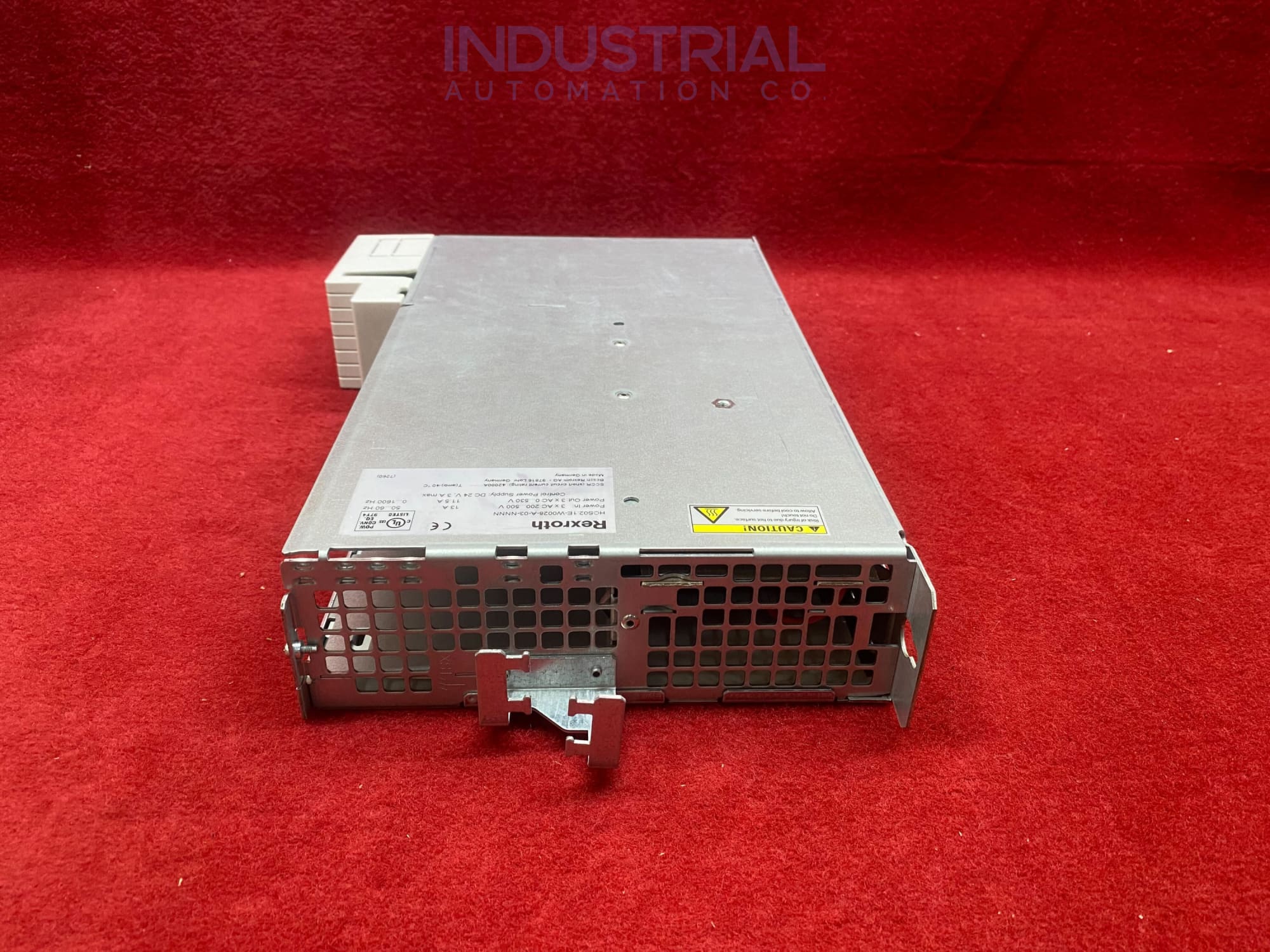

The Indramat HCS02.1E-W0028-A-03-NNNN is a series of compact and concentrated modular servo drives manufactured by Rexroth, Indramat and Bosch, which is a compact converter of the HCS Series. It is suitable for middle-grade applications, particularly on machinery and automation equipment. The drive converter has a maximum current of 28 A, while the main connection Voltage is AC 200 to 500 V, which is ±10%.

Technical Description:

The Indramat HCS02. 1E-W0028-A-03-NNNN is a series of servo drives delivering the latest technological features into industrial automation systems. The impedance-based amplifier has a nominal output power rating of 2.8 kW; this drive is ideal for moderately powered mechanics and provides the exact motion required to operate machinery. It includes digital control systems that allow precise and accurate control of the position and velocity of the shaft, which is essential in today€™s applications.

It also includes Safe Torque Off (STO), among other safety functions, to ensure that the drive complies with the needed security levels and improves machine reliability in general. This makes them suitable when safety issues, such as in-line production and robotics, are prioritized.

The HCS02. 1E-W0028-A-03-NNNN supports various communication protocols like Ethernet/IP, SERCOS, and PROFINET for industry network compatibility. Its modular design allows it to be easily fine-tuned and slotted into existing systems. It works well within a given environment and requires little installation time.

With its robust construction and cooling system, this drive's design guarantees it works well in any industrial conditions. Further, it has a commissioning and diagnostic feature that makes it user-friendly and thus easy to set up and service. Overall, the Indramat HCS02. 1E-W0028-A-03-NNNN servo drive is universal modern protection for contemporary industrial equipment's application performance and safety.

Attachments Specifications:

The HCS02. 1E-W0028-A-03-NNNN directly supports a range of attachments, further increasing its flexibility and compatibility. Major options include a cooling fan module to help control system heat, safety modules to improve operation safety and networking modules, including SERCOS, EtherNet/IP, and PROFINET for networking compatibility. Moreover, it offers encoder and feedback devices to implement control/monitoring, resulting in high performance and reliability for multiple industrial uses.

Standard Safety Precautions:

The Indramat HCS02.1E-W0028-A-03-NNNN satisfies strictly global safety standards such as ISO 13849 and IEC 61508. One feature of this drive is the integrated Safe Torque Off (STO) capability, which shuts the power off immediately to prevent accidental movement.

The drive also features overvoltage, overcurrent, and thermal protection mechanisms to prevent damage to the device and any connected machinery. However, for safety and consistent performance practices, you need to maintain them at regular intervals and follow the installation guide.

Frequently Asked Questions:

What communication protocols does the Indramat HCS02.1E-W0028-A-03-NNNN support?

The Indramat HCS02.1E-W0028-A-03-NNNN supports SERCOS, Ethernet/IP, and PROFINET communication protocols for seamless network integration.

What type of motors can be used with the HCS02.1E-W0028-A-03-NNNN servo drive?

The HCS02.1E-W0028-A-03-NNNN servo drive supports a wide range of motor types, including synchronous servo motors and asynchronous motors. This flexibility allows it to be used in various applications requiring different motor specifications.

What is the nominal output power of the Indramat HCS02.1E-W0028-A-03-NNNN?

The Indramat HCS02.1E-W0028-A-03-NNNN has a nominal output power of 2.8 kW, suitable for medium-power industrial applications.
