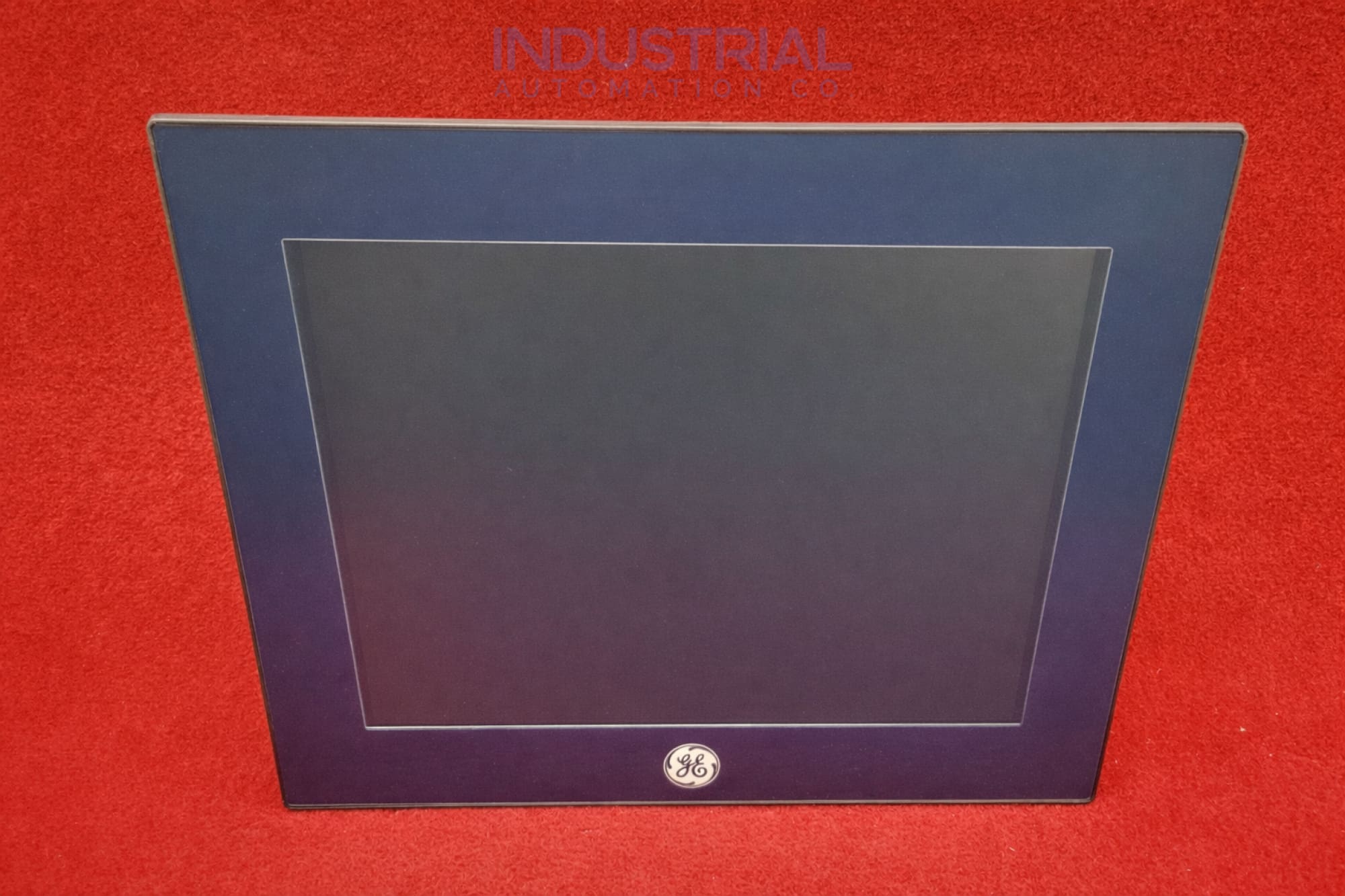

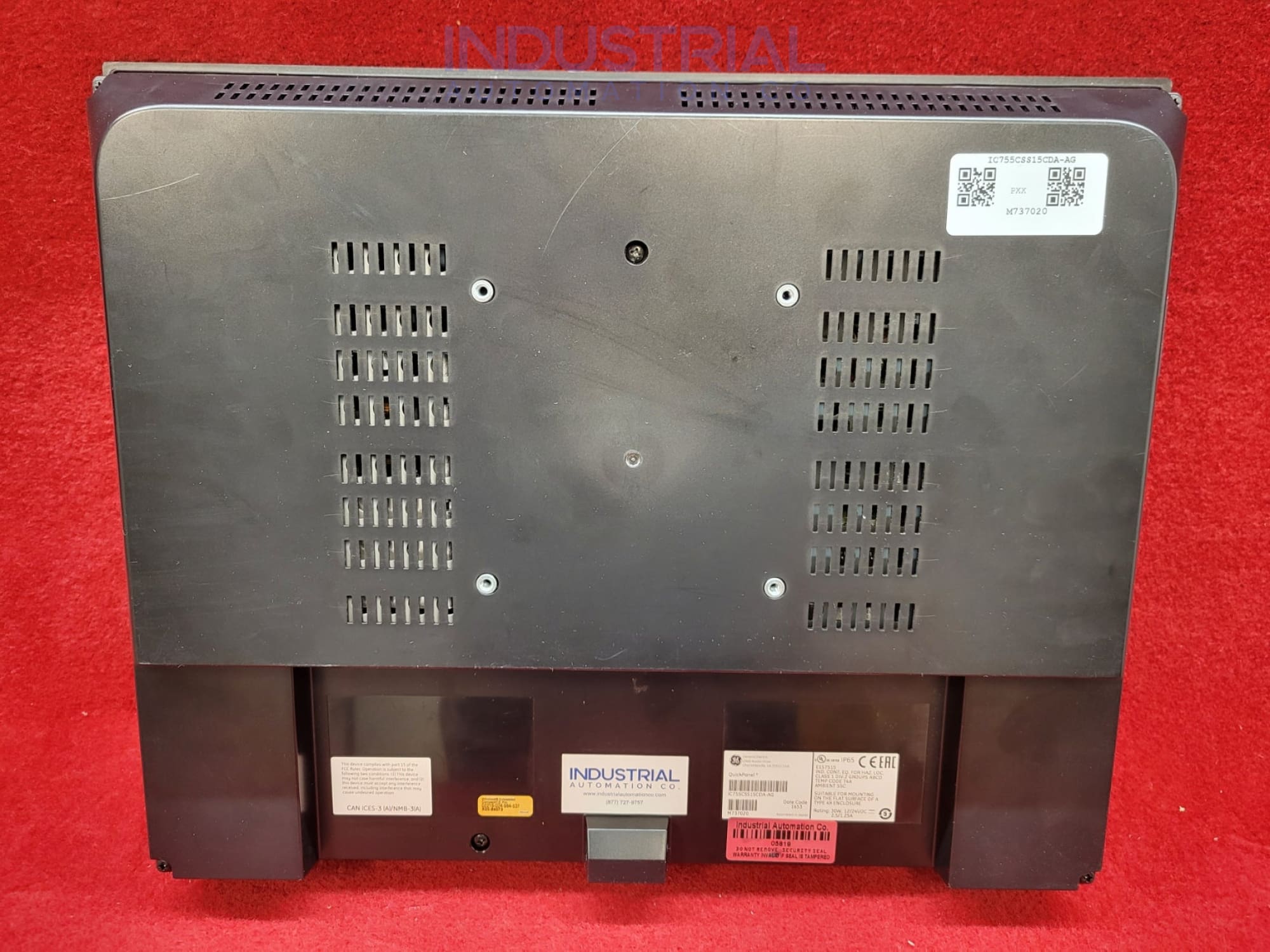

GE FANUC IC755CSS15CDA

The IC755CSS15CDA is a 15-inch QuickPanel operator interface from GE Fanuc Intelligent Platforms, designed for versatility in industrial applications. This unit operates on the recommended Windows Embedded Compact 7, with the operating system stored in flash memory and executed from a block of DRAM. The IC755CSS15CDA features a complete 32-bit operating system with a graphical user interface (GUI), allowing for rapid startup following power activation or reset. Enhanced connectivity is provided through multiple communication ports, making it compatible with a wide range of industrial equipment, thus catering to the demands of modern applications.

The device is equipped with a high-resolution touchscreen display and integrates a section of shared DRAM that optimally balances the operating system, application memory, and object storage. Its non-volatile flash memory acts as a virtual hard drive, while the battery-backed SRAM supports additional storage, ensuring the preservation of critical data during power interruptions. The Ethernet port includes dual LED indicators for speed and link activity, enhancing user awareness of network status. A backup utility is essential for saving changes to the Windows registry, compensating for the absence of a battery-powered backup system. For optimal performance, the IC755CSS15CDA should be installed in a well-ventilated environment, free from dust and direct sunlight, in accordance with all applicable environmental specifications.

Technical specifications for the IC755CSS15CDA include a Freescale i.MX535 processor operating at 1 GHz, 1 GB of SDRAM, 512 MB of SLC NAND Flash, and 512 KB of battery-backed SRAM. The display features a 15-inch TFT LCD with a resolution of 1024 x 768 SVGA, ensuring high-quality visual output for operator interaction.
