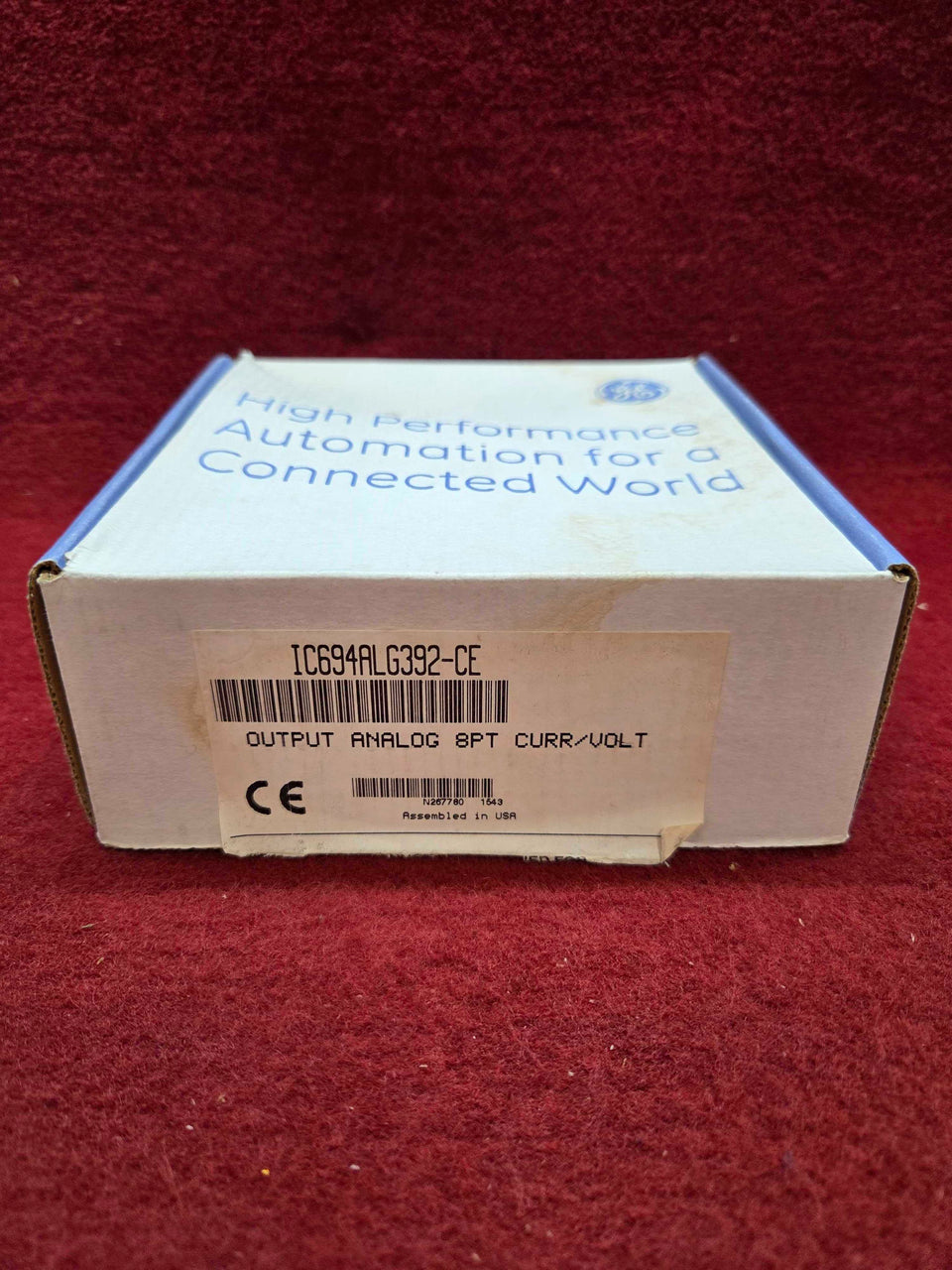

GE Fanuc IC694ALG392

The IC694ALG392 is a high-density, 8-channel analog output module from the GE Fanuc RX3i PACSystems series, designed for industrial automation applications. This module supports both current loop and voltage outputs, providing users with the flexibility to configure each channel as needed. The output channels can deliver voltage ranges of 0 to +10 V or -10 to +10 V, and current ranges of 0-20 mA or 4-20 mA, enabling diverse applications across various control systems. With an update rate of 8 milliseconds and a maximum output load of 5 mA, the IC694ALG392 ensures efficient performance in real-time environments. Power consumption is rated at 110 mA at +5VDC and 315 mA at +24VDC, allowing for seamless integration with standard control systems. The module features indicator LEDs for “MODULE OK” and “USER SUPPLY,” enhancing diagnostics during operation. For optimal performance, the external supply voltage should range between 20 to 30 Volts DC.
