Delta ECMC-CW1010RS
SKU: ECMC-CW1010RS
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description

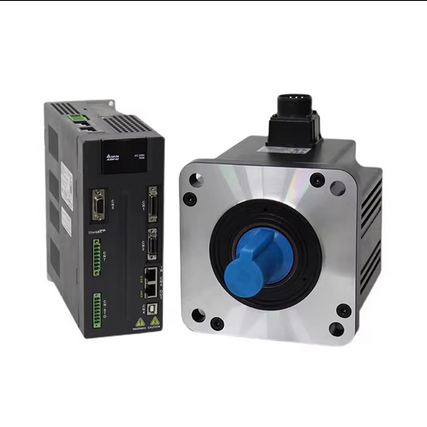

Delta ECMC-CW1010RS AC Servo Motor
The Delta ECMC-CW1010RS is a 1 kW AC servo motor engineered for precision industrial applications. Operating at a rated speed of 3000 RPM, it provides a rated torque of 3.18 Nm, ensuring efficient and accurate motion control. This model includes a 24-bit encoder, a shaft with keyway and oil seal, and a medium inertia design, enhancing its performance and durability in various settings.
- Rated Output Power: 1 kW
- Rated Speed: 3000 RPM
- Rated Torque: 3.18 Nm
- Voltage Rating: 220V
- Encoder Type: 24-bit
- Shaft Type: Keyway with Oil Seal
- Brake: Not included
- Protection Level: IP65
- Frame Size: 100 mm
- Inertia: Medium
Suitable for high-precision industrial machinery requiring reliable and efficient motion control.
-
Buying Options
-
Description
Delta ECMC-CW1010RS AC Servo Motor
The Delta ECMC-CW1010RS is a 1 kW AC servo motor engineered for precision industrial applications. Operating at a rated speed of 3000 RPM, it provides a rated torque of 3.18 Nm, ensuring efficient and accurate motion control. This model includes a 24-bit encoder, a shaft with keyway and oil seal, and a medium inertia design, enhancing its performance and durability in various settings.
- Rated Output Power: 1 kW
- Rated Speed: 3000 RPM
- Rated Torque: 3.18 Nm
- Voltage Rating: 220V
- Encoder Type: 24-bit
- Shaft Type: Keyway with Oil Seal
- Brake: Not included
- Protection Level: IP65
- Frame Size: 100 mm
- Inertia: Medium
Suitable for high-precision industrial machinery requiring reliable and efficient motion control.
-
