Delta ECMA-LW221FRS
SKU: ECMA-LW221FRS
This product is not available for online purchase.
Use Request a quote to get pricing.
Description

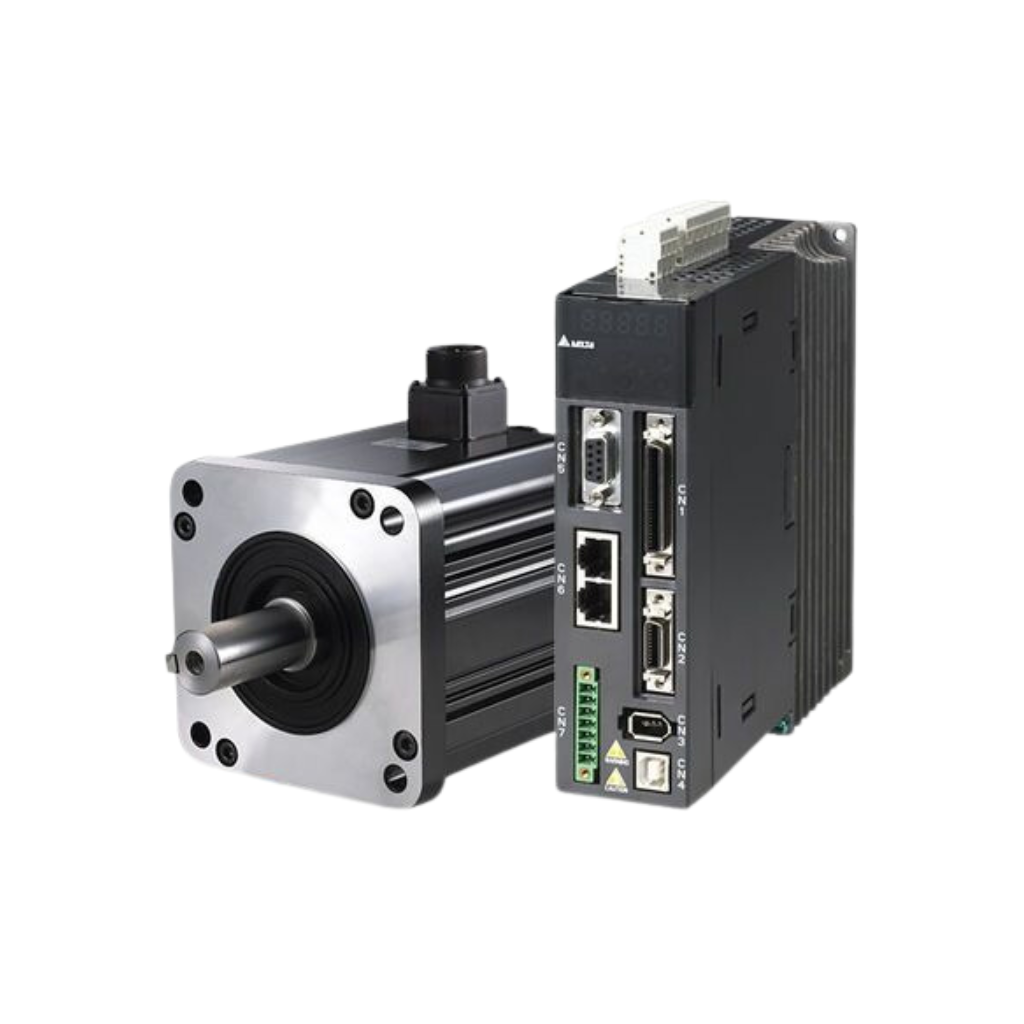

Delta ECMA-LW221FRS AC Servo Motor
The Delta ECMA-LW221FRS is a 15 kW AC servo motor tailored for heavy-duty industrial applications. It operates at a rated speed of 1500 RPM, delivering a rated torque of 95.4 Nm, ensuring robust and precise motion control. This model features a 20-bit absolute encoder and a shaft with an oil seal, enhancing its durability and performance in challenging environments.
- Rated Output Power: 15 kW
- Rated Speed: 1500 RPM
- Rated Torque: 95.4 Nm
- Voltage Rating: 400 VAC
- Encoder Type: Absolute, 20-bit
- Shaft Type: With oil seal
- Brake: Not included
- Protection Level: IP65
- Frame Size: 220 mm x 220 mm
Designed for heavy-duty machinery requiring high power, precision, and durability.
-
Buying Options
-
Description
Delta ECMA-LW221FRS AC Servo Motor
The Delta ECMA-LW221FRS is a 15 kW AC servo motor tailored for heavy-duty industrial applications. It operates at a rated speed of 1500 RPM, delivering a rated torque of 95.4 Nm, ensuring robust and precise motion control. This model features a 20-bit absolute encoder and a shaft with an oil seal, enhancing its durability and performance in challenging environments.
- Rated Output Power: 15 kW
- Rated Speed: 1500 RPM
- Rated Torque: 95.4 Nm
- Voltage Rating: 400 VAC
- Encoder Type: Absolute, 20-bit
- Shaft Type: With oil seal
- Brake: Not included
- Protection Level: IP65
- Frame Size: 220 mm x 220 mm
Designed for heavy-duty machinery requiring high power, precision, and durability.
-
