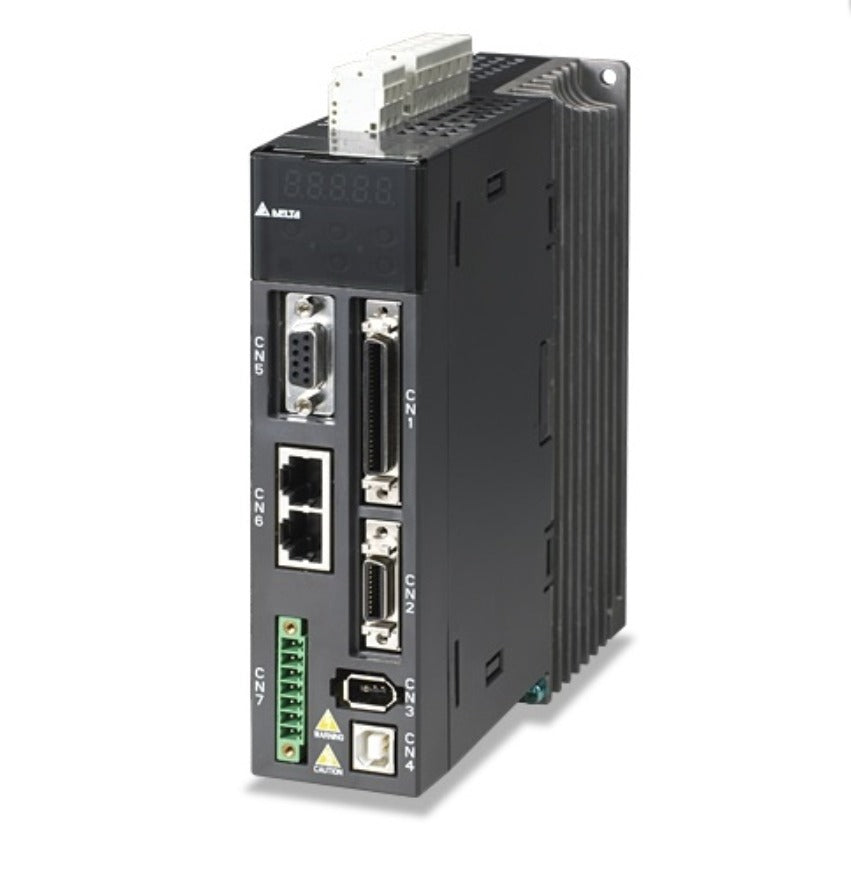

Delta ASD-A2-0221-E

The Delta ASD-A2-1521-M Servo Drive from the ASD-A2 Series delivers high-performance motion control for industrial automation, offering precise and efficient operation across a variety of applications. With its advanced features and robust design, it is ideal for use in demanding environments requiring reliability and flexibility.

• Manufacturer: Delta Products
• Part Number: ASD-A2-1521-M
• Series: ASD-A2
• Description: A2 Servo Drive, 1.5 kW, 230V, 1PH/3PH, FCL, CANopen, CAM
• Power Rating: 1.5 kW
• Voltage: 220 VAC
• Control Mode: Linear Servo
• Phase: 1 or 3
• Continuous Rated Current (1PH/3PH): 8.3 A
• Peak Rated Current (1PH/3PH): 24.9 A
• Encoder Feedback: Yes
• Frequency Response: 1,000 Hz
• Analog Inputs: 1
• Analog Outputs: 2
• Digital Inputs: 18
• Digital Outputs: 10
• Dynamic Braking: Yes
• Line Regenerative: Yes
• Onboard Communication: Serial
• Modbus TCP/IP: Optional
• IP Rating: IP20
• Operating Temperature Range: 0-55°C
• Approvals: CE, cUL, UL
• Net Weight: 3.86 lbs
• Gross Weight: 4.77 lbs

The ASD-A2-1521-M Servo Drive is equipped with advanced control modes, including CANopen and CAM functionality, making it suitable for precise positioning and complex motion tasks. Its high frequency response of 1,000 Hz ensures stability and accuracy in real-time applications. With optional Modbus TCP/IP support, it offers seamless integration into modern automation systems.

Designed for durability and efficiency, this servo drive includes dynamic braking, line regenerative capabilities, and extensive input/output options, making it a versatile choice for robotics, CNC machines, and other industrial automation needs. Its compact design and IP20 rating further enhance ease of installation and reliability in controlled environments.
