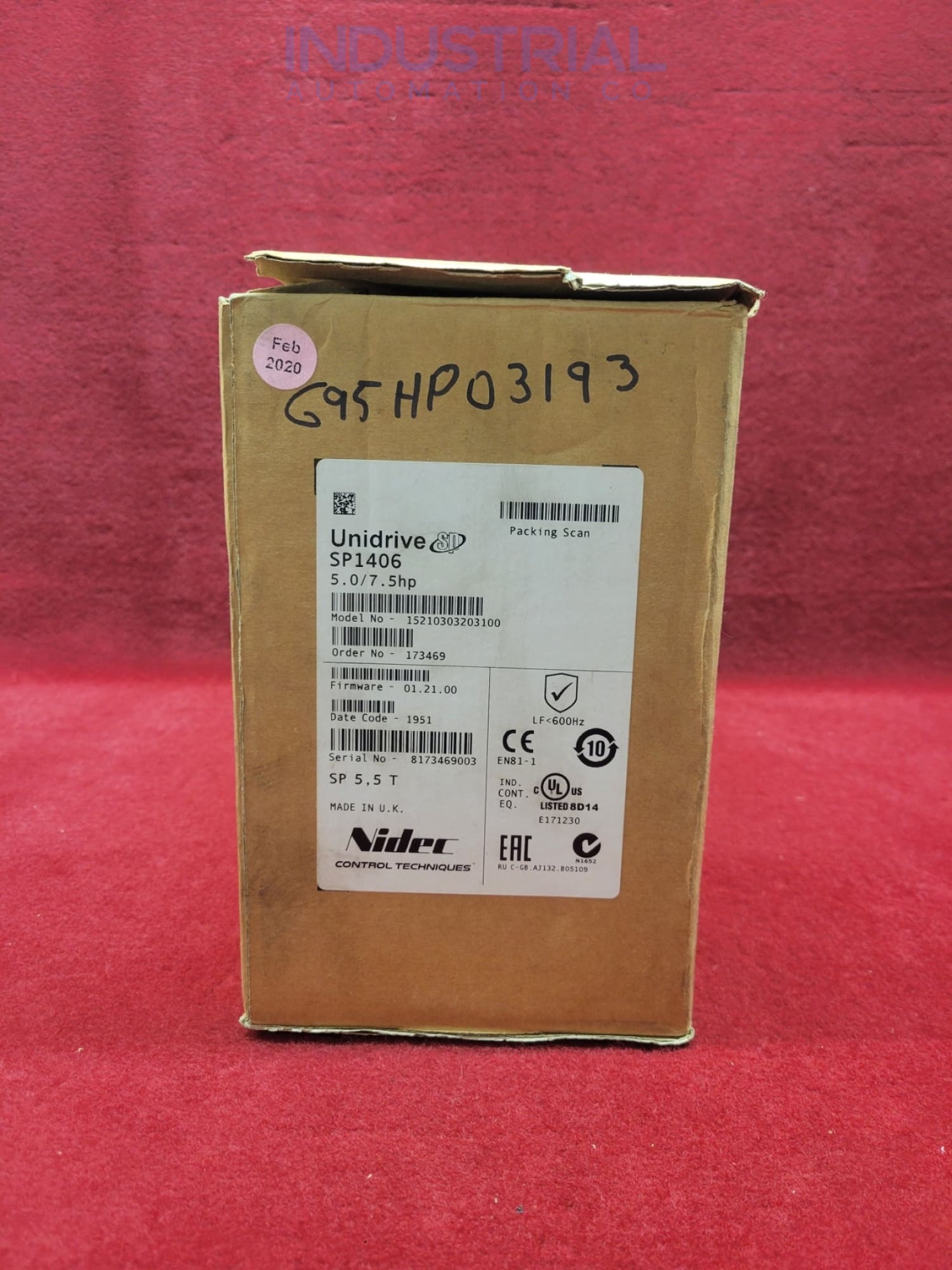

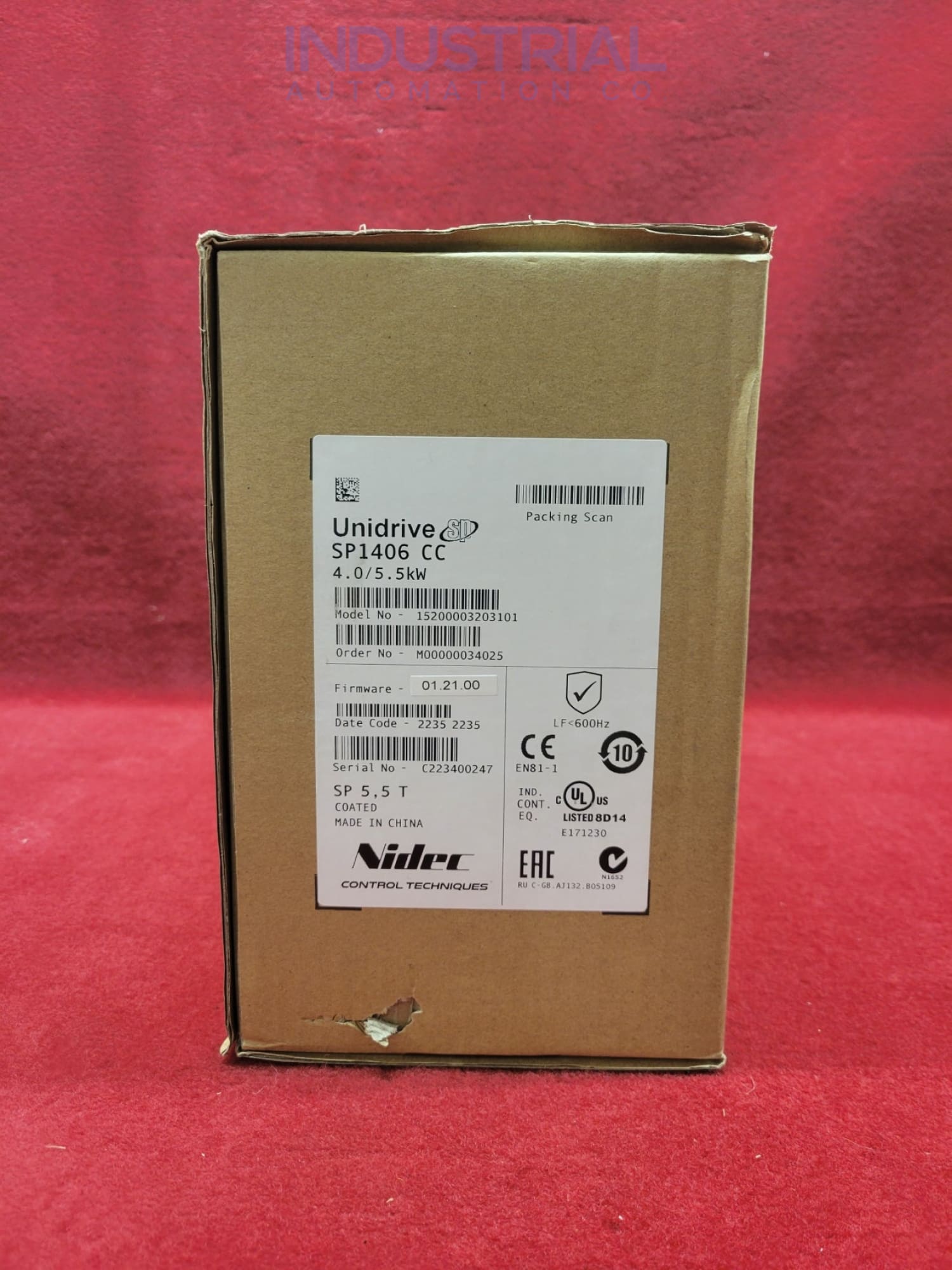

Control Techniques SP1406

Control Techniques SP1406

The Control Techniques SP1406 is a high-performance AC servo drive designed to deliver precise control and reliable operation in various industrial applications. As part of the Unidrive SP series, the SP1406 combines advanced features and robust construction.

This drive supports multiple configurations, offering flexibility and efficiency for different motor control needs. It integrates seamlessly with various feedback devices and control systems, ensuring optimal performance and energy efficiency.

Technical Description:

The SP1406 drive operates with a continuous input current of 13.4 A for single-phase and 16 A for three-phase applications. It utilizes fuses rated at 15 A according to IEC gG standards and UL specifications.

The recommended cable size for input connections is 2.5 mm², while output connections require 1.5 mm² cables, complying with both EN60204 and UL508C standards. This ensures safe and efficient power transmission under different operational conditions.

The drive's maximum continuous output current is 11 A on normal duty and 9.5 A on heavy duty. This capability supports motor power ratings of up to 5.5 kW (7.5 hp) at 220 V for normal duty and 4.0 kW (5.0 hp) at 230 V for heavy-duty operations. These specifications highlight the drive's versatility and ability to handle various load requirements efficiently.

Features and Applications:

The SP1406 is equipped with advanced control features, making it suitable for a wide range of applications. It supports various feedback devices, including encoders and resolvers, which enhance precision and responsiveness. The drive's robust construction ensures reliable performance even in harsh industrial environments, while its compact design facilitates easy integration into existing systems.

This servo drive is ideal for applications requiring high torque and precise speed control, such as CNC machines, robotics, and automated assembly lines. Its ability to handle both normal and heavy-duty operations makes it a versatile solution for different industrial needs.

Standard Operating Precautions:

When installing and operating the SP1406, it is essential to follow standard safety precautions to ensure safe and efficient operation. Always disconnect the AC supply using an approved isolation device before servicing the drive. The capacitors within the drive can retain a potentially lethal charge even after the supply has been disconnected, so it is crucial to wait at least ten minutes before accessing internal components.

Ensure that the drive is installed in a suitable enclosure to protect against environmental hazards. For installations in the USA, a NEMA 12 enclosure is recommended, while installations outside the USA should comply with IEC 62109-1 standards. Proper ventilation must be maintained to prevent overheating, and any openings should be sealed with appropriate materials to avoid fire hazards.

Frequently Asked Questions:

What is the input current requirement for the SP1406?

The SP1406 requires a continuous input current of 13.4 A for single-phase applications. It requires 16 A for three-phase applications.

What are the cable size requirements for the SP1406?

The recommended cable size for input connections is 2.5 mm². Output connections require 1.5 mm² cables.

What are the environmental requirements for the SP1406 installation?

Install the SP1406 in a suitable enclosure. Use a NEMA 12 enclosure for installations in the USA. For installations outside the USA, comply with IEC 62109-1 standards.
