Bosch Rexroth Indramat MHD090B-035-PG0-UN
SKU: MHD090B-035-PG0-UN-R
We have 2 in stock
Estimated delivery: September 8th - September 10th
Order for next-day shipment.
- Regular price
-
$2,990.00
- Sale price
- $2,990.00
IAC Certified Refurbished
$2,990
2 in stock
Ships today
Description

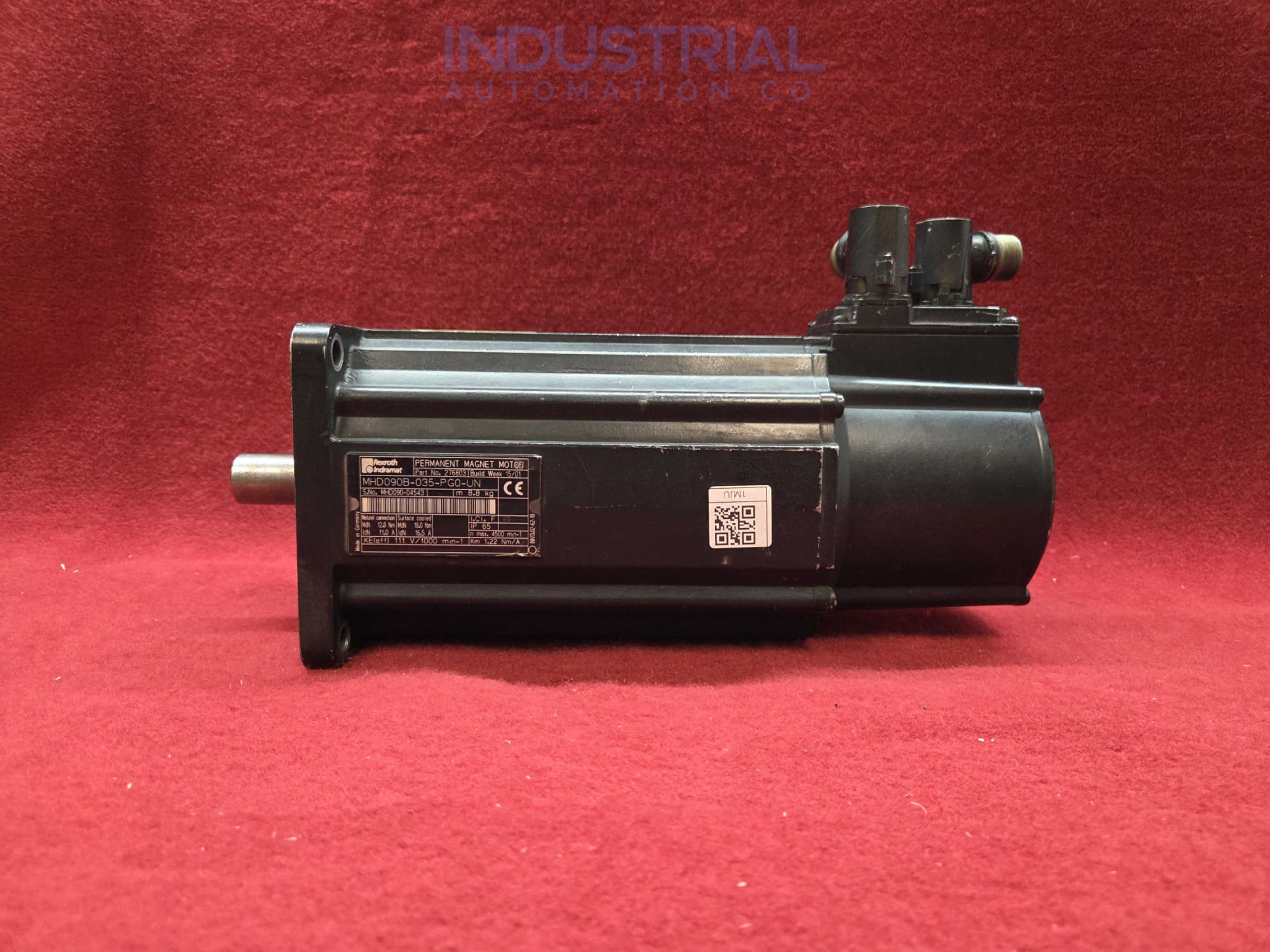

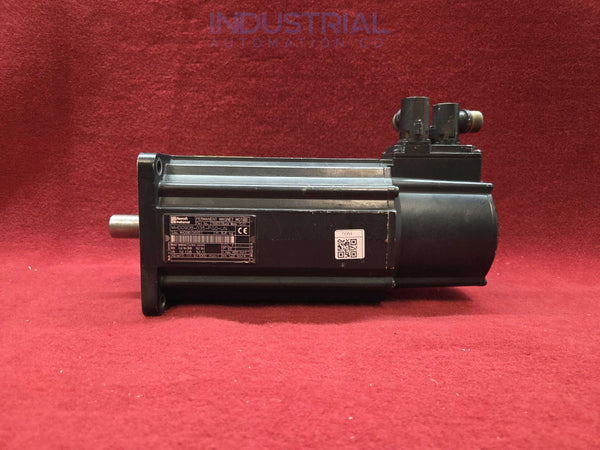

The Bosch Rexroth Indramat MHD090B-035-PG0-UN is a permanent-magnet AC synchronous servo motor from the MHD series, frame size 090, frame length B, winding code 035. MHD motors integrate digital feedback for use with Indramat HDS, HDD, and DIAX drive controllers on machine tools and production machinery.
This variant includes an integrated multiturn absolute encoder, a keyed shaft, and a shaft sealing ring, without holding brake.
Technical Specifications
| Manufacturer | Bosch Rexroth Indramat |
| Series | MHD |
| Type | AC synchronous servo motor |
| Rated Voltage | 600 VAC |
| Current | 11-16.5 A |
| Torque | 12-18 Nm |
| Frame Size | 090, length B |
| Winding Code | 035 |
| Feedback | Integrated multiturn absolute encoder (digital servo feedback) |
| Shaft | With keyway and shaft sealing ring |
| Holding Brake | None |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $449/yr+3 yrs → 5 total $399/yr+5 yrs → 7 total $299/yrBEST VALUE+8 yrs → 10 total $224/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Bosch Rexroth Indramat MHD090B-035-PG0-UN is a permanent-magnet AC synchronous servo motor from the MHD series, frame size 090, frame length B, winding code 035. MHD motors integrate digital feedback for use with Indramat HDS, HDD, and DIAX drive controllers on machine tools and production machinery.
This variant includes an integrated multiturn absolute encoder, a keyed shaft, and a shaft sealing ring, without holding brake.
Technical Specifications
Manufacturer Bosch Rexroth Indramat Series MHD Type AC synchronous servo motor Rated Voltage 600 VAC Current 11-16.5 A Torque 12-18 Nm Frame Size 090, length B Winding Code 035 Feedback Integrated multiturn absolute encoder (digital servo feedback) Shaft With keyway and shaft sealing ring Holding Brake None -
