Benshaw VFD-RSI-002-GM2-4C
SKU: VFD-RSI-002-GM2-4C
We have 44 in stock
Estimated delivery: June 5th - June 7th
Order for next-day shipment.
- Regular price
-
$419.90
- Sale price
- $419.90
New
$419.90
44 in stock
Ships today
Description

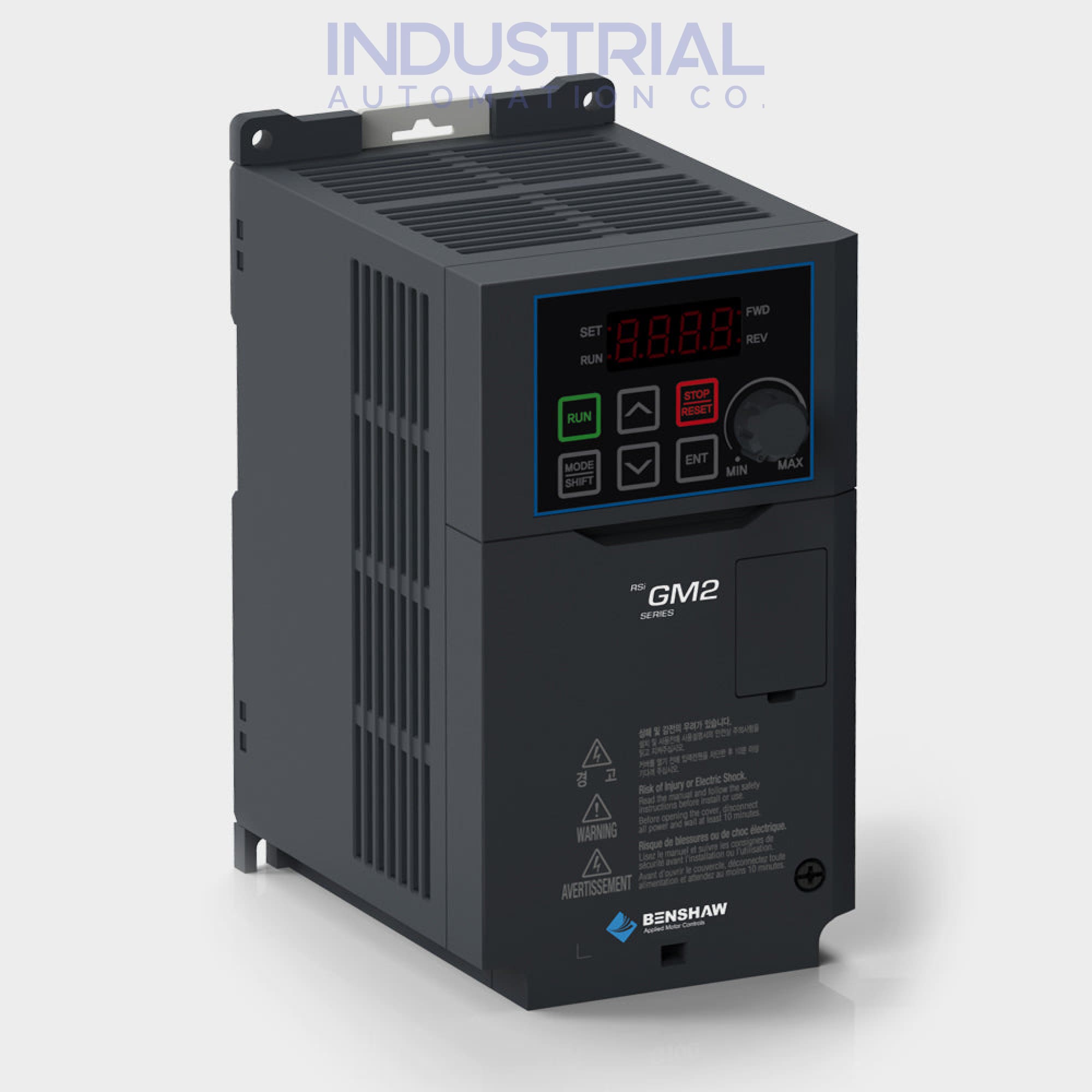

Benshaw GM2 Series Multi-Purpose Micro Drive (2HP, 460V)
Sensorless vector variable frequency micro drive featuring a rugged, compact, protected chassis. Dual rated for both normal duty (120%) and heavy duty (150%) applications. Flexible programmable inputs / outputs are included that address the majority of control function requirements. Normal Duty: 2HP 480VHeavy Duty: 1HP 480V
-
Buying Options
-
Description
Benshaw GM2 Series Multi-Purpose Micro Drive (2HP, 460V)
Sensorless vector variable frequency micro drive featuring a rugged, compact, protected chassis. Dual rated for both normal duty (120%) and heavy duty (150%) applications. Flexible programmable inputs / outputs are included that address the majority of control function requirements. Normal Duty: 2HP 480VHeavy Duty: 1HP 480V
-
Specifications
Technical Specifications
Benshaw’s GM2 Series Variable Frequency Drive is a rugged, yet compact protected chassis (IP20) drive solution for low horsepower AC motor applications. Dual rated for both normal duty (120%) and heavy duty (150%) applications. Standard V/Hz. operation or Sensorless Vector control for those demanding applications. The GM2 Series VFD offers the flexibe programmable I/O.
GM2 Series VFD’s include: V/Hz control or sensorless vector control, built-in EMC filter (480V only), Modbus RTU and integral brake IGBT. Options include a remote keypad, Extended I/O card and conduit box (to achieve UL Type 1 rating).Communication protocols include Modbus-RTU (standard) and optional Ethernet/IP & Modbus-TCP card.
Key Features
Dual Rated, Normal Duty (120% OL / 1 min.) and Heavy Duty (150% OL / 1 min.)
V/Hz. or Sensorless Vector Control
IP20 Protected Chassis (UL Type 1 achieved with optional Conduit Box)
Internal Brake IGBT
Built in Potentiometer for local speed control
EMC Filter (480V)
-
