Benshaw R2CB-150A-150F-3P-NF-FTU
SKU: R2CB-150A-150F-3P-NF-FTU
We have 562 in stock
Estimated delivery: September 6th - September 8th
Order for next-day shipment.
- Regular price
-
$453.90
- Sale price
- $453.90
New
$453.90
562 in stock
Ships today
Description

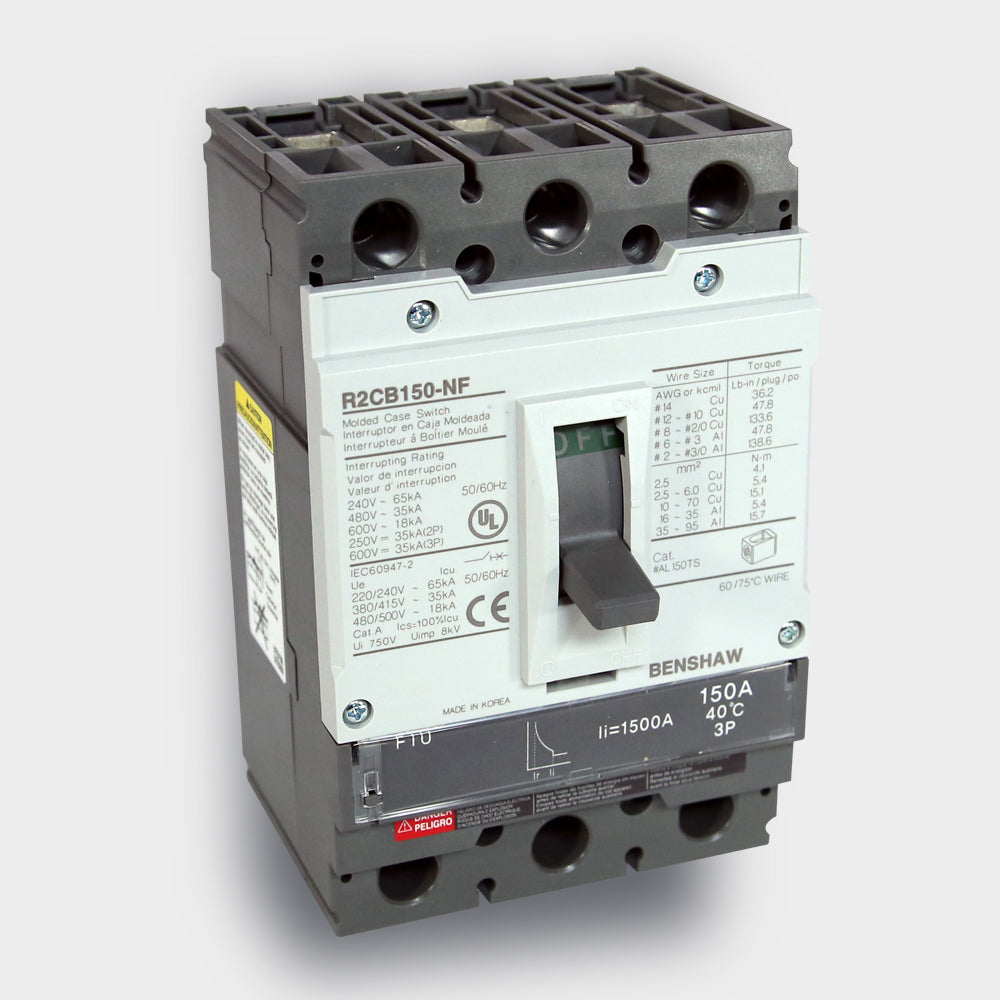

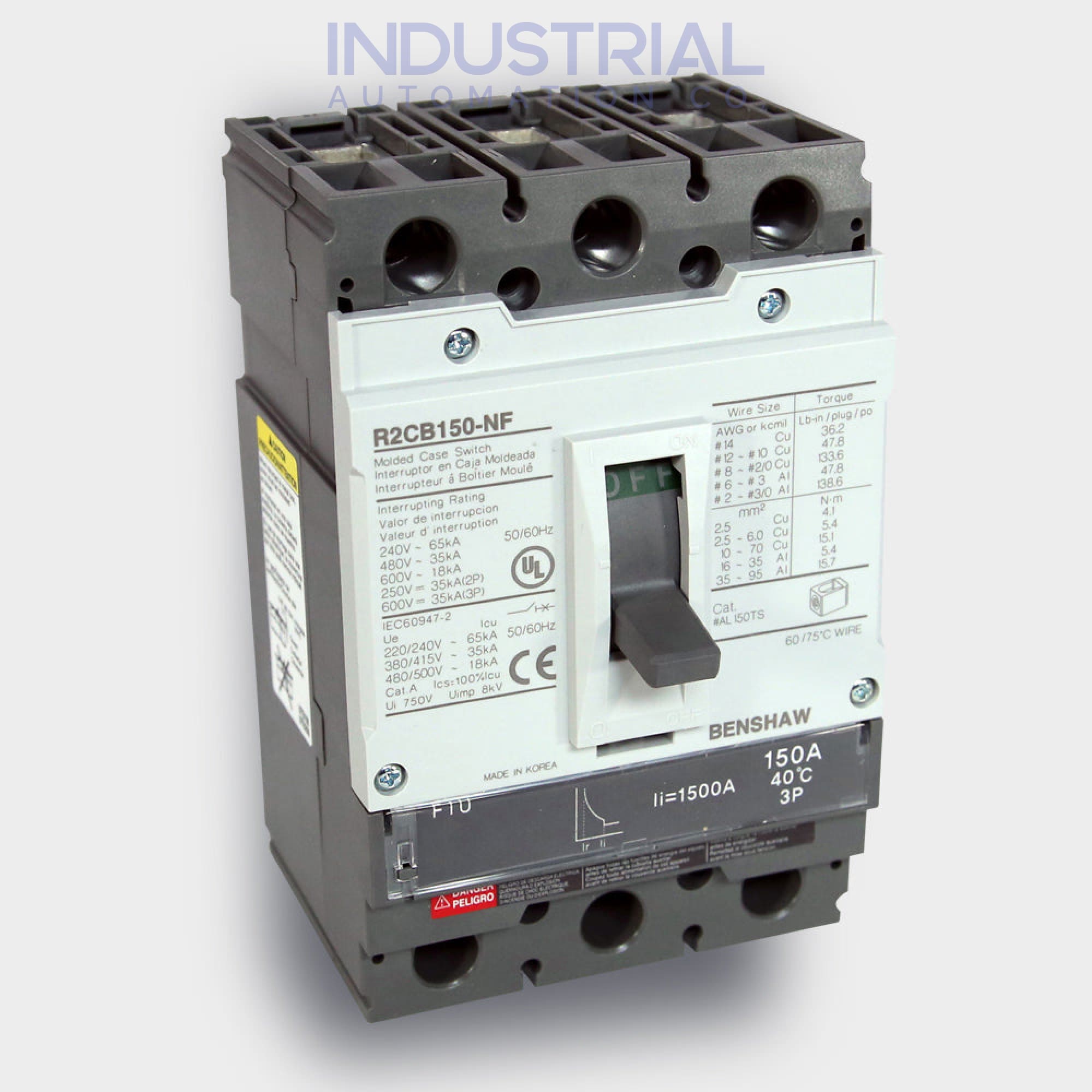

The Benshaw R2CB-150A-150F-3P-NF-FTU is a 3-pole molded case circuit breaker from the R2CB series, rated 150 A on a 150 A frame at 600 VAC, with a fixed thermal and fixed magnetic trip unit (FTU) and an interrupting rating of 35 kAIC at 480 VAC. Line and load lugs and mounting hardware are included.
R2CB breakers are used for branch circuit and motor circuit protection in Benshaw starter assemblies and general industrial control panels, with multiple fault-level options to match the available fault current of the installation.
Technical Specifications
| Series | Benshaw R2CB |
| Type | Molded case circuit breaker |
| Rated current | 150 A |
| Frame size | 150 A frame |
| Poles | 3 |
| Rated voltage | 600 VAC |
| Trip unit | Fixed thermal / fixed magnetic (FTU trip unit) |
| Fault level | N, normal fault |
| Interrupting rating | 35 kAIC at 480 VAC |
| Included | Line and load lugs, mounting hardware |
-
Buying Options
-
Description
The Benshaw R2CB-150A-150F-3P-NF-FTU is a 3-pole molded case circuit breaker from the R2CB series, rated 150 A on a 150 A frame at 600 VAC, with a fixed thermal and fixed magnetic trip unit (FTU) and an interrupting rating of 35 kAIC at 480 VAC. Line and load lugs and mounting hardware are included.
R2CB breakers are used for branch circuit and motor circuit protection in Benshaw starter assemblies and general industrial control panels, with multiple fault-level options to match the available fault current of the installation.
Technical Specifications
Series Benshaw R2CB Type Molded case circuit breaker Rated current 150 A Frame size 150 A frame Poles 3 Rated voltage 600 VAC Trip unit Fixed thermal / fixed magnetic (FTU trip unit) Fault level N, normal fault Interrupting rating 35 kAIC at 480 VAC Included Line and load lugs, mounting hardware -
Specifications
Technical Specifications
Benshaw molded case thermal magnetic circuit breakers protect low voltage electrical systems from damage that may occur as a result of short circuit and/or overload conditions.
-
