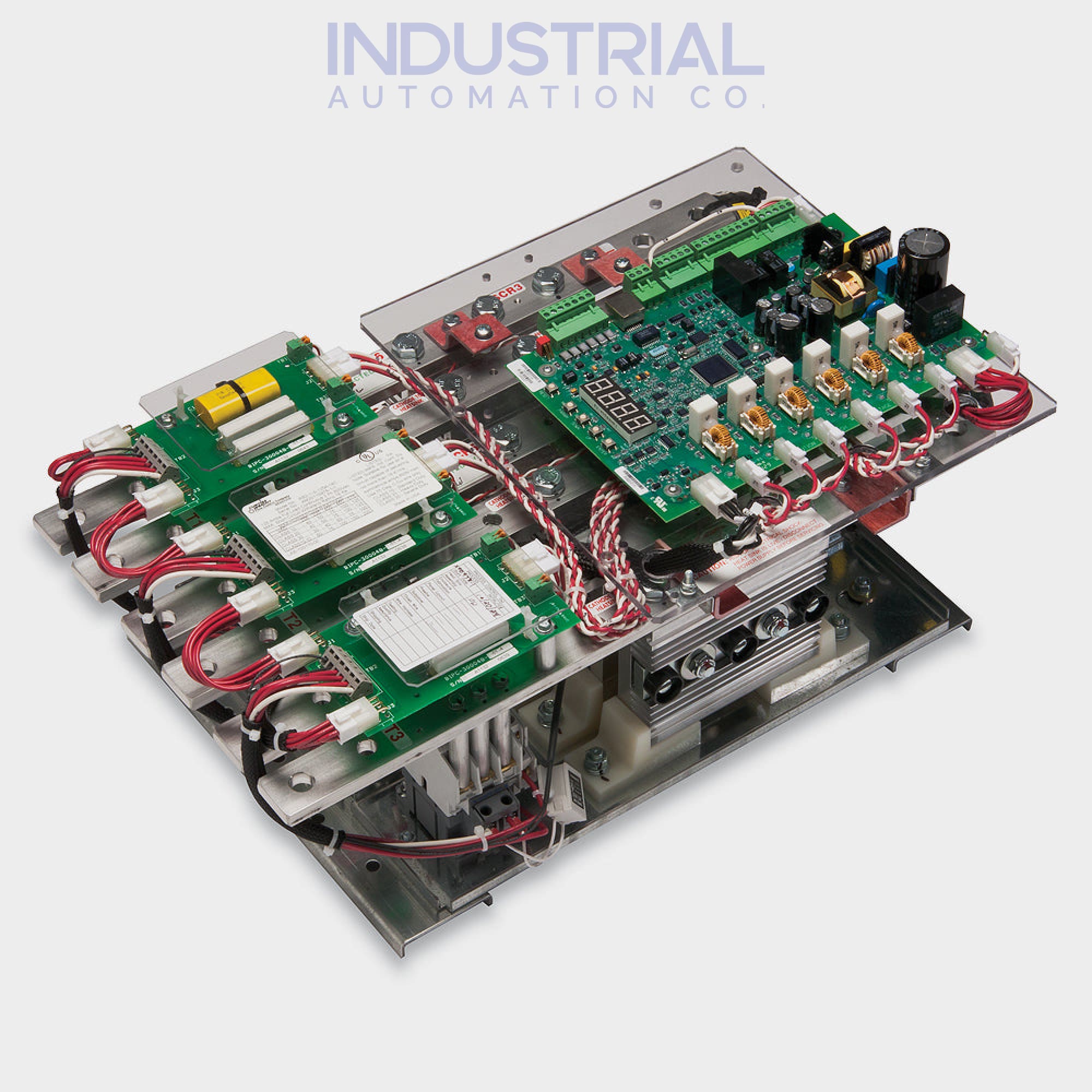

Benshaw RB2-1-S-477A-17C
SKU: RB2-1-S-477A-17C
4 in stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $7,873.55
- Sale price
- $7,873.55
New
$7,873.55
In Stock
Description
The Benshaw RB2-1-S-477A-17C is an open chassis reduced voltage soft starter from the RB2 series, rated up to 477 A and suitable for three phase motors on 240 to 575 VAC supplies. It uses Benshaw MX2 control technology and includes a run duty integral bypass contactor, which closes once the motor is at speed to carry the running current and reduce heat dissipation.
RB2 soft starters are used to limit inrush current and mechanical shock when starting pumps, fans, compressors, conveyors, and similar three phase motor loads. The open chassis construction is intended for mounting inside a customer supplied enclosure or control panel.
Technical Specifications
| Manufacturer | Benshaw |
| Series | RB2 Soft Starters |
| Part Number | RB2-1-S-477A-17C |
| Type | Reduced voltage soft starter |
| Control Technology | Benshaw MX2 |
| Maximum Current Rating | 477 A |
| Voltage Range | 240 to 575 VAC, three phase |
| Bypass | Run duty integral bypass |
| Construction | Open chassis |
| Frame Size | 17C |
-
Buying Options
-
Description
The Benshaw RB2-1-S-477A-17C is an open chassis reduced voltage soft starter from the RB2 series, rated up to 477 A and suitable for three phase motors on 240 to 575 VAC supplies. It uses Benshaw MX2 control technology and includes a run duty integral bypass contactor, which closes once the motor is at speed to carry the running current and reduce heat dissipation.
RB2 soft starters are used to limit inrush current and mechanical shock when starting pumps, fans, compressors, conveyors, and similar three phase motor loads. The open chassis construction is intended for mounting inside a customer supplied enclosure or control panel.
Technical Specifications
Manufacturer Benshaw Series RB2 Soft Starters Part Number RB2-1-S-477A-17C Type Reduced voltage soft starter Control Technology Benshaw MX2 Maximum Current Rating 477 A Voltage Range 240 to 575 VAC, three phase Bypass Run duty integral bypass Construction Open chassis Frame Size 17C -
Specifications
Technical Specifications
Benshaw RB2 Open Chassis Soft Starters are field proven, rugged, solid state starters designed for use in a wide range of industrial applications. Select based on your application (Standard Duty, Heavy Duty or Severe Duty) and voltage ratings from 208-575VAC up to 838A.
The RB2 soft starter includes an integral bypass contactor in a modular design with separate poles for each phase, allowing for ease of maintenance. Benshaw’s MX2 control technology provides basic motor protection with adjustable overload settings. It also provides user adjustable motor ramp profiles that can be tailored to the motor load. The soft starter can be programmed using a board-mounted LED keypad, Modbus register mapping, or optional remote mount LCD keypad.
RB2 open chassis soft starters are available for immediate shipment and include Benshaw’s exclusive three-year warranty.
Standard Duty: 200HP, 230V / 400HP, 460V / 500HP, 575V
-
