Benshaw MX4PB-SD-200-4-4-HB
SKU: MX4PB-SD-200-4-4-HB
3 in stock
Authorized-brand item: ships per the manufacturer's lead time.
- Regular price
- $8,826.40
- Sale price
- $8,826.40
New
$8,826.40
In Stock
Description

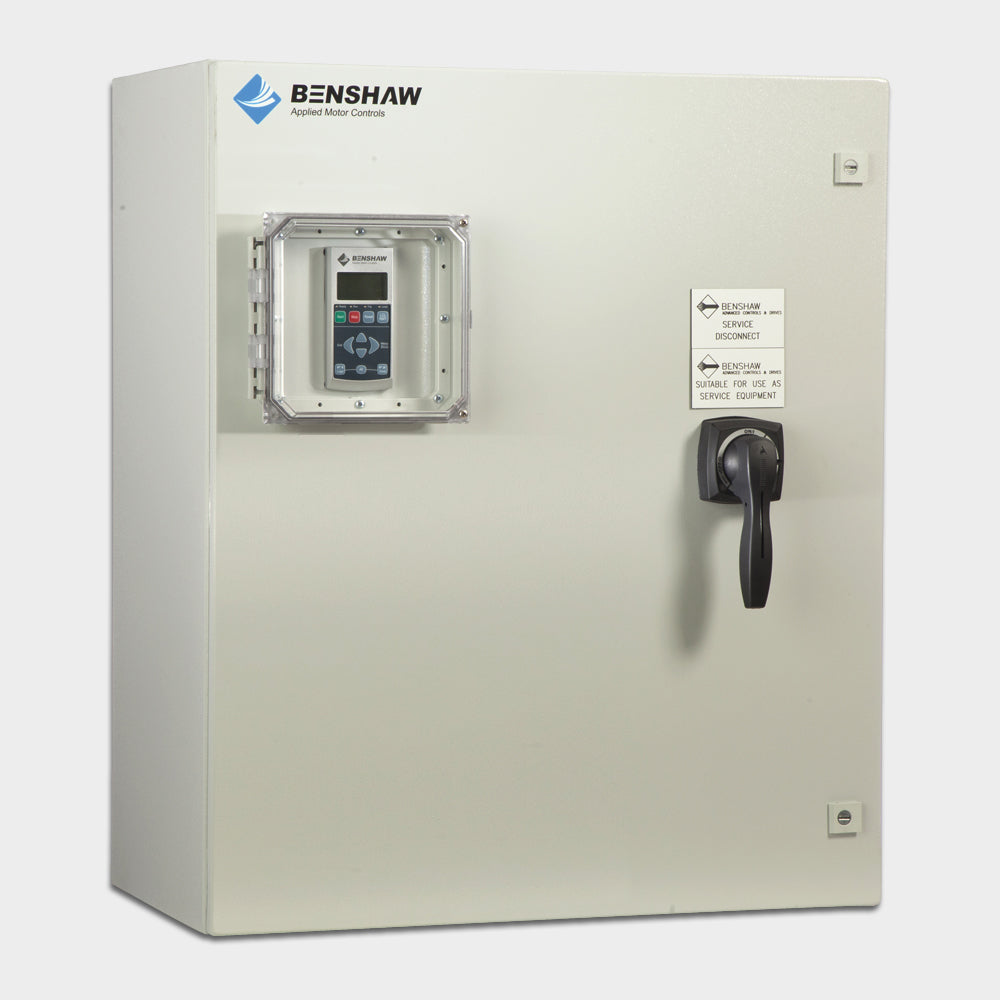

The Benshaw MX4PB-SD-200-4-4-HB is an MX4PB combination soft starter built on EMX4i soft start technology, rated 200 HP at 460 V standard duty with a maximum current of 240 A. It is a complete enclosed starting package: solid state soft starter with run duty integral bypass, 400 A circuit breaker, and a NEMA 4 enclosure, with a 65 kA short circuit rating.
The MX4PB is intended as a wall or floor mounted, ready-to-wire motor starting solution for pumps, fans, compressors, and similar three-phase loads where a coordinated breaker, soft starter, and enclosure are wanted in a single assembly.
Technical Specifications
| Series | Benshaw MX4PB |
| Type | Combination soft starter (EMX4i technology) |
| Motor rating | 200 HP at 460 V (standard duty) |
| Maximum current | 240 A |
| Circuit breaker | 400 A |
| Short circuit rating | 65 kA |
| Bypass | Run duty integral bypass |
| Enclosure | NEMA 4 |
-
Buying Options
-
Description
The Benshaw MX4PB-SD-200-4-4-HB is an MX4PB combination soft starter built on EMX4i soft start technology, rated 200 HP at 460 V standard duty with a maximum current of 240 A. It is a complete enclosed starting package: solid state soft starter with run duty integral bypass, 400 A circuit breaker, and a NEMA 4 enclosure, with a 65 kA short circuit rating.
The MX4PB is intended as a wall or floor mounted, ready-to-wire motor starting solution for pumps, fans, compressors, and similar three-phase loads where a coordinated breaker, soft starter, and enclosure are wanted in a single assembly.
Technical Specifications
Series Benshaw MX4PB Type Combination soft starter (EMX4i technology) Motor rating 200 HP at 460 V (standard duty) Maximum current 240 A Circuit breaker 400 A Short circuit rating 65 kA Bypass Run duty integral bypass Enclosure NEMA 4 -
Specifications
Technical Specifications
Benshaw MX4PB Packaged Combo Starters are stocked as full featured, service entrance rated, combination starters. Choose either a Standard Duty or a Heavy Duty models based on your application, operating voltage, motor horsepower and FLA and we will do the rest.
Benshaw combo starters are based on the advanced EMX4i chassis soft starter chassis and include a circuit breaker with door-mounted rotary disconnect operator, run duty bypass, 120V control power transformer and door mounted keypad. Units are provided in NEMA4/12 enclosures (or 3R with option adder) 65K.
Standard stock models are available for immediate shipment (480V ratings) 65K.
Includes Benshaw’s exclusive three-year warranty.
-
