Benshaw MVRXE181500416012
SKU: MVRXE181500416012
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description

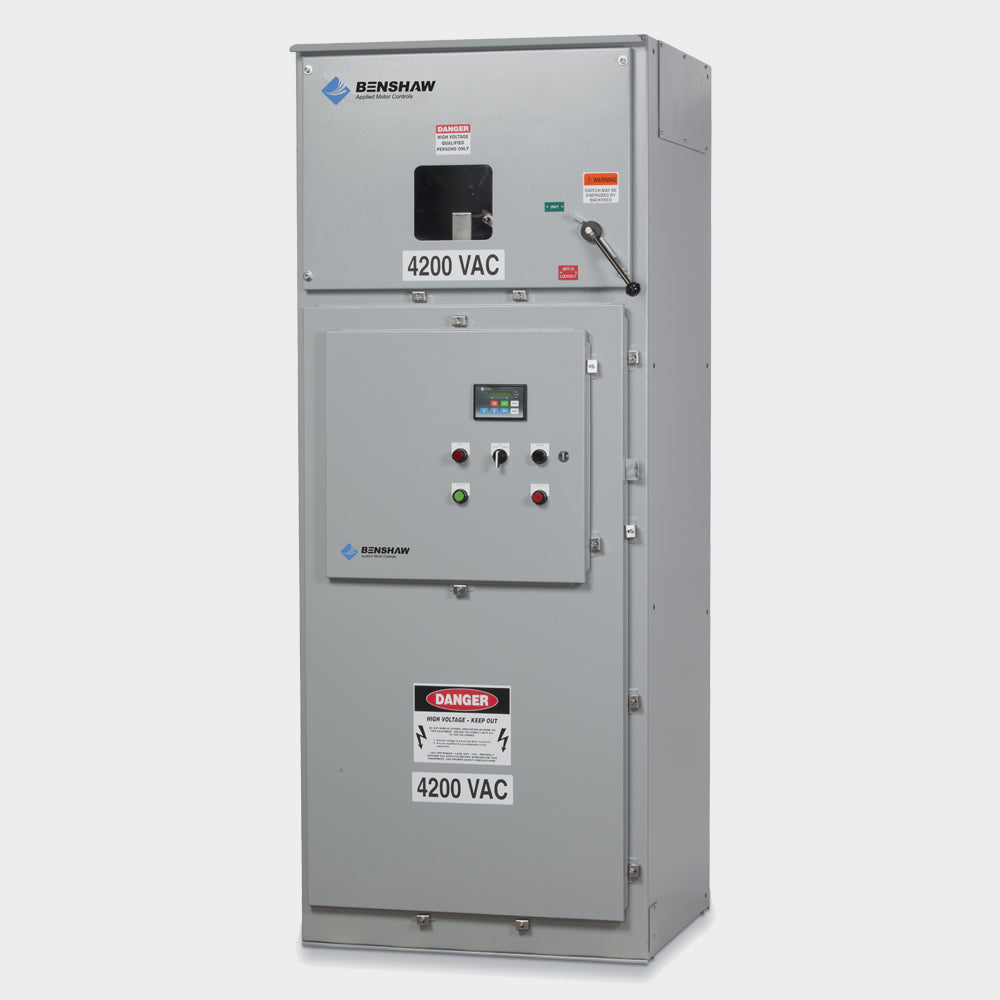

Benshaw MVRXE Series Dual Redundant Solid State Soft Starter (1500HP, 4160V, NEMA 12 Enclosure)
Severe duty medium voltage solid state starter with emergency across the line bypass and main fusible load break disconnect.Severe Duty: 1500HP 4160V
-
Buying Options
-
Description
Benshaw MVRXE Series Dual Redundant Solid State Soft Starter (1500HP, 4160V, NEMA 12 Enclosure)
Severe duty medium voltage solid state starter with emergency across the line bypass and main fusible load break disconnect.Severe Duty: 1500HP 4160V
-
Specifications
Technical Specifications
Benshaw’s advanced MVRXE Dual Redundant Solid State Soft Starter is a microprocessor-controlled, reduced voltage soft starter for three phase induction motors. Designed for severe duty applications, the MVRXE Soft Starter provides reduced voltage starting for normal operation and full voltage emergency starting as a back-up with complete motor protection at the flip of a switch.
MVRXE soft starters are supplied as complete E2 starters with load break isolation switch, Class “R†motor fuses, an inline vacuum contactor and fully rated vacuum bypass contactor. All MVRXE medium voltage soft starters include Benshaw’s exclusive three-year warranty with the purchase of commissioning/startup service.
Standard Features
- Solid state reduced voltage starting
- Full voltage ATL
- Emergency backup feature
- NEMA 12 enclosure
- UL 347
- Class E-2 combination
- Class R fusing
- Built-in self test
- Digital protection and metering
- UL zero sequence ground fault
-
