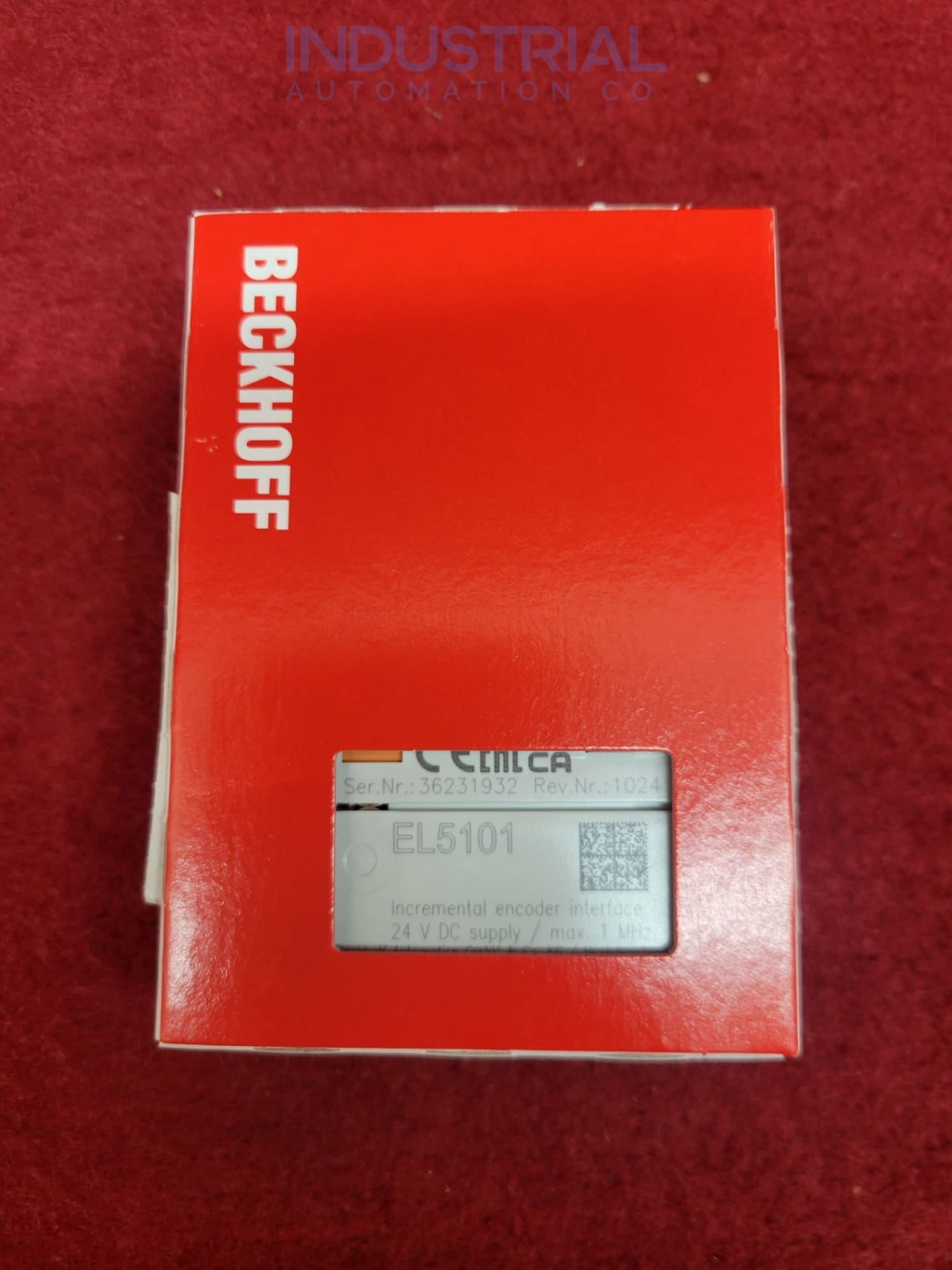

Beckhoff EL5101
SKU: EL5101-FS
We have 1 in stock
Estimated delivery: September 25th - September 27th
Order for next-day shipment.
- Regular price
-
$326.00
- Sale price
- $326.00
New
$326
1 in stock
Ships today
Description
The Beckhoff EL5101 is an incremental encoder interface terminal for the EtherCAT Terminal system. It accepts differential RS422 or single-ended TTL encoder signals (A, B, C tracks) and provides a 16-bit or 32-bit switchable counter, latch input, and gate function for position and speed acquisition.
A 24 V DC / 0.5 A supply for the encoder is available at the terminal, and the interface can also operate as a pulse counter. It is a standard building block for adding position feedback to an EtherCAT I/O station.
Technical Specifications
| Manufacturer | Beckhoff |
| Series | EtherCAT Terminal |
| Function | Incremental encoder interface |
| Encoder signals | Differential RS422 or single-ended TTL |
| Counter | 16/32 bit, switchable |
| Encoder supply | 24 V DC, 0.5 A |
| Operating temperature | -25 to +60 deg C |
| Protection rating | IP20 |
| Mounting | 35 mm DIN rail |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $49/yr+3 yrs → 5 total $43/yr+5 yrs → 7 total $33/yrBEST VALUE+8 yrs → 10 total $24/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Beckhoff EL5101 is an incremental encoder interface terminal for the EtherCAT Terminal system. It accepts differential RS422 or single-ended TTL encoder signals (A, B, C tracks) and provides a 16-bit or 32-bit switchable counter, latch input, and gate function for position and speed acquisition.
A 24 V DC / 0.5 A supply for the encoder is available at the terminal, and the interface can also operate as a pulse counter. It is a standard building block for adding position feedback to an EtherCAT I/O station.
Technical Specifications
Manufacturer Beckhoff Series EtherCAT Terminal Function Incremental encoder interface Encoder signals Differential RS422 or single-ended TTL Counter 16/32 bit, switchable Encoder supply 24 V DC, 0.5 A Operating temperature -25 to +60 deg C Protection rating IP20 Mounting 35 mm DIN rail -
