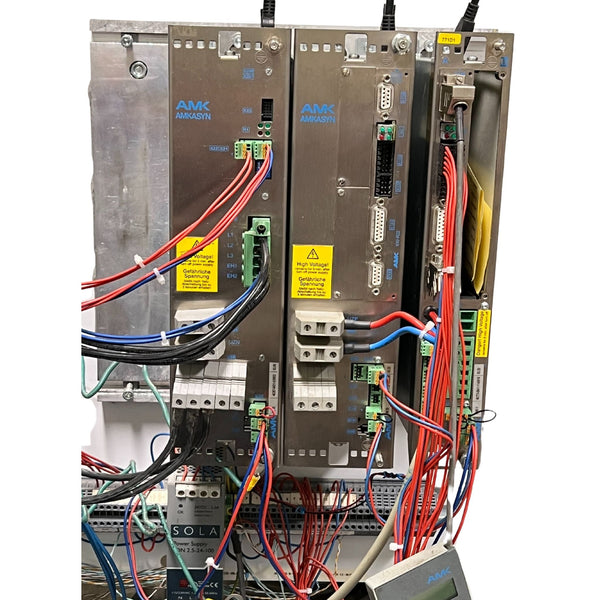

AMK KES 180-0EU

The KES 180-0EU is AMKmotion's most powerful compact power supply module in the KES series, engineered for industrial environments requiring extensive regenerative energy handling and maximum power density. With sinusoidal power regeneration, it ensures low harmonic distortion and grid-friendly operation. This module is ideal for demanding machine systems with high dynamic load changes, offering a peak power capacity of up to 320 kW.

Key Features:
Rated Output Power: 180 kW

Peak Output Power (60s): 320 kW

Input Voltage: 3 x 400–480 V AC ±10%

Line Frequency: 47–63 Hz

Input Current: 270 A

Efficiency: Approx. 98%

Cooling: Cold plate technology

Power Factor: >0.98

Functional Highlights:
Sinusoidal power supply and regeneration for efficient energy use

External brake resistor support: ≥ 5.4 Ω

Comprehensive protection: Mains failure, overcurrent, overtemperature, braking resistor short circuit

Compliance with EN 61000-3-12 for harmonic current limitation (≤15 g for 11 ms)

Communication Interfaces: EtherCAT or ACC bus with integrated UPS for control voltage

Dimensions & Installation:
Module Width: 425 mm

Depth: 228 mm

Weight: 20 kg

Protection Class: IP20 (for cabinet installation)
