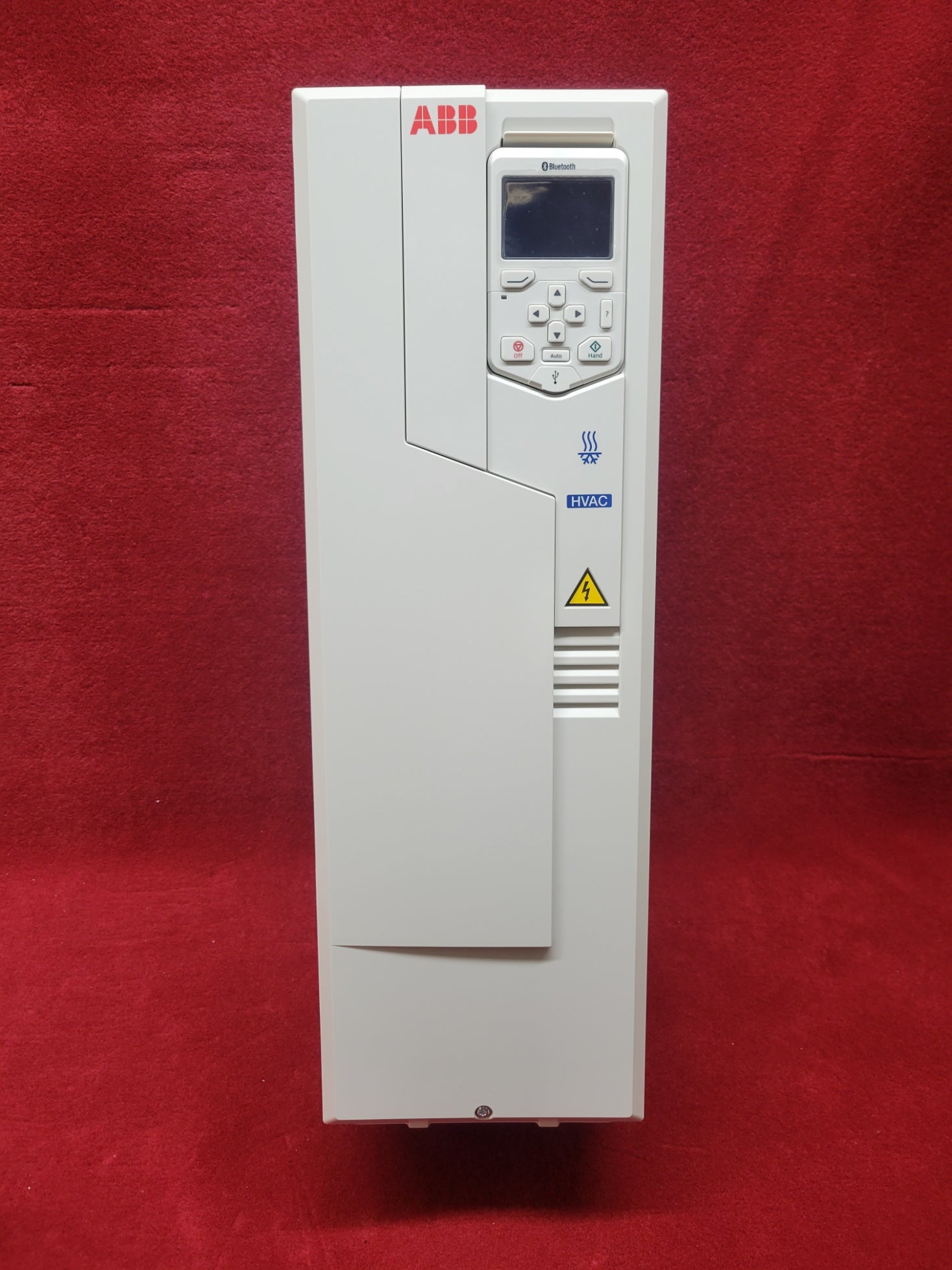

ABB ACH580-01-077A-4
SKU: ACH580-01-077A-4-FS
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
The ABB ACH580-01-077A-4 is a wall-mount ACH580-01 variable frequency drive rated 60 HP (77 A) on 380-480 VAC, 3-phase input. The ACH580 is ABB's current-generation HVAC drive family, used on fans, pumps, cooling towers, and air handling equipment in commercial and institutional buildings.
The ACH580 platform includes the HVAC control panel with Bluetooth option, embedded BACnet MS/TP, Modbus RTU, and Johnson Controls N2 protocols, built-in PID controllers, preprogrammed protection circuits, and dedicated HVAC application macros.
Technical Specifications
| Manufacturer | ABB |
| Series | ACH580 (HVAC drive) |
| Part Number | ACH580-01-077A-4 |
| Power Rating | 60 HP |
| Output Current | 77 A |
| Input Voltage | 380-480 VAC, 3-phase |
| Frame Size | R5 |
| Input Frequency | 50/60 Hz |
| Enclosure | UL Type 1 / IP21, wall mount |
| Communications | BACnet MS/TP, Modbus RTU, Johnson Controls N2 (embedded) |
| Control Panel | HVAC control panel, Bluetooth option |
-
Buying Options
-
Description
The ABB ACH580-01-077A-4 is a wall-mount ACH580-01 variable frequency drive rated 60 HP (77 A) on 380-480 VAC, 3-phase input. The ACH580 is ABB's current-generation HVAC drive family, used on fans, pumps, cooling towers, and air handling equipment in commercial and institutional buildings.
The ACH580 platform includes the HVAC control panel with Bluetooth option, embedded BACnet MS/TP, Modbus RTU, and Johnson Controls N2 protocols, built-in PID controllers, preprogrammed protection circuits, and dedicated HVAC application macros.
Technical Specifications
Manufacturer ABB Series ACH580 (HVAC drive) Part Number ACH580-01-077A-4 Power Rating 60 HP Output Current 77 A Input Voltage 380-480 VAC, 3-phase Frame Size R5 Input Frequency 50/60 Hz Enclosure UL Type 1 / IP21, wall mount Communications BACnet MS/TP, Modbus RTU, Johnson Controls N2 (embedded) Control Panel HVAC control panel, Bluetooth option -
