FANUC A06B-6240-H207
SKU: A06B-6240-H207-NS
1 in stock
Estimated delivery: November 17th - November 19th
Order for next-day shipment.
- Regular price
- $3,897.00
- Sale price
- $3,897.00
New Surplus
$3,897
In Stock
New
Call for Availability
Request a quote
Description

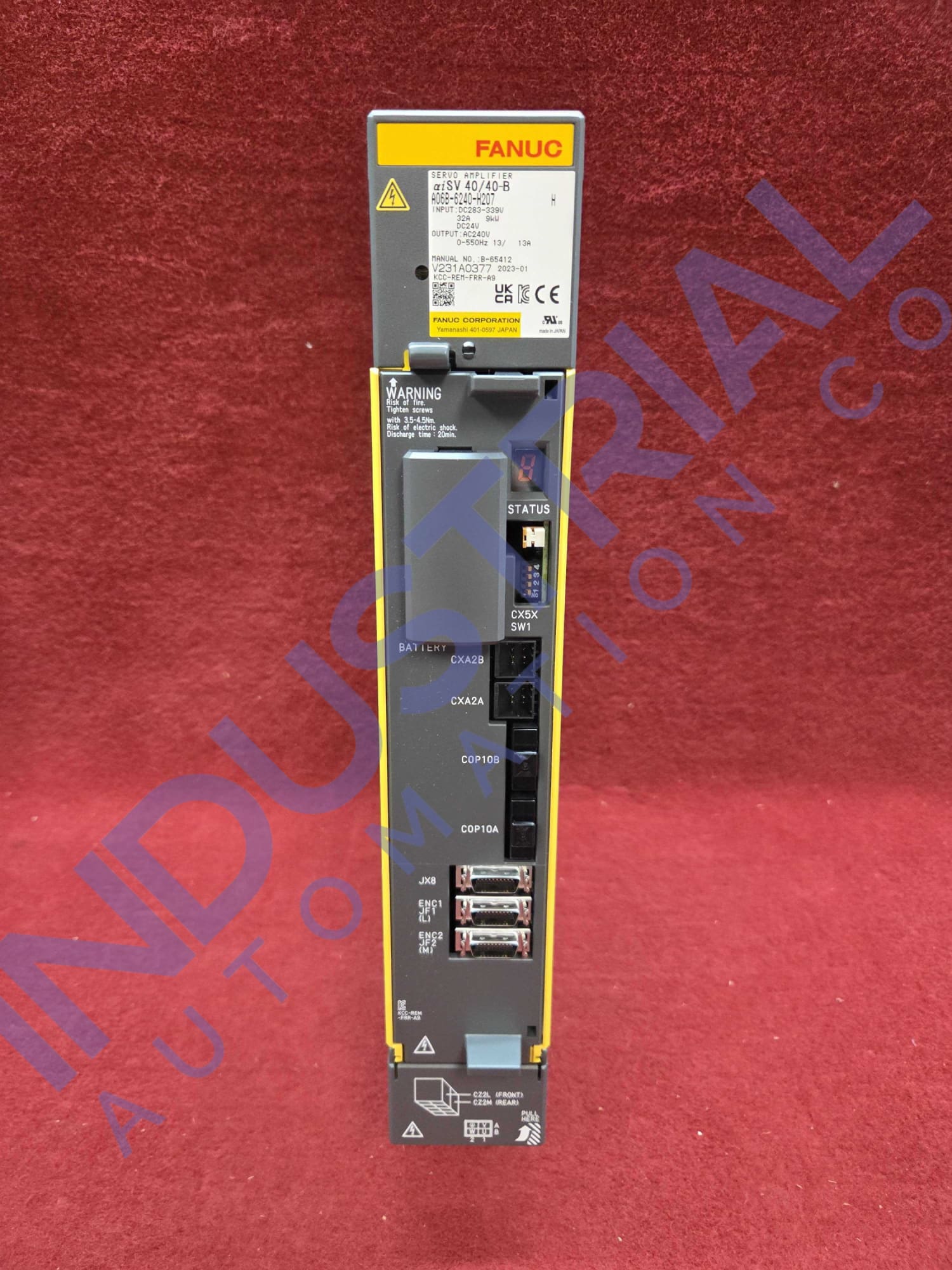

The FANUC A06B-6240-H207 is a dual-axis servo amplifier module, model AiSV 40/40-B, from the Alpha i-B drive generation. It drives two FANUC Alpha i servo motors (40 A class each) from the common DC bus supplied by an Alpha i-B power supply module.
The 40/40 configuration is a common fit for the X and Z axes on lathes and mid-size machining center axes.
Technical Specifications
| Manufacturer | FANUC |
| Series | Alpha i-B (A06B-6240) |
| Model | AiSV 40/40-B |
| Type | Servo amplifier module |
| Axes | 2 |
| Amplifier Class | 40 A / 40 A |
| DC Link Input | 283-339 VDC |
| Typical Application | Feed axis control on FANUC CNC machine tools |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $585/yr+3 yrs → 5 total $520/yr+5 yrs → 7 total $390/yrBEST VALUE+8 yrs → 10 total $292/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The FANUC A06B-6240-H207 is a dual-axis servo amplifier module, model AiSV 40/40-B, from the Alpha i-B drive generation. It drives two FANUC Alpha i servo motors (40 A class each) from the common DC bus supplied by an Alpha i-B power supply module.
The 40/40 configuration is a common fit for the X and Z axes on lathes and mid-size machining center axes.
Technical Specifications
Manufacturer FANUC Series Alpha i-B (A06B-6240) Model AiSV 40/40-B Type Servo amplifier module Axes 2 Amplifier Class 40 A / 40 A DC Link Input 283-339 VDC Typical Application Feed axis control on FANUC CNC machine tools -
Part Number Breakdown
Part number breakdown — A06B-6240-H207
αiSV-B Series Servo Amplifier Module (200-V input)
Amplifier model H207αiSV 40/40-B Specifications
axes 2 axis1RatingA 40 axis2RatingA 40 axis1RatedCurrentArms 13 axis2RatedCurrentArms 13 weightKg 4 Alarm codes (159)
Full troubleshooting reference for this servo amplifier:
- Alarm PS 01 — PS OVERCURRENT (SV0437, SP9030)
- Alarm PS 02 — PS INTERNAL FAN FAILURE (SV0443, SP9059)
- Alarm PS 03 — PS OVERLOAD (SV0431, SP9058)
- Alarm PS 04 — PS LOW VOLT. DC LINK (SV0433, SP9051)
- Alarm PS 05 — PS PRE-CHARGE FAILURE (SV0442, SP9033)
- Alarm PS 06 — PS LOW VOLT. CONTROL (SV0432, SP9111)
- Alarm PS 07 — PS OVER VOLT. DC LINK (SV0439, SP9011)
- Alarm PS 10 — PS EXTERNAL FAN FAILURE (SV0606, SP9113)
- Alarm PS 14 — PS IMPROPER INPUT POWER (SV0607, SP9004)
- Alarm PS 15 — PS SOFT THERMAL (SV0024, SP9204)
- Alarm PS 23 — PS ILLEGAL PARAMETER (SV0031, SP9211)
- Alarm PS 24 — PS HARDWARE ERROR (SV0034, SP9212)
See all 159 alarm codes for this series →
